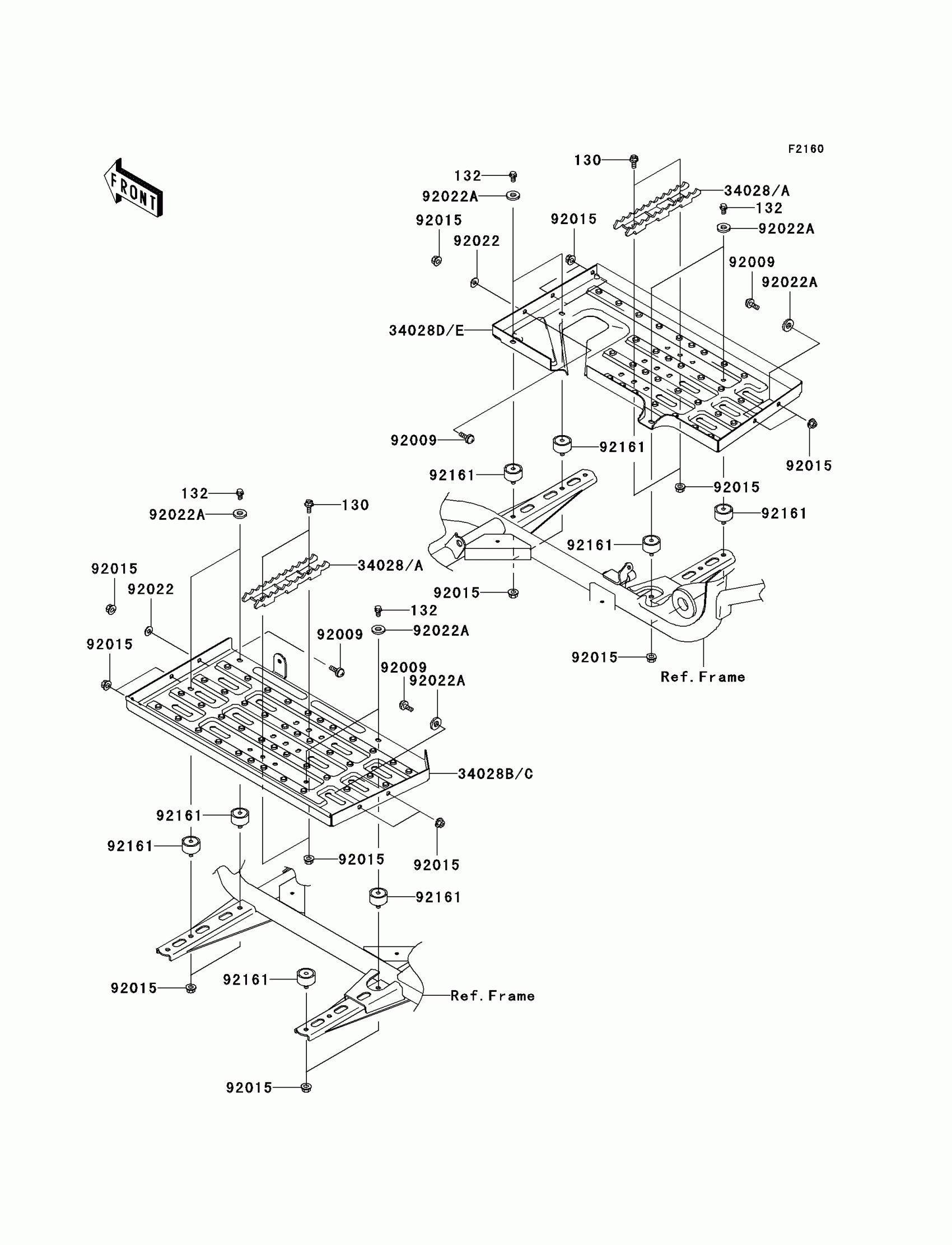

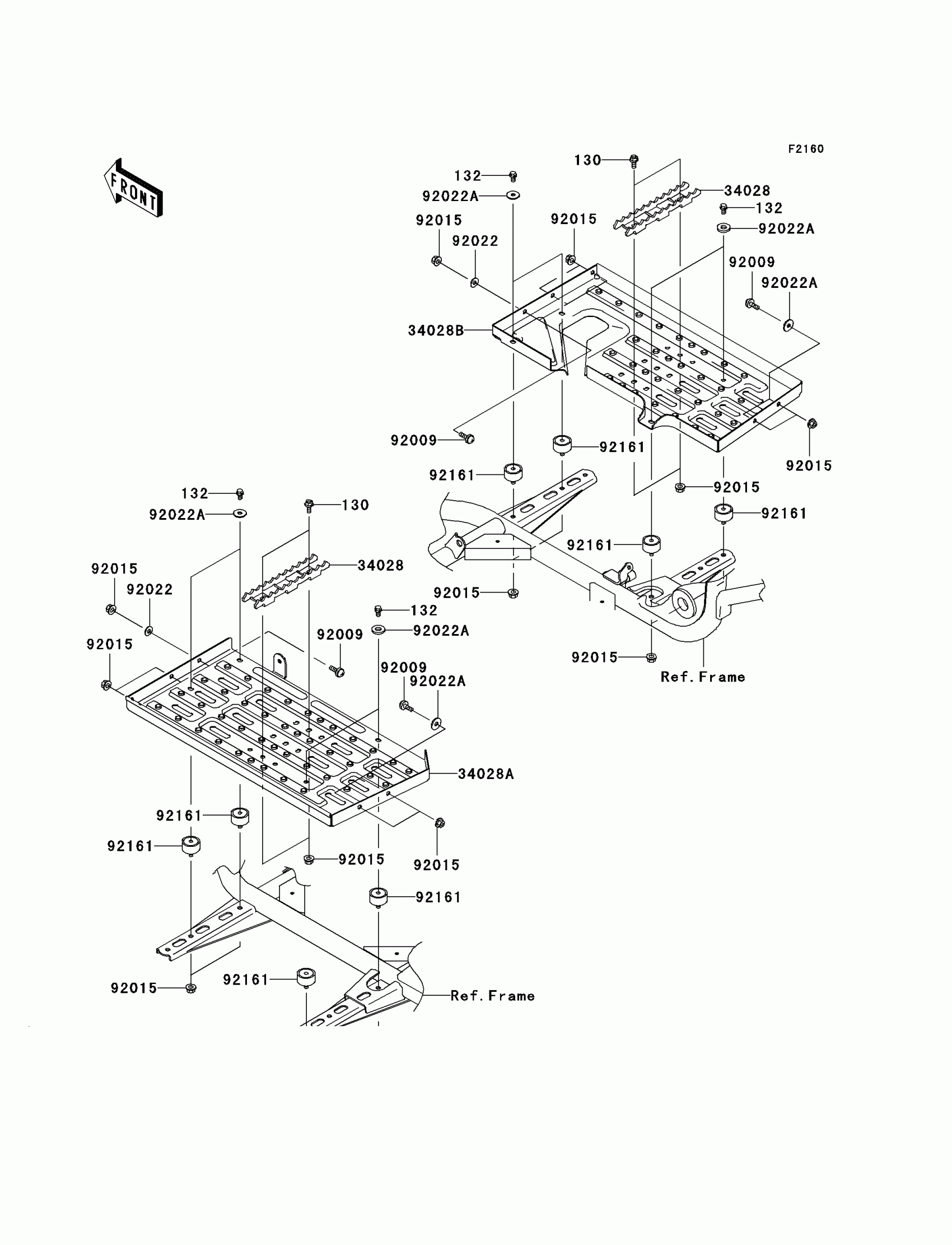

Kawasaki Prairie 360 4X4 Realtree APG HD Footrests Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BB0614

$1.84

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$1.84

34028

STEP,FOOT PEG,T.BLACK

34028-0063-388

$7.29

34028C

STEP,LH,T.BLACK

34028-7511-388

$54.83

34028E

STEP,RH,T.BLACK

34028-7512-388

$54.83

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.63

92022

WASHER,6.5X16X1.0

92022-1093

$1.55

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.50

92161

DAMPER,FLOOR BOARD

92161-7505

$6.47
