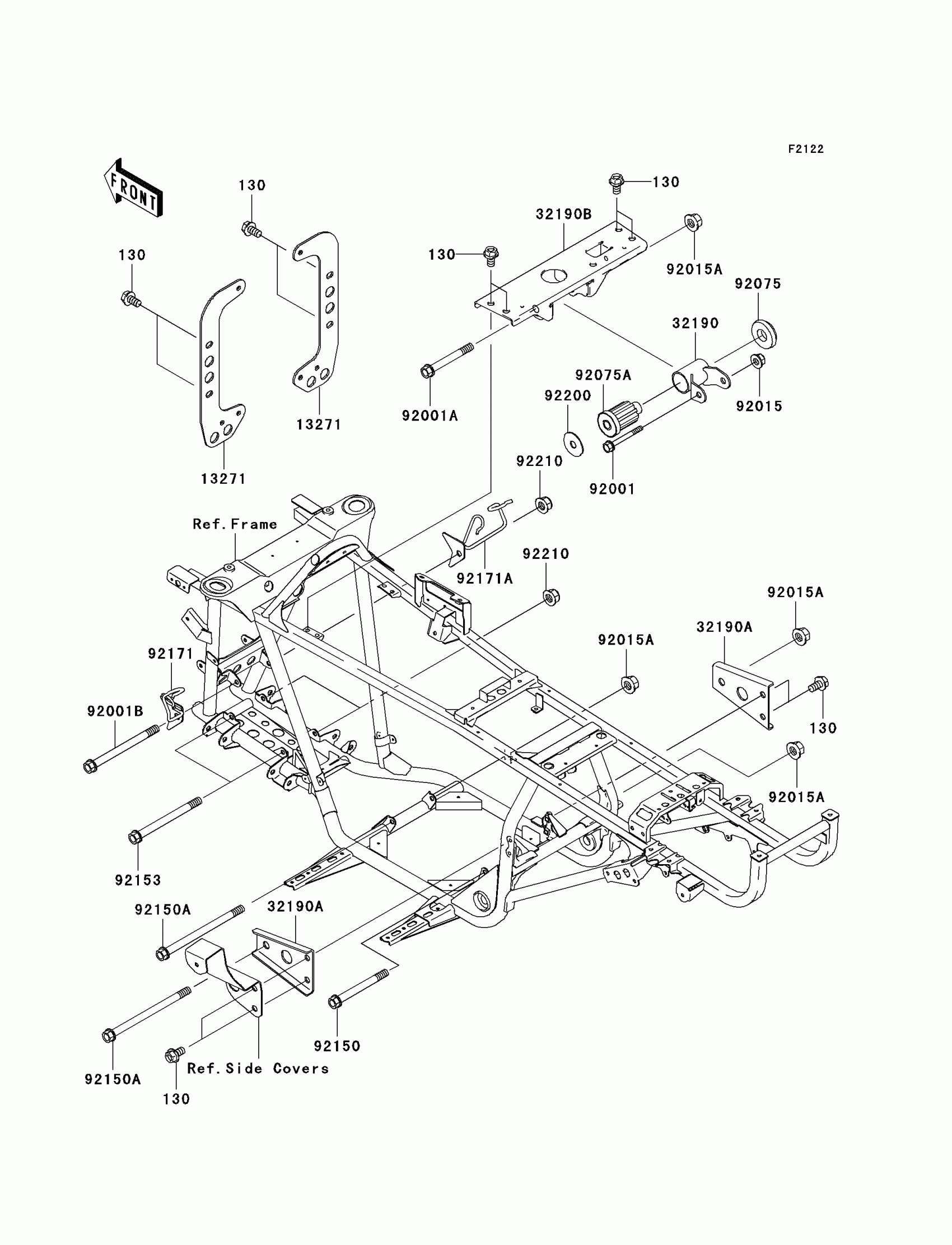

Kawasaki Prairie 360 4X4 Realtree APG HD Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X14

130BB0814

$2.74

13271

PLATE,OIL COOLER

13271-7519

$16.78

32190

BRACKET-ENGINE

32190-1141

$33.02

32190A

BRACKET-ENGINE,RR

32190-7505

$3.88

32190B

BRACKET-ENGINE,HEAD

32190-7507

$18.17

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

$5.97

92001A

BOLT,FLANGED,10X80

92001-1709

$10.02

92001B

BOLT,FLANGED,10X125

92001-1720

$9.03

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$3.43

92015A

NUT,FLANGED,10MM

92015-1727

$3.43

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

92150

BOLT,FLANGED,10X95

92150-1230

$13.03

92150A

BOLT,FLANGED,10X150

92150-1686

$12.66

92153

BOLT,FLANGED,10X120

92153-7502

$8.19

92171

CLAMP,BRAKE HOSE,LH

92171-1535

$16.24

92171A

CLAMP,BRAKE HOSE,RH

92171-1540

$20.93

92200

WASHER,10.5X38.1X1.52

92200-7504

$4.71

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.93
