Description

Price

13168

LEVER,BRAKE

13168-1687

Unavailable

13216

GEAR-COMP,RR,8T

13216-0002

Unavailable

13271

PLATE,CAM

13271-0539

Unavailable

13310

SHAFT-ASSY,RR DRIVE SHAFT

13310-1028

$189.28

14057

CASE-COMP-GEAR

14057-0001

$270.66

14091

COVER,RH

14091-0028

$75.25

14091A

COVER,LH

14091-1422

$65.10

41068

AXLE

41068-1453

$480.71

41080

DISC,FRICTION

41080-1482

$45.10

41080A

DISC,PRESSURE

41080-1483

$14.78

41080B

DISC,SEPARATER

41080-1484

$14.78

49006

BOOT,RR DRIVE SHAFT

49006-1358

$14.36

49022

GEAR-BEVEL,RR,35T

49022-0003

$245.98

55020

GUARD,RR CASE

55020-0038

Unavailable

92037

CLAMP-HOSE

92037-1104

$1.27

92043

PIN,3X35

92043-1617

$2.00

92045

BEARING-BALL,55X90X18

92045-0078

Unavailable

92045A

BEARING-BALL,BX30-1C3 UR3

92045-0099

Unavailable

92049

SEAL-OIL,HTC40X58X8

92049-0012

$14.20

92049A

SEAL-OIL,SC40X52X7

92049-0013

$9.27

92055

RING-O,156.3X3.7

92055-0004

$10.72

92055A

RING-O,25.7X2.4

92055-1136

$3.97

92065

GASKET,8.5X16X1

92065-023

$2.74

92066

PLUG

92066-1303

$10.27

92140

BALL,D/O#12

92140-1064

$1.98

92145

SPRING,RR DRIVE SHAFT

92145-1300

$2.36

92145A

SPRING,RR BRAKE

92145-1301

$1.59

92151

BOLT,8X30

92151-1908

$2.29

92151A

BOLT,10X35

92151-1909

$2.63

92153

BOLT,12X35

92153-0311

$3.75

92170

CLAMP

92170-1763

$4.51

92171

CLAMP

92171-1383

$3.49

92172

SCREW,SET,75X10

92172-0341

$90.10

92180

SHIM,55X64X0.15

92180-1417

$5.08

92180A

SHIM,55X64X0.20

92180-1418

$5.08

92180B

SHIM,55X64X0.50

92180-1419

$4.59

92180C

SHIM,55X64X0.80

92180-1420

$5.08

92180D

SHIM,55X64X1.00

92180-1421

$5.08

92180E

SHIM,55X64X1.20

92180-1422

$5.08

92180F

SHIM,60X72X0.15

92180-1423

$7.54

130

BOLT-FLANGED,8X16

130BA0816

$1.03

671

O RING

671D2585

$6.34

92180G

SHIM,60X72X0.20

92180-1424

$6.09

92180H

SHIM,60X72X0.50

92180-1425

$7.54

92180I

SHIM,60X72X0.80

92180-1426

$6.09

92180J

SHIM,60X72X1.00

92180-1427

$7.54

92180K

SHIM,60X72X1.20

92180-1428

$7.54

92192

TUBE,BREATHER,L=1680MM

92192-0210

$17.25

92210

NUT,30MM

92210-1294

$41.60

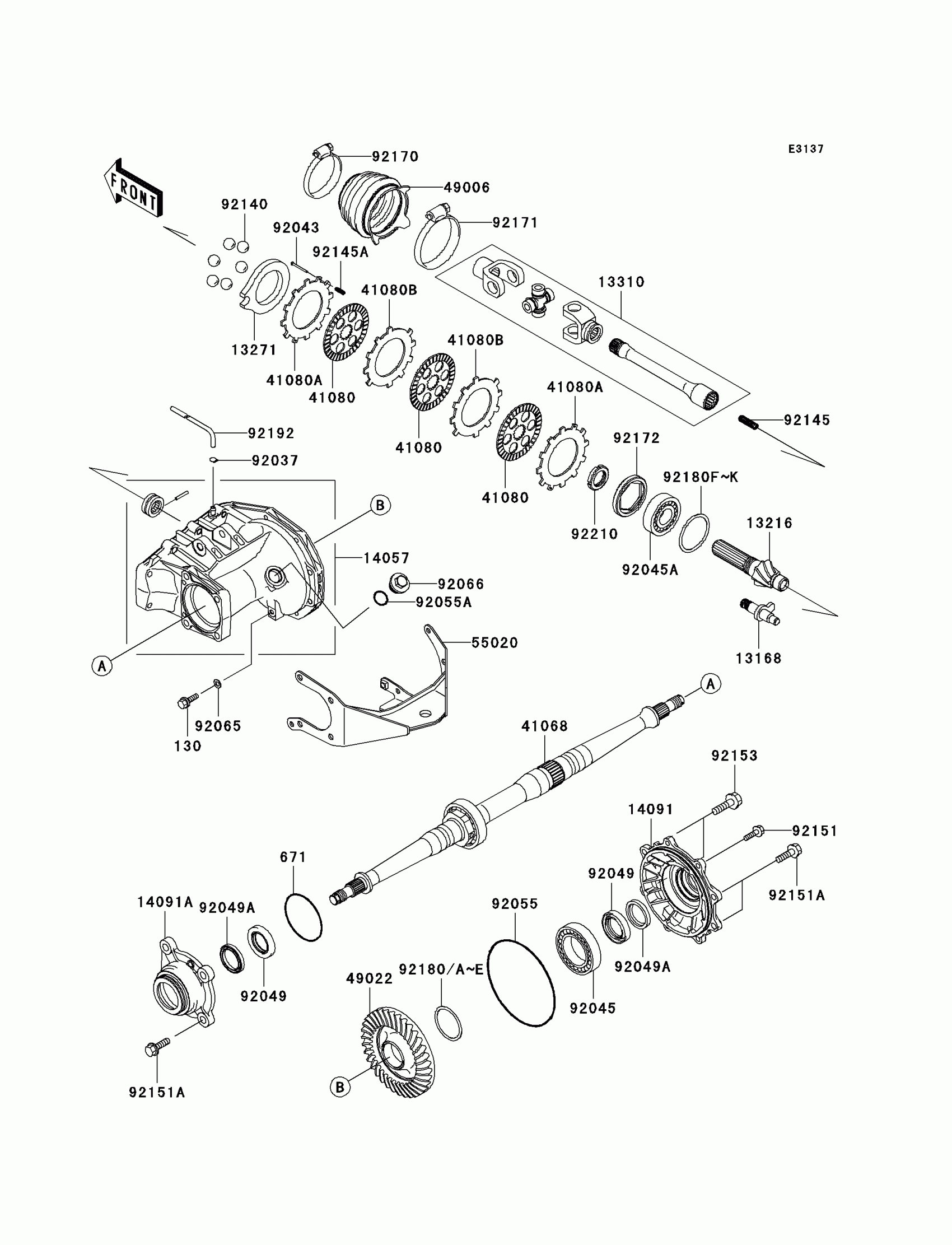

Kawasaki Prairie 360 4X4 Realtree APG HD Drive Shaft-Rear Diagram

LEVER,BRAKE

GEAR-COMP,RR,8T

PLATE,CAM

GUARD,RR CASE

BEARING-BALL,55X90X18

BEARING-BALL,BX30-1C3 UR3
