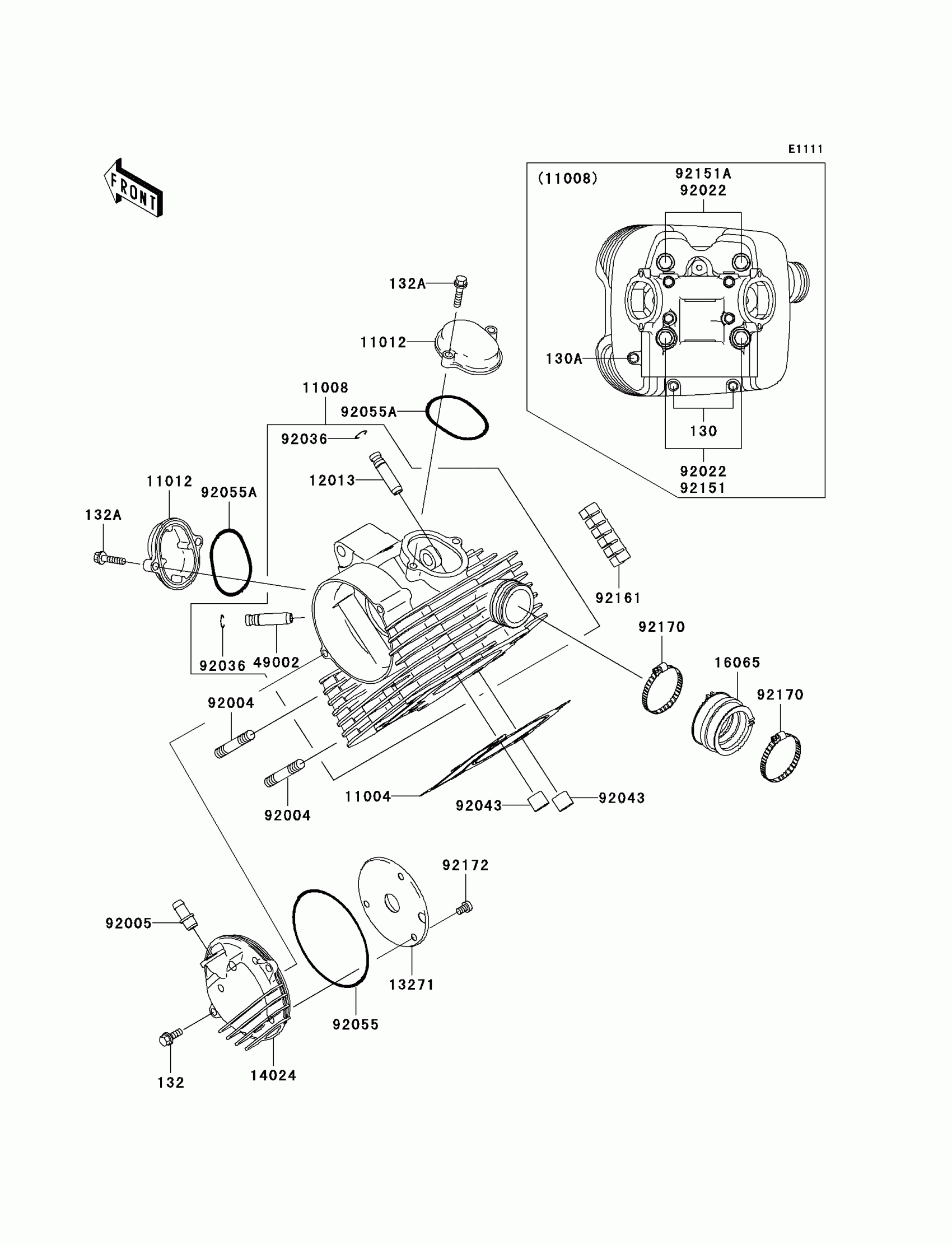

Kawasaki Prairie 360 4X4 Realtree APG HD Cylinder Head Diagram

Description

Price

130

BOLT-FLANGED,6X130

130CD06130

$3.31

130A

BOLT-FLANGED,6X90

130CD0690

$5.14

132

BOLT-FLANGED-SMALL,6X16

132BD0616

$3.14

132A

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

11004

GASKET-HEAD

11004-1379

$39.87

11008

HEAD-COMP-CYLINDER

11008-1415

$1,067.34

11012

CAP,ROCKER ARM

11012-1486

$29.66

12013

GUIDE-VALVE,INTAKE

12013-009

$22.09

13271

PLATE,SPROCKET

13271-1863

$7.83

14024

COVER,CAMSHAFT

14024-1060

$70.35

16065

HOLDER-CARBURETOR

16065-1379

$13.29

49002

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92004

STUD,8X22

92004-1217

$4.27

92005

FITTING,BREATHER PIPE

92005-1124

$18.68

92022

WASHER,11.5X20.5X1.6

92022-1720

$3.29

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92043

PIN,13X16X14

92043-1608

$3.81

92055

"O" RING,99M/M

92055-107

$7.89

92055A

RING-O,53.5X2.6

92055-112

$4.97

92151

BOLT,11X245

92151-1961

$19.88

92151A

BOLT,11X220

92151-1962

Unavailable

92161

DAMPER,CYLINDER

92161-1312

Unavailable

92170

CLAMP

92170-1674

$8.94

92172

SCREW,6X10

92172-1076

$1.66
