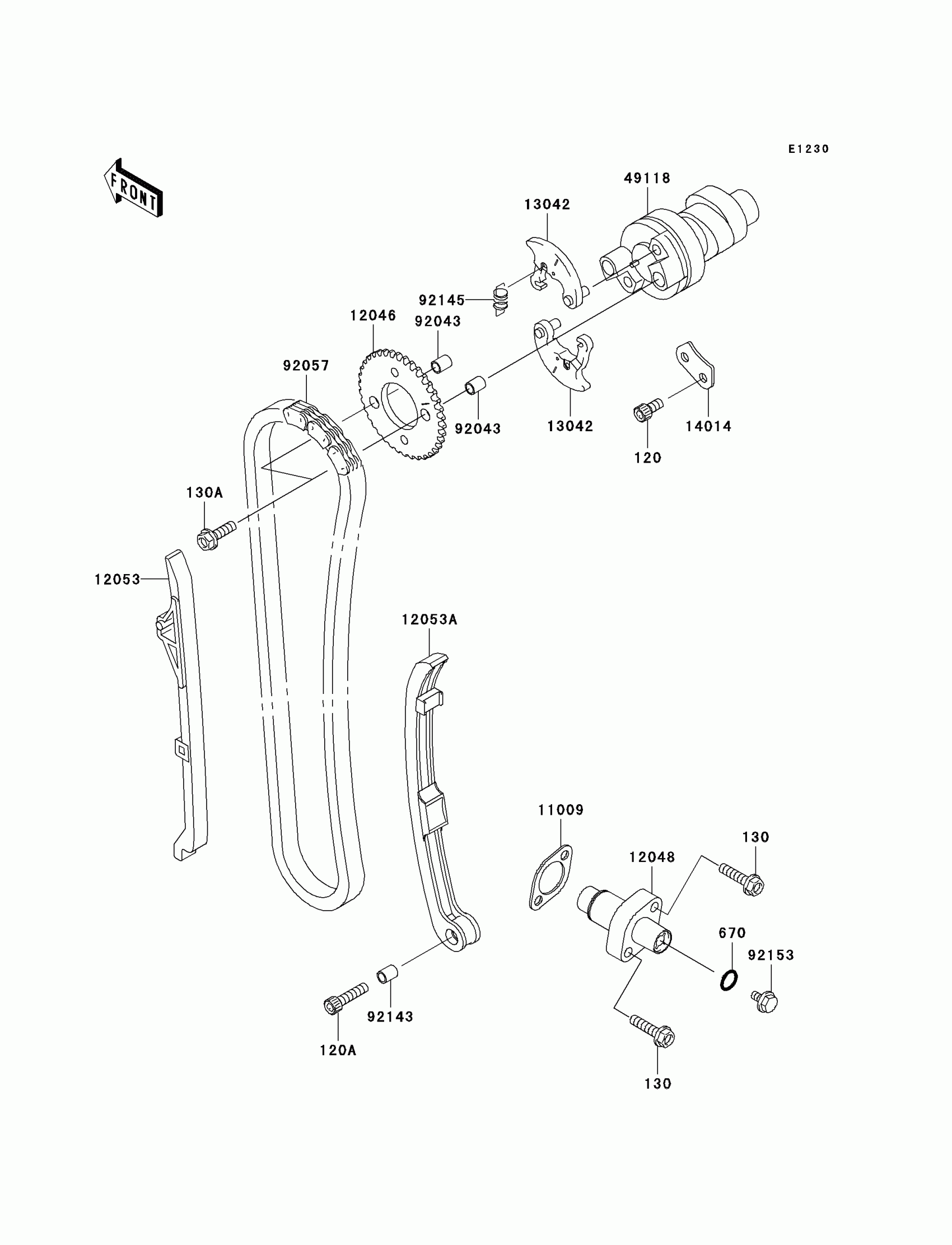

Kawasaki Prairie 360 4X4 Realtree APG HD Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CA0612

$1.33

120A

BOLT-SOCKET,6X25

120CA0625

$1.55

130

BOLT-FLANGED,6X25

130BB0625

$1.92

130A

BOLT-FLANGED,6X20

130CD0620

$1.51

670

O RING,10MM

670D2010

$1.47

11009

GASKET,TENSIONER

11009-1858

$3.66

12046

SPROCKET,38T

12046-1225

$61.73

12048

TENSIONER-ASSY

12048-1193

$149.54

12053

GUIDE-CHAIN,FR

12053-1423

$48.50

12053A

GUIDE-CHAIN,TENSIONER

12053-1451

$71.15

13042

WEIGHT,DECOMP

13042-1149

$39.58

14014

PLATE-POSITION

14014-1095

$4.85

49118

CAMSHAFT-COMP

49118-1217

$269.49

92043

PIN,DOWEL,8X10

92043-1302

$0.87

92057

CHAIN,CAM,82RH2010-118L

92057-1256

$120.48

92143

COLLAR,6X8X10.2

92143-1253

$5.07

92145

SPRING,DECOMP

92145-1495

$3.29

92153

BOLT,6X6

92153-1380

$1.38
