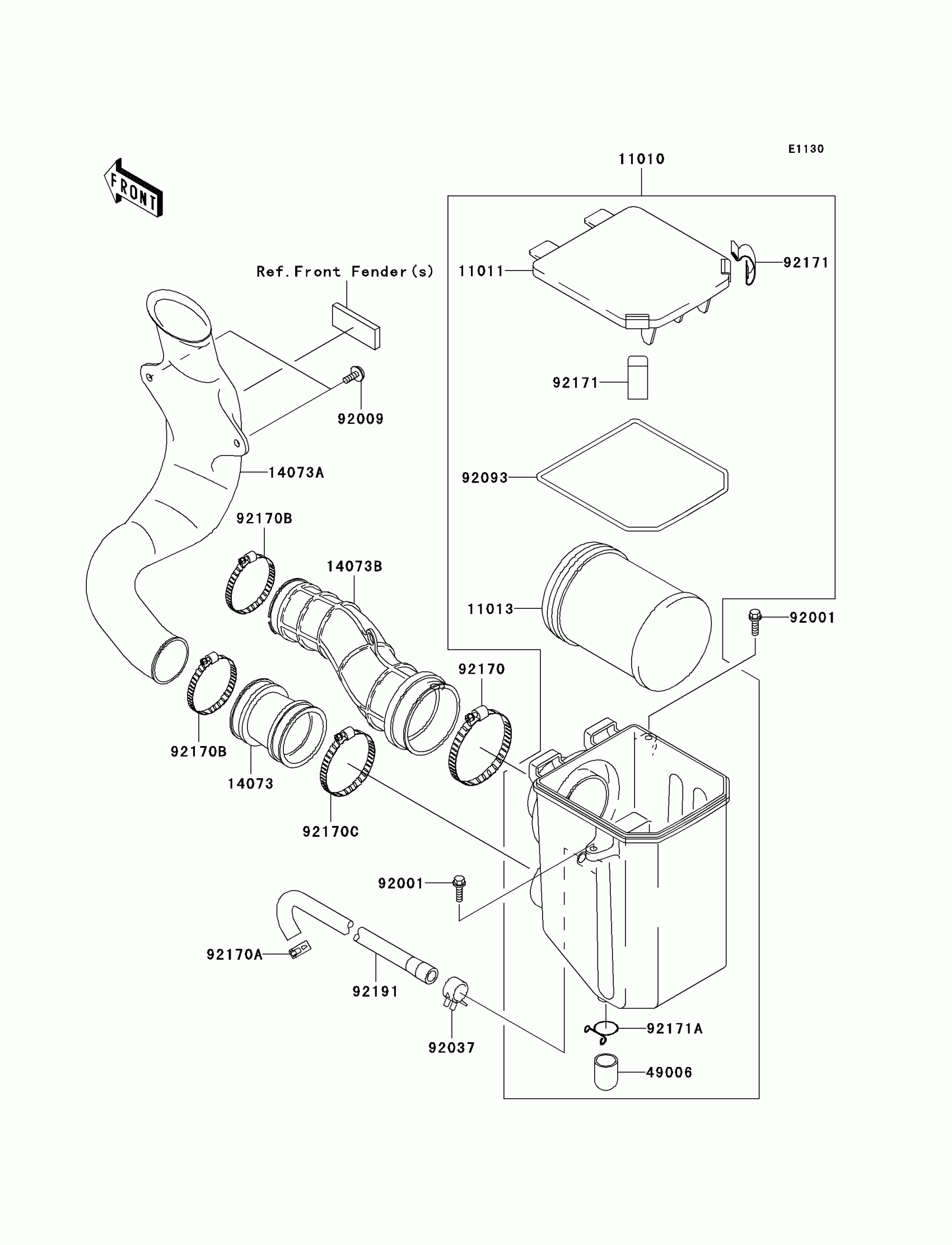

Kawasaki PRAIRIE® 360 4x4 Realtree® APG™ HD® Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1766

Unavailable

11011

CASE-AIR FILTER,UPP

11011-1639

$19.46

11013

ELEMENT-AIR FILTER

11013-1292

$7.98

14073

DUCT,A/C-INLET

14073-1802

$4.94

14073A

DUCT,INLET

14073-1803

$29.54

14073B

DUCT,A/C-CARBURETOR

14073-1823

$33.10

49006

BOOT

49006-1359

$5.46

92001

BOLT,6X20

92001-1460

$2.99

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92037

CLAMP

92037-1678

$9.80

92093

SEAL,AIR FILTER CASE

92093-1550

$4.28

92170

CLAMP

92170-1307

$18.51

92170A

CLAMP

92170-1491

$5.69

92170B

CLAMP

92170-1674

$8.94

92170C

CLAMP

92170-1764

$8.62

92171

CLAMP,AIR FILTER CASE

92171-1426

$4.66

92171A

CLAMP

92171-1427

$5.19

92192

TUBE,AIR CLEANER

92192-0752

$24.51
