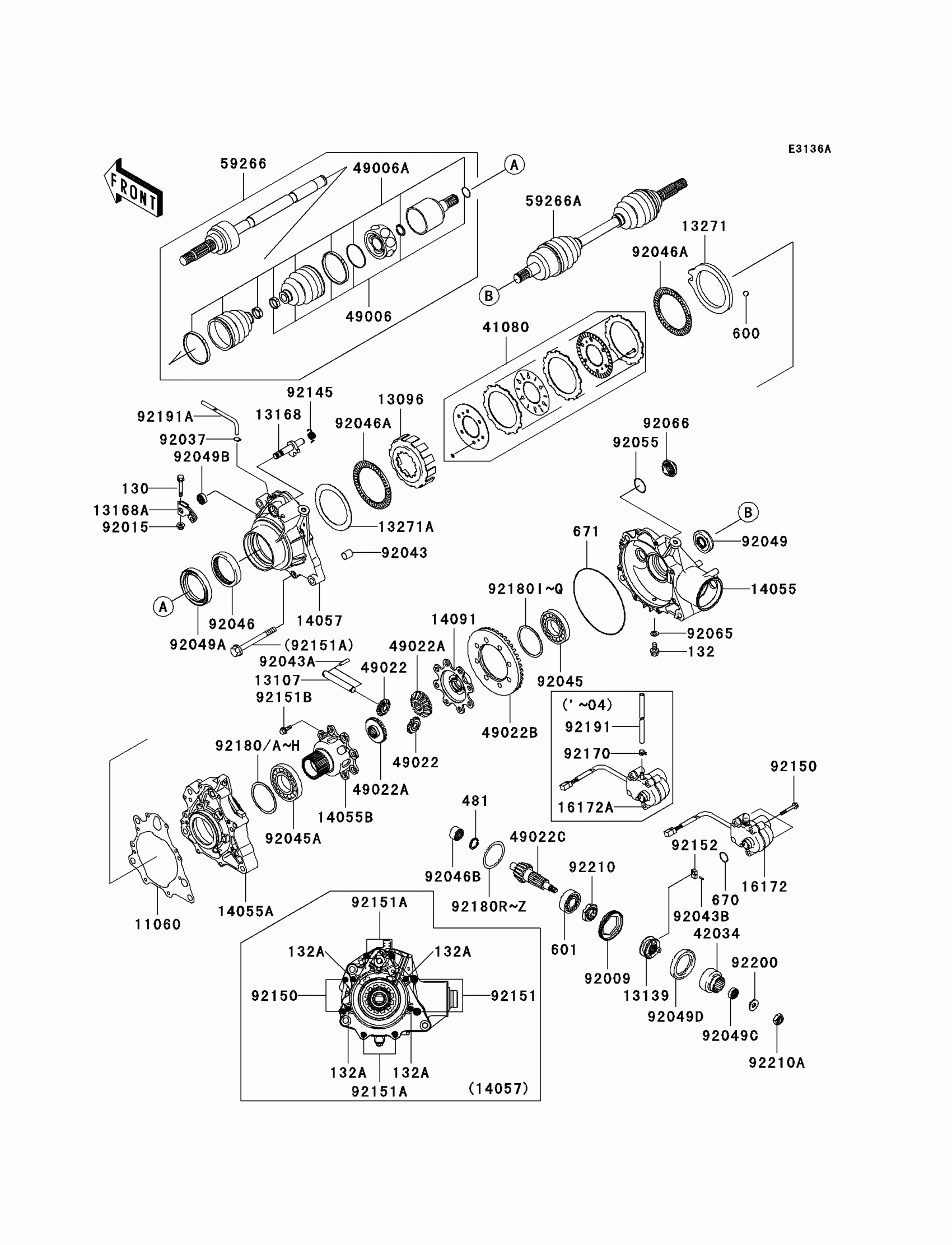

Kawasaki Prairie 360 4X4 Drive Shaft-FR(JKBVFHA1 4B531604-) Diagram

#

Description
Price

11060

GASKET,DIFF CASE

11060-1982

$27.17

13096

HOUSING-CLUTCH,DISC

13096-1163

$46.48

13107

SHAFT,BEVEL

13107-1447

Unavailable

13139

SHIFTER,DIFFERENTIAL

13139-1097

$104.65

13168

LEVER,DIFF

13168-1724

$42.75

13168A

LEVER,DIFFERENTIAL

13168-1725

$18.46

13271

PLATE,CAM

13271-1497

Unavailable

13271A

PLATE,DISC

13271-1503

$14.56

14055

CASE-GEAR,DIFFERENTIAL,RH

14055-1149

$165.41

14055A

CASE-GEAR,CENTER

14055-1155

$145.52

14055B

CASE-GEAR,BEVEL,LH

14055-1156

Unavailable

14057

CASE-COMP-GEAR,DIFF,LH

14057-1004

Unavailable

14091

COVER,BEVEL,RH

14091-1197

$65.40

16172

ACTUATOR

16172-0001

$404.09

41080

DISC ASSY,DIFFERENTIAL LOCK

41080-1512

Unavailable

42034

COUPLING,BEVEL

42034-1192

$126.10

49006

BOOT,BALL JOINT,INSIDE

49006-1342

$45.49

49006A

BOOT,BALL JOINT,OUTSIDE

49006-1343

Unavailable

49022

GEAR-BEVEL,10T

49022-1177

Unavailable

49022A

GEAR-BEVEL,16T

49022-1178

$159.22

49022B

GEAR-BEVEL,35T

49022-1190

Unavailable

49022C

GEAR-BEVEL,8T

49022-1201

$441.46

59266

JOINT-BALL,LH

59266-1129

$701.05

59266A

JOINT-BALL,RH

59266-1130

$701.05

92009

SCREW,64MM

92009-1914

$30.20

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.20

92037

CLAMP-HOSE

92037-1104

$1.27

92043

PIN,6.2X8X14

92043-1263

$0.49

92043A

PIN

92043-1575

$2.03

92043B

PIN,2X9.8

92043-1649

$2.15

92045

BEARING-BALL,60/32

92045-1393

$24.52

92045A

BEARING-BALL,6910

92045-1394

$51.15

92046

BEARING-NEEDLE,TA627412ZE02

92046-1282

Unavailable

92046A

BEARING-NEEDLE,AK1116

92046-1286

$55.99

92046B

BEARING-NEEDLE,AJ501515W

92046-1297

$36.72

92049

SEAL-OIL,SDD7 22X48X7HS

92049-1534

$14.43

92049A

SEAL-OIL,HTCY 62X81X10.5

92049-1536

$20.39

92049B

SEAL-OIL,TC 12X22X7

92049-1550

$3.97

92049C

SEAL-OIL,KB 13X19X13

92049-1572

$7.48

92049D

SEAL-OIL,TCY 48X65X8

92049-1573

$13.60

92055

RING-O,25.7X2.4

92055-1136

$3.97

92065

GASKET,8.5X16X1

92065-023

$2.74

92066

PLUG

92066-1303

$10.27

92145

SPRING,DIFF RETURN

92145-1344

$3.25

92150

BOLT,6X45

92150-1884

Unavailable

92151

BOLT,8X50

92151-1794

$2.29

92151A

BOLT,6X60

92151-1795

$2.00

92151B

BOLT,10X19.5

92151-1910

$2.63

92152

COLLAR

92152-1349

$37.18

92180

SHIM,62X71X0.15

92180-1390

$6.09

92180A

SHIM,62X71X0.20

92180-1391

$7.54

92180B

SHIM,62X71X0.50

92180-1392

$6.09

92180C

SHIM,62X71X0.70

92180-1393

$6.09

92180D

SHIM,62X71X0.80

92180-1394

$6.09

92180E

SHIM,62X71X0.90

92180-1395

$6.09

92180F

SHIM,62X71X1.00

92180-1396

$6.09

92180G

SHIM,62X71X1.10

92180-1397

$6.09

92180H

SHIM,62X71X1.20

92180-1398

$7.54

92180I

SHIM,32X42X0.15

92180-1399

$7.54

92180J

SHIM,32X42X0.20

92180-1400

$7.54

92180K

SHIM,32X42X0.50

92180-1401

$7.54

92180L

SHIM,32X42X0.70

92180-1402

$7.54

92180M

SHIM,32X42X0.80

92180-1403

$6.09

92180N

SHIM,32X42X0.90

92180-1404

$6.09

92180O

SHIM,32X42X1.00

92180-1405

$6.09

92180P

SHIM,32X42X1.10

92180-1406

$6.09

92180Q

SHIM,32X42X1.20

92180-1407

$6.09

92180R

SHIM,50X61X0.15

92180-1408

$5.39

92180S

SHIM,50X61X0.20

92180-1409

$4.90

92180T

SHIM,50X61X0.50

92180-1410

$4.90

92180U

SHIM,50X61X0.70

92180-1411

$4.90

92180V

SHIM,50X61X0.80

92180-1412

$4.90

130

BOLT-FLANGED,6X35

130G0635

Unavailable

132

BOLT-FLANGED-SMALL,8X16

132J0816

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

481

CIRCLIP-TYPE-C,25MM

481J2500

$2.47

600

BALL-STEEL,11/32"

600A1100

$0.69

601

BEARING-BALL,#6305

601A6305

$14.63

670

O RING

670D3022

$2.29

671

O RING

671D25145

$18.76

92180W

SHIM,50X61X0.90

92180-1413

$4.90

92180X

SHIM,50X61X1.00

92180-1414

$4.90

92180Y

SHIM,50X61X1.10

92180-1415

$4.90

92180Z

SHIM,50X61X1.20

92180-1416

$4.90

92191A

TUBE,BREATHER

92191-1638

$10.17

92200

WASHER,10X24X2.5

92200-1635

$3.75

92210

NUT,25MM

92210-1225

$14.56

92210A

NUT,LOCK,10MM

92210-1351

$6.09
