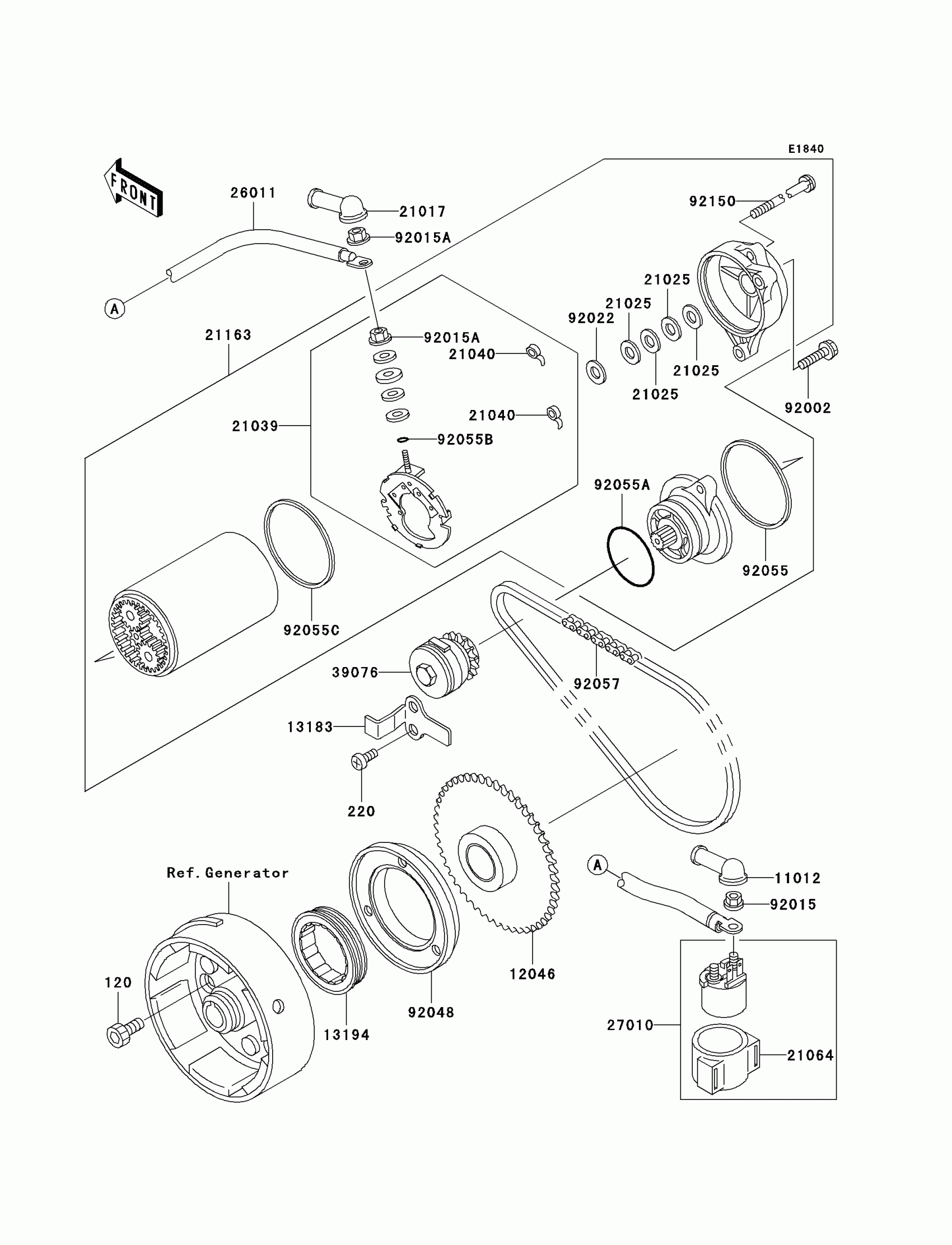

Kawasaki Prairie 300 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X16

120P0816

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

11012

CAP,TERMINAL

11012-1354

$9.85

12046

SPROCKET,STARTER

12046-1077

$77.87

13183

PLATE,STARTER CHAIN

13183-1002

Unavailable

13194

CLUTCH-ONEWAY

13194-1091

Unavailable

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-1063

$87.50

21040

SPRING-BRUSH

21040-1057

$8.24

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1141

$530.30

26011

WIRE-LEAD,STARTER MOTOR

26011-1709

$50.02

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1054

$182.39

92002

BOLT

92002-1664

$4.61

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92048

RACE,ONEWAY CLUTCH

92048-1104

$87.01

92055

RING-O,64MM

92055-1086

$9.68

92055A

RING-O,42.8MM

92055-1313

$8.44

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92055C

RING-O,STARTER MOTOR

92055-1381

$9.58

92057

CHAIN,STARTER,KEC29H,64L

92057-1196

$45.31

92150

BOLT,STARTER MOTOR

92150-1138

$9.27
