2002 Kawasaki Prairie 300 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

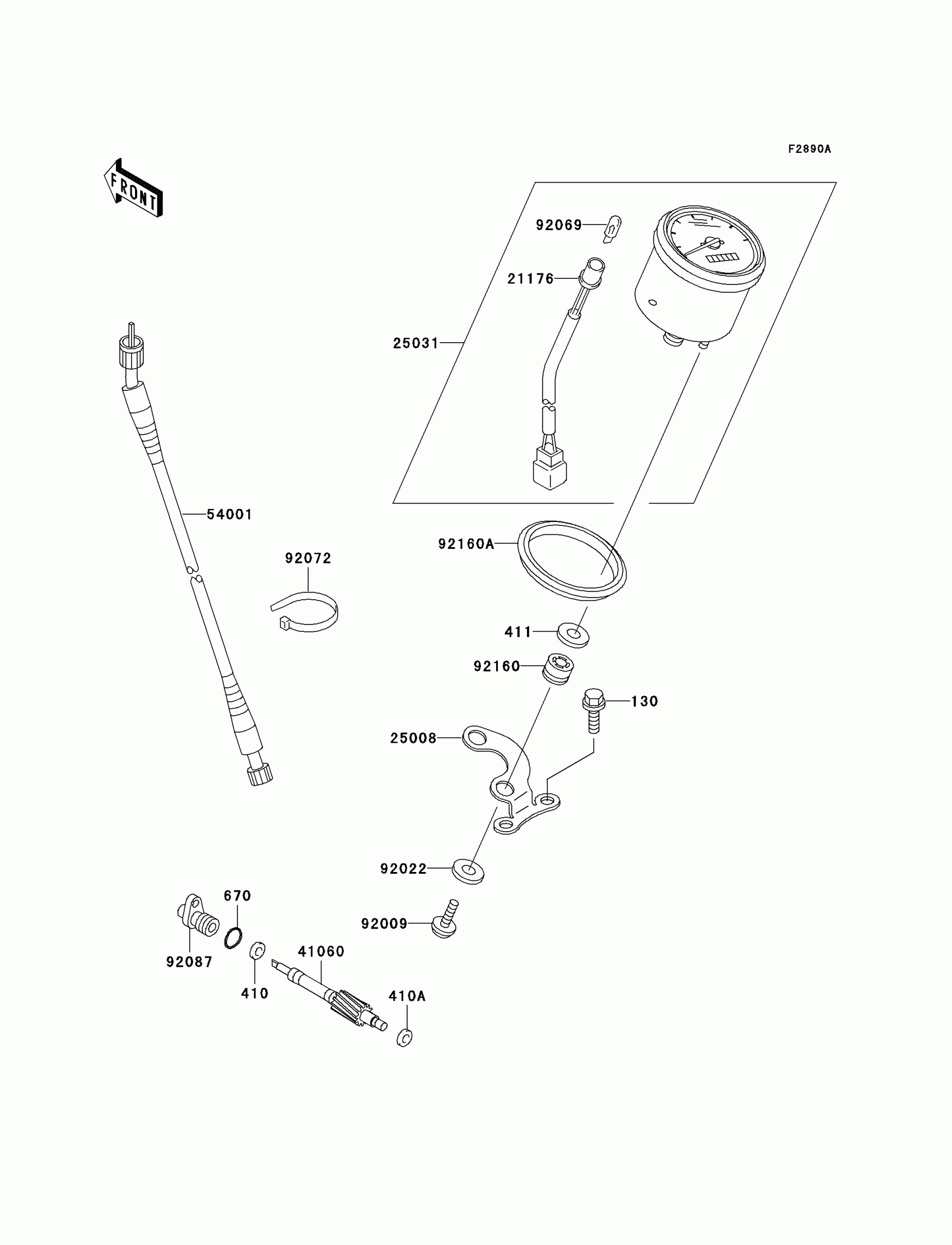

2002 Kawasaki Prairie 300 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

CORD ASSY,SPEEDOMETER

21176-1059

1
Out of stock

25008

BRACKET-METER

25008-1221

1
Out of stock

25031

METER-ASSY,MPH

25031-1080

1
Out of stock

41060

GEAR-METER SCREW

41060-1157

1
Out of stock

54001

CABLE-SPEEDMETER

54001-1232

1
Out of stock

92009

SCREW,5X12

92009-3740

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92069

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92087

BUSHING-METER GEAR

92087-1057

1
Out of stock

92160

DAMPER

92160-1461

1
Out of stock

92160A

DAMPER,SPEEDOMETER

92160-1959

1
Out of stock

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

410

WASHER PLAIN 5MM

410B0500

1
Out of stock

410A

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock
