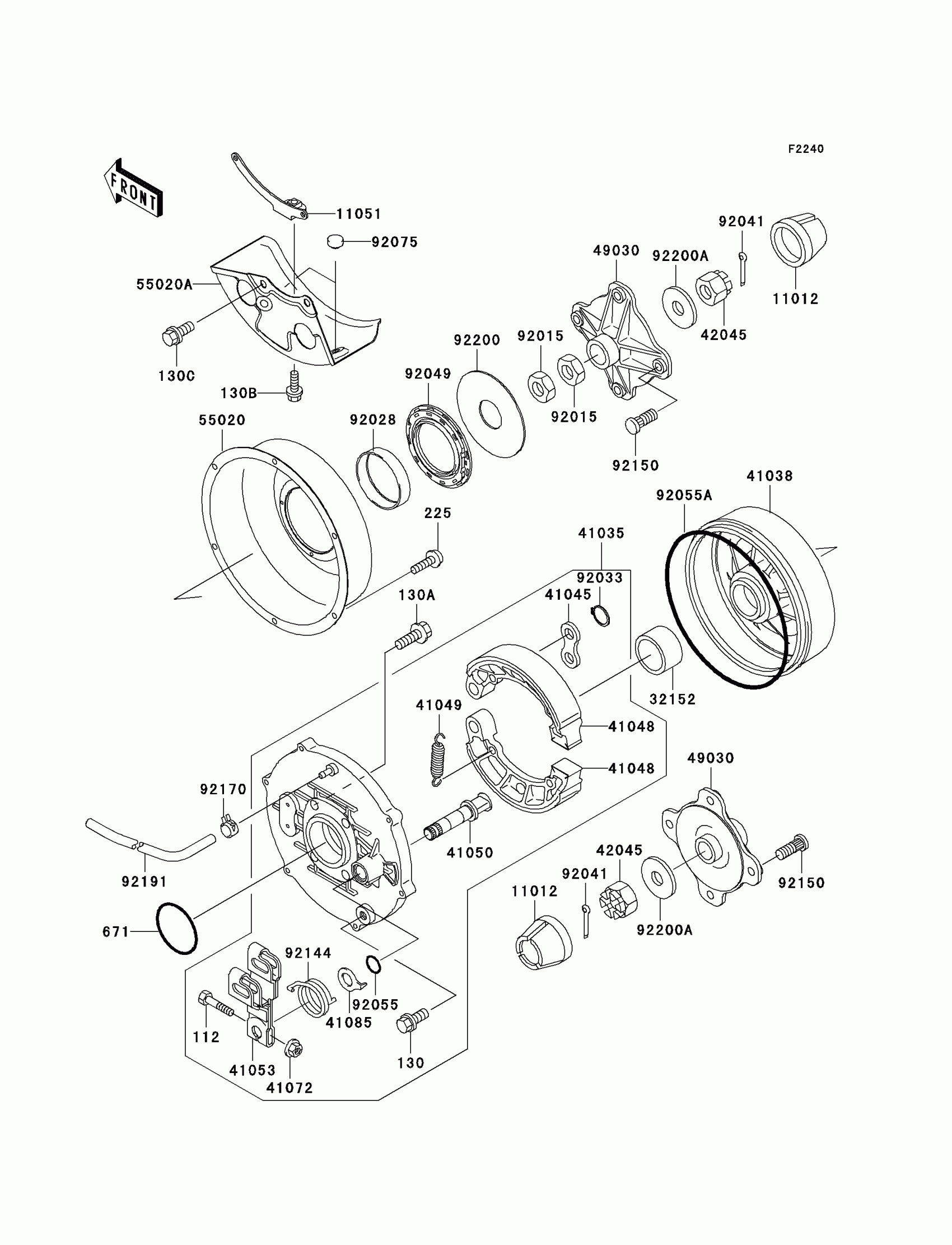

Kawasaki Prairie 300 4X4 Rear Hub Diagram

#

Description
Price

112

BOLT-UPSET

112H0640

Unavailable

130

BOLT-FLANGED,10X12

130B1012

Unavailable

130A

BOLT-FLANGED,10X30

130G1030

Unavailable

130B

BOLT-FLANGED,8X12

130J0812

Unavailable

130C

BOLT-FLANGED,8X16

130J0816

Unavailable

225

SCREW-PAN-WSP-CROS,6X16

225C0616

Unavailable

671

O RING,70MM

671B2570

$7.49

11012

CAP,WHEEL

11012-1969

$4.27

11051

BRACKET,GUARD

11051-1205

$5.00

32152

PIPE,40X50.8X28

32152-1082

$19.29

41035

PANEL-ASSY-BRAKE,RR

41035-1500

$631.70

41038

DRUM,REAR BRAKE

41038-1308

$408.12

41045

WASHER-BRAKE SHOE

41045-006

$7.14

41048

SHOE-BRAKE

41048-1127

$34.80

41049

SPRING,BRAKE SHOE

41049-012

$7.23

41050

CAM-BRAKE

41050-1089

$76.99

41053

LEVER-BRAKE CAM

41053-1084

$56.21

41072

NUT,6MM

41072-007

$2.99

41085

INDICATOR

41085-1086

Unavailable

42045

NUT,CASTLE,18MM

42045-018

$7.01

49030

HUB,RR

49030-1113

$192.05

55020

GUARD,REAR BRAKE

55020-1646

Unavailable

55020A

GUARD

55020-1685

Unavailable

92015

NUT,LOCK,37MM

92015-1545

$18.44

92028

BUSHING

92028-1865

$123.29

92033

RING-SNAP,15MM

92033-1250

$3.95

92041

COTTER,4.0X35

92041-1053

$2.99

92049

SEAL-OIL,SD7 64X106X9ZS

92049-1485

$76.17

92055

RING-O,ID=16.4

92055-1376

$4.08

92055A

RING-O

92055-1582

Unavailable

92075

DAMPER

92075-1983

$3.19

92144

SPRING

92144-1365

$12.36

92150

BOLT

92150-1289

$4.04

92170

CLAMP

92170-2042

$1.00

92191

TUBE,4.7X9.5X850

92191-1292

$8.63

92200

WASHER,37X111X2

92200-1403

$24.83

92200A

WASHER,18.5X52X4.5

92200-1474

$6.18
