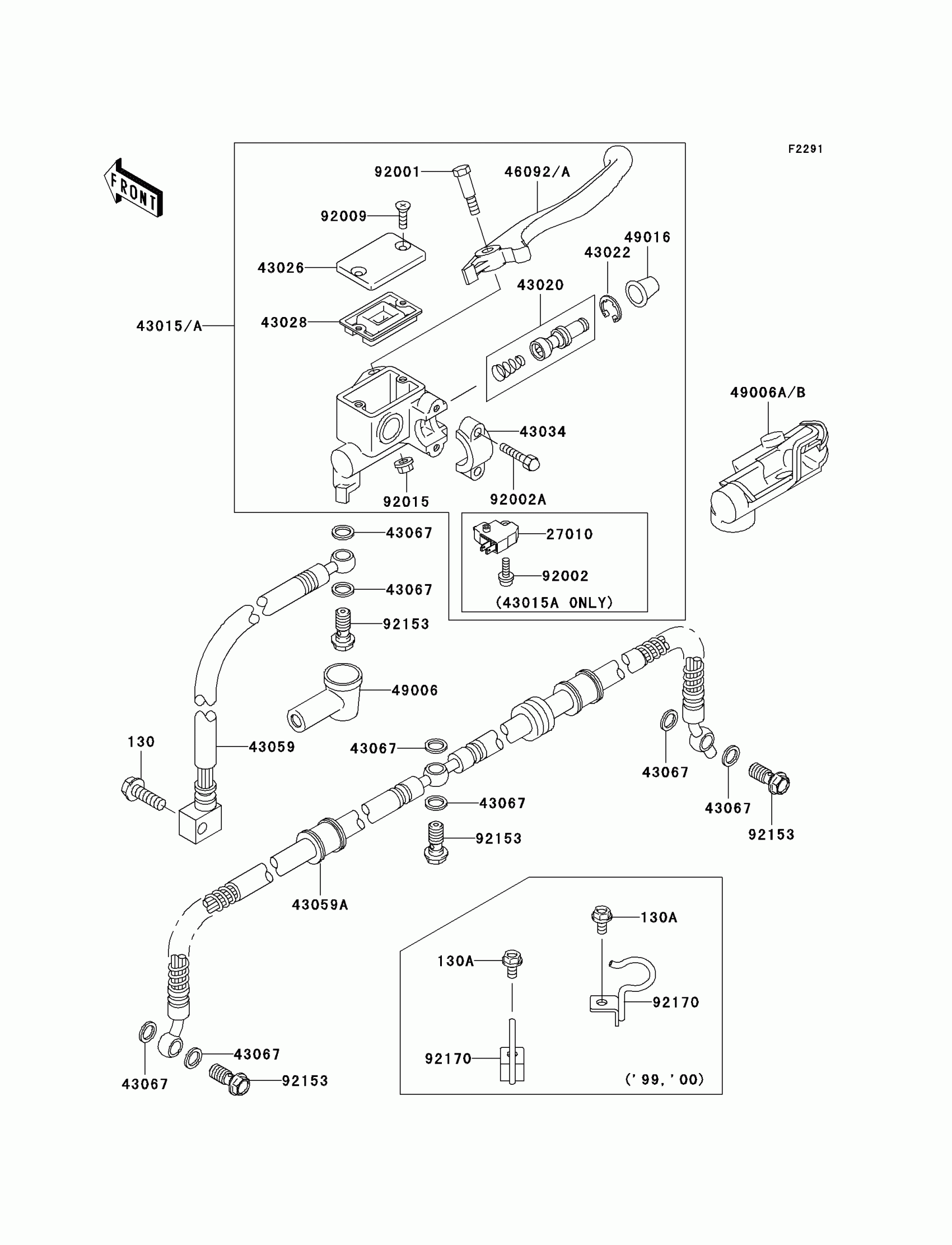

Kawasaki Prairie 300 4X4 Front Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,8X25

130B0825

Unavailable

27010

SWITCH,BRAKE

27010-0025

$33.39

43015A

CYLINDER-ASSY-MASTER,FR

43015-1646

$396.73

43020

PISTON-COMP-BRAKE,FR

43020-1056

$59.90

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1074

$23.33

43028

DIAPHRAGM

43028-1061

$12.79

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$15.29

43059

HOSE-BRAKE,FR,UPP

43059-1926

$90.59

43059A

HOSE-BRAKE,FR,LWR

43059-1927

$205.37

43067

WASHER,10.5X15X1.5

43067-001

$1.81

46092A

LEVER-GRIP,FRONT BRAKE

46092-1208

$19.94

49006

BOOT,DUST

49006-1040

$9.11

49006B

BOOT

49006-1338

$10.03

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$11.26

92002

BOLT,SCREW,4X12

92002-1323

$3.12

92002A

BOLT

92002-1894

$4.37

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92153

BOLT,OIL,L=23

92153-0627

$4.35
