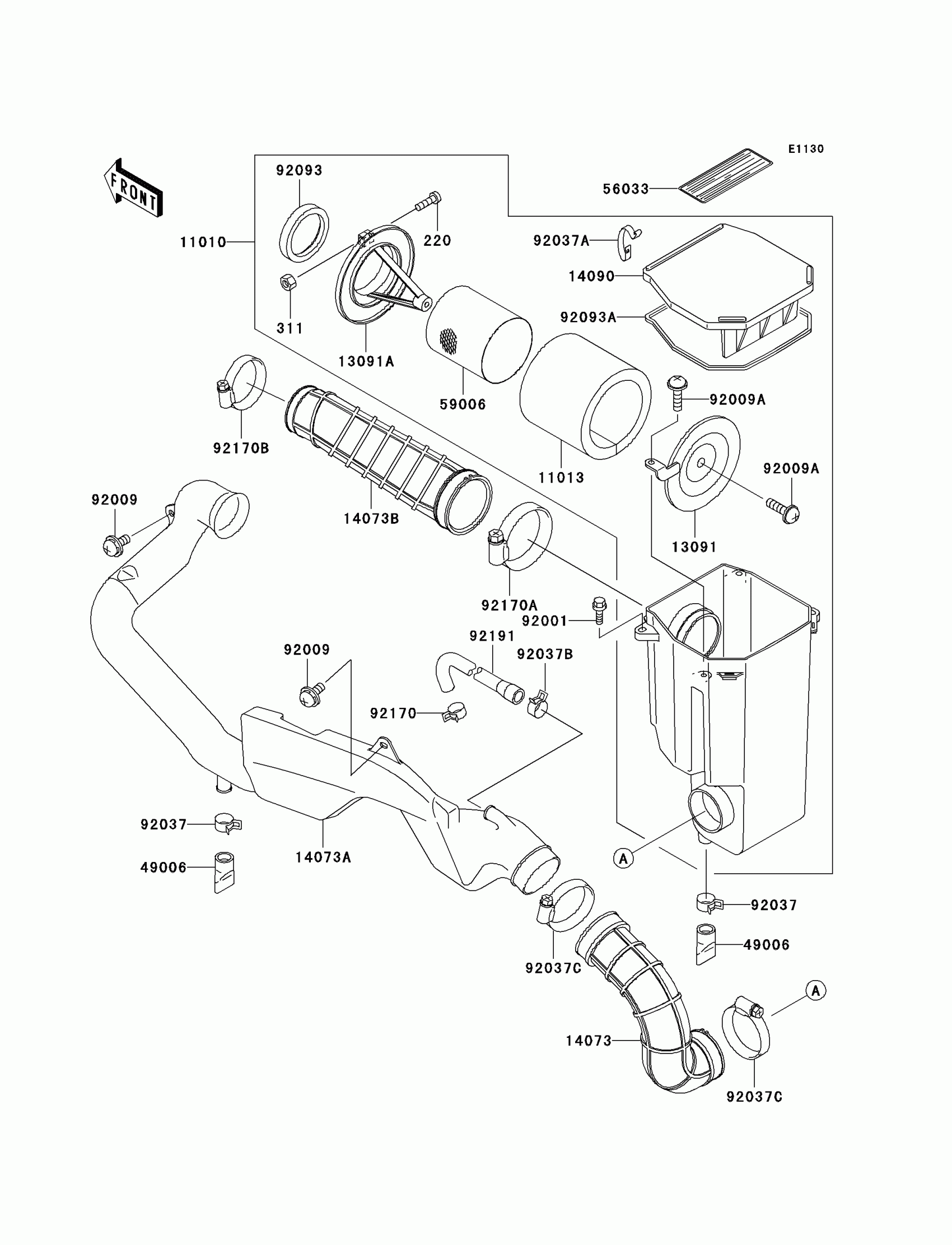

Kawasaki Prairie 300 4X4 Air Cleaner Diagram

#

Description
Price

220

SCREW PAN HEAD 5X16

220B0516

$1.73

311

NUT-HEX

311B0500

$0.51

11010

FILTER-ASSY-AIR

11010-1681

$330.40

11013

ELEMENT-AIR FILTER

11013-1255

$11.88

13091

HOLDER,ELEMENT

13091-1488

$18.50

13091A

HOLDER,AIR FILTER ELEMENT

13091-1565

$14.65

14073

DUCT

14073-1654

$64.59

14073A

DUCT

14073-1682

$33.19

14073B

DUCT

14073-1735

Unavailable

14090

COVER,AIR FILTER

14090-1663

$39.88

49006

BOOT

49006-1292

$6.18

56033

LABEL-MANUAL,MAINTENANCE

56033-1079

$2.20

59006

ARRESTER-FLAME

59006-1052

$34.50

92001

BOLT,6X20

92001-1460

$3.12

92009

SCREW,6X16

92009-1276

$4.25

92009A

SCREW,6X16

92009-1890

$1.88

92037

CLAMP,HOSE CLIP

92037-1460

$8.57

92037A

CLAMP,AIR FILTER

92037-1783

$6.99

92037B

CLAMP

92037-1860

Unavailable

92037C

CLAMP

92037-3738

$5.70

92093

SEAL,DUST

92093-1322

$7.79

92093A

SEAL,FILTER CASE

92093-1404

$6.57

92170

CLAMP

92170-1491

$5.93

92170A

CLAMP

92170-1679

$5.95

92170B

CLAMP

92170-1764

$9.09

92191

TUBE

92191-1343

$11.34
