1976 Yamaha PR440 Torque Converter Diagram

← All diagrams

Find the part on the Torque Converter diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

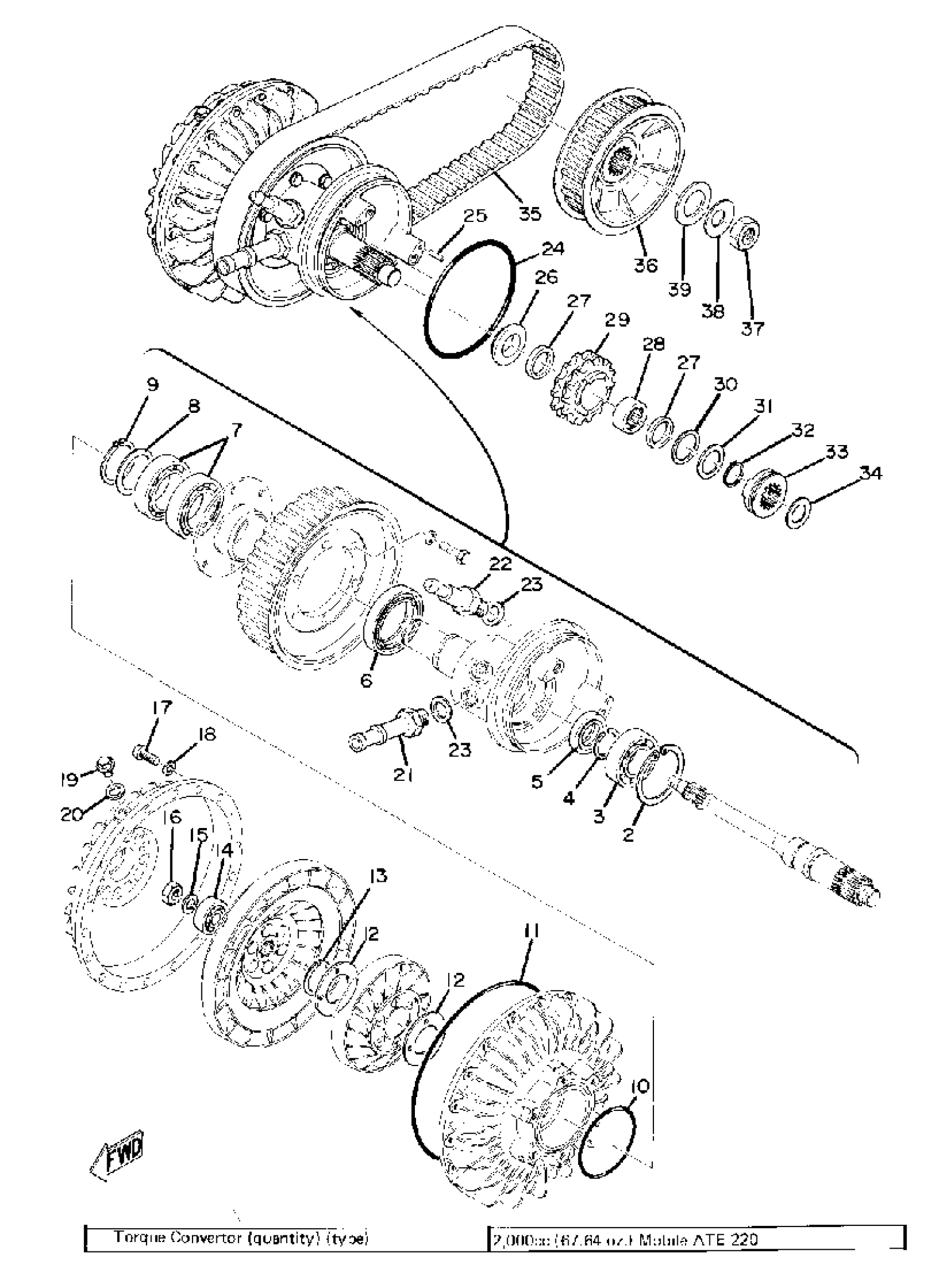

1976 Yamaha PR440 Torque Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TORQUE CONV ASSEMBLY

(8A2-16700-00-00)

1
Out of stock

2

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

3

1

$35.25

In stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

OIL SEAL (5V6)

93103-25125-00

—

$23.23

In stock

6

. OIL SEAL, SW-TYPE

93103-48070-00

1
Out of stock

7

BEARING

(93306-00703-00)

1
Out of stock

8

SHIM

(834-16715-00-00)

1
Out of stock

9

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

1
Out of stock

10

O-RING

(93210-69203-00)

1
Out of stock

11

. O-RING

93211-64236-00

1
Out of stock

12

BEARING, THRUST

(834-16737-00-00)

1
Out of stock

13

CIRCLIP, S-TYPE

(93410-28028-00)

1
Out of stock

14

BEARING(3WF)

93306-20119-00

1

$28.48

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

NUT (682)

95380-10700-00

1

$5.78

In stock

17

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

BOLT, WASHER BASED(4JT)

90105-08729-00

—

$3.92

In stock

20

GASKET

90430-08023-00

1
Out of stock

21

CONNECTOR, PIPE

(8A2-16756-00-00)

1
Out of stock

22

CONNECTOR, PIPE

(874-16756-00-00)

1
Out of stock

23

GASKET

214-11198-01-00

—

$2.66

In stock

24

O-RING

93211-13109-00

1
Out of stock

25

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

26

COLLAR

90387-24251-00

1
Out of stock

27

COLLAR

90387-24253-00

1
Out of stock

28

BEARING, CYLINDER.#15

93315-22414-00

1
Out of stock

29

SPRKT, CHAIN DR

891-17682-50-00

1
Out of stock

30

SHIM (T:0.30MM)

626-45577-20-00

1

$6.31

In stock

30

SHIM (T:0.50MM)

626-45577-40-00

1

$5.46

In stock

31

SHIM 3

826-17238-00-00

1
Out of stock

32

CIRCLIP

99009-24400-00

—

$7.49

In stock

33

DOG, TRANS SHIFT

874-17492-00-00

1
Out of stock

34

SHIM 1

136-17417-00-10

1
Out of stock

35

V-BELT

874-17641-00-00

1
Out of stock

36

PULLEY 1

(874-16785-00-00)

1
Out of stock

37

NUT

90170-16425-00

—
Out of stock

38

WASHER, CONICAL SPR

(90208-16014-00)

1
Out of stock

39

SPACER

(90560-17078-00)

1
Out of stock
