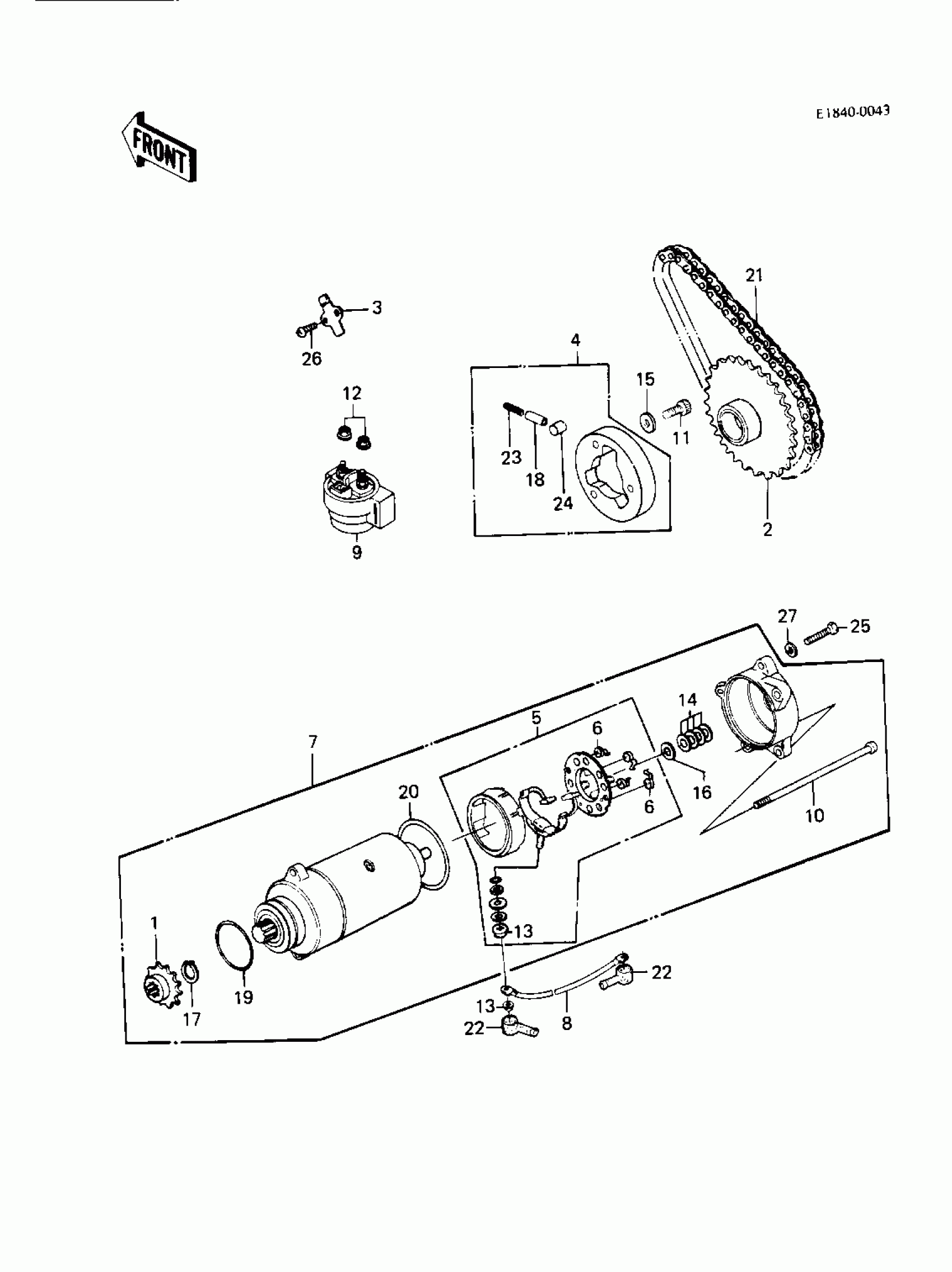

Kawasaki Police STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

1

SPROCKET,STARTER MOTO

12046-1004

Unavailable

2

SPROCKET,STARTER

12046-1023

Unavailable

3

PLATE

13169-1010

Unavailable

4

CLUTCH-ASSY-ONEWAY

13193-1006

$182.70

5

BRUSH,CARBON

21039-1053

$96.05

6

SPRING-BRUSH

21040-1003

$9.12

7

STARTER-ELECTRIC

21163-1036

Unavailable

8

WIRE-LEAD,STARTER MOT

26011-1201

$49.47

8

WIRE-LEAD,STARTER MOT

26011-1201

Unavailable

9

SWITCH,STARTER

27010-1314

$40.41

10

SCREW,PAN HEAD,6X130

92001-1046

Unavailable

11

BOLT-SOCKET,8X16

120P0816

Unavailable

12

NUT,FLANGED,6MM

92015-1078

Unavailable

13

NUT,FLANGED,6MM

92015-1078

Unavailable

14

WASHER,9.1X18X0.2

21025-011

Unavailable

15

WASHER,8.5X13.5X2

92022-1108

$3.85

16

WASHER,9.1X18X0.8

92022-1132

$5.42

17

RING-SNAP,13MM

92033-037

$9.71

18

PIN

92043-087

$9.70

19

RING-O,42.8MM

21027-005

Unavailable

20

RING-O,64MM

92055-1086

$9.68

21

CHAIN,DYNAMO

92057-1009

$50.46

22

CAP,STARTING MOTOR

21017-020

$7.85

22

GROMMET,STARTER TERMINAL

21017-017

Unavailable

23

SPRING

92081-110

$3.63

24

ROLLER,15X14.4

92122-001

$8.82

25

BOLT-UPSET

112G0625

Unavailable

26

SCREW-PAN-CROS,6X14

220B0614

$1.14

27

WASHER PLAIN 6MM

411B0600

Unavailable
