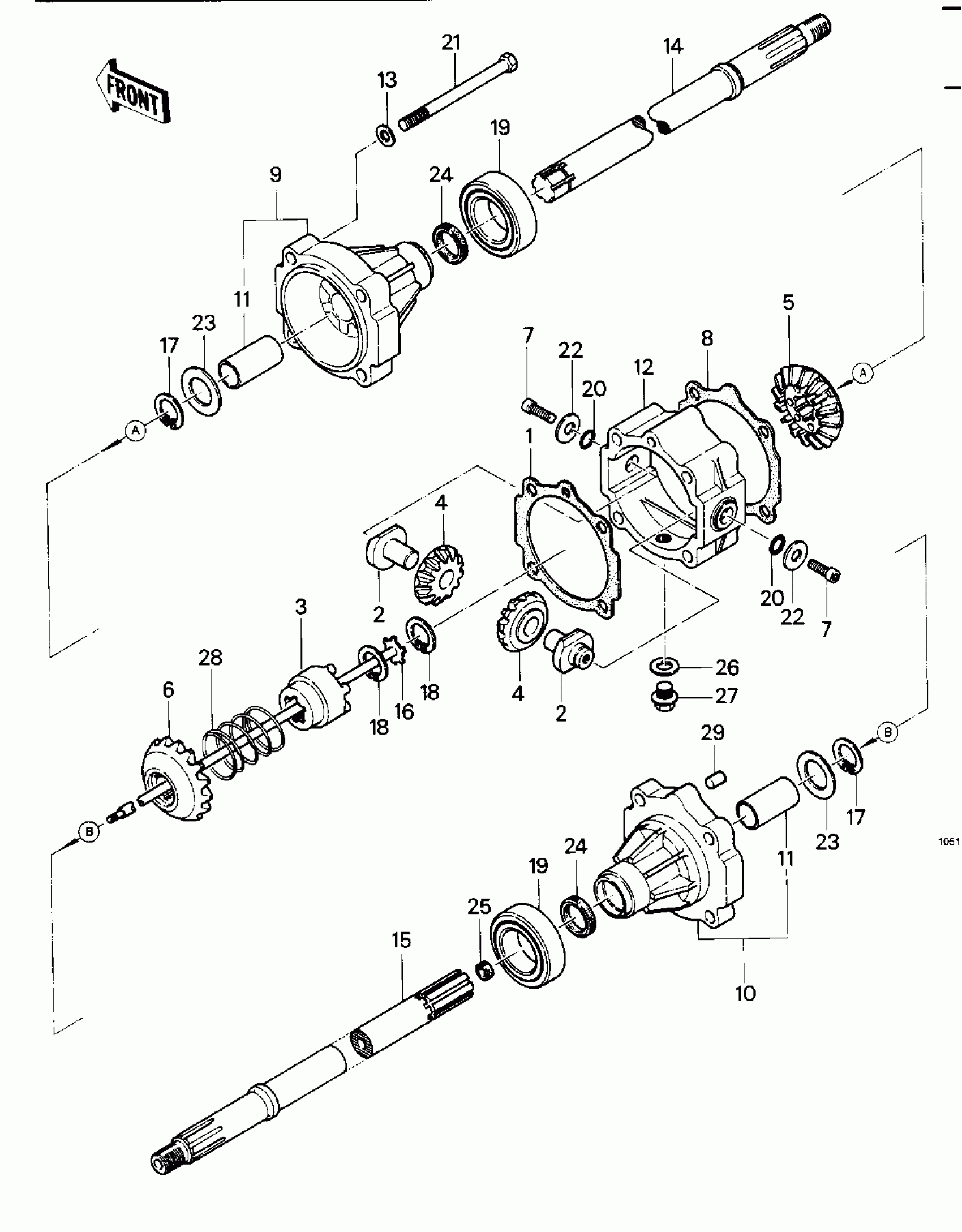

Kawasaki Police REAR AXLE Diagram

#

Description
Price

1

GASKET,DIFFERENTIAL C

11009-1341

Unavailable

2

SHAFT

13107-1042

Unavailable

3

SHIFTER

13139-1004

Unavailable

4

GEAR,BEVEL,10T

16085-4005

$50.46

5

GEAR,BEVEL,16T

16085-4006

$195.25

6

GEAR,BEVEL,16T

16085-4007

$98.12

7

BOLT-SOCKET,8X20

120P0820

Unavailable

8

GASKET,DIFFERENTIAL C

11009-1345

Unavailable

9

CASE,DIFFERENTIAL GEA

32099-1060

$65.64

10

CASE,DIFFERENTIAL GEA

32099-1059

$87.76

11

BUSHING,DIFFERENTIAL

92028-1206

$23.88

12

CASE,DIFFERENTIAL GEA

32099-1040

$115.41

13

WASHER,10.5X18X2.5

92022-1453

$5.05

14

AXLE,RR,RH

41068-1153

Unavailable

15

AXLE,RR,LH

41068-1154

$167.56

16

ROD

46102-4006

$21.61

17

CIRCLIP-TYPE-C,22MM

480J2200

$3.97

18

CIRCLIP-TYPE-C,18MM

481J1800

$3.85

19

BEARING-BALL,#6008UU

601A6008UU

$62.59

20

O RING,12MM

670B2012

$2.58

21

BOLT,10X103

92001-1842

Unavailable

22

WASHER,8.5X23X5.5

92022-1452

$9.14

23

WASHER,22X40X2

92022-4029

$2.88

24

SEAL-OIL

92049-1106

Unavailable

25

SEAL-OIL

92050-075

$9.03

26

WASHER,12X18X1.0

92022-1211

$3.66

27

PLUG,OIL DRAIN,12X15

92066-1174

$4.88

28

SPRING,DIFFERENTIAL,L

92081-1568

$3.31

29

PIN-DOWEL,10X20

551A1020

$3.31
