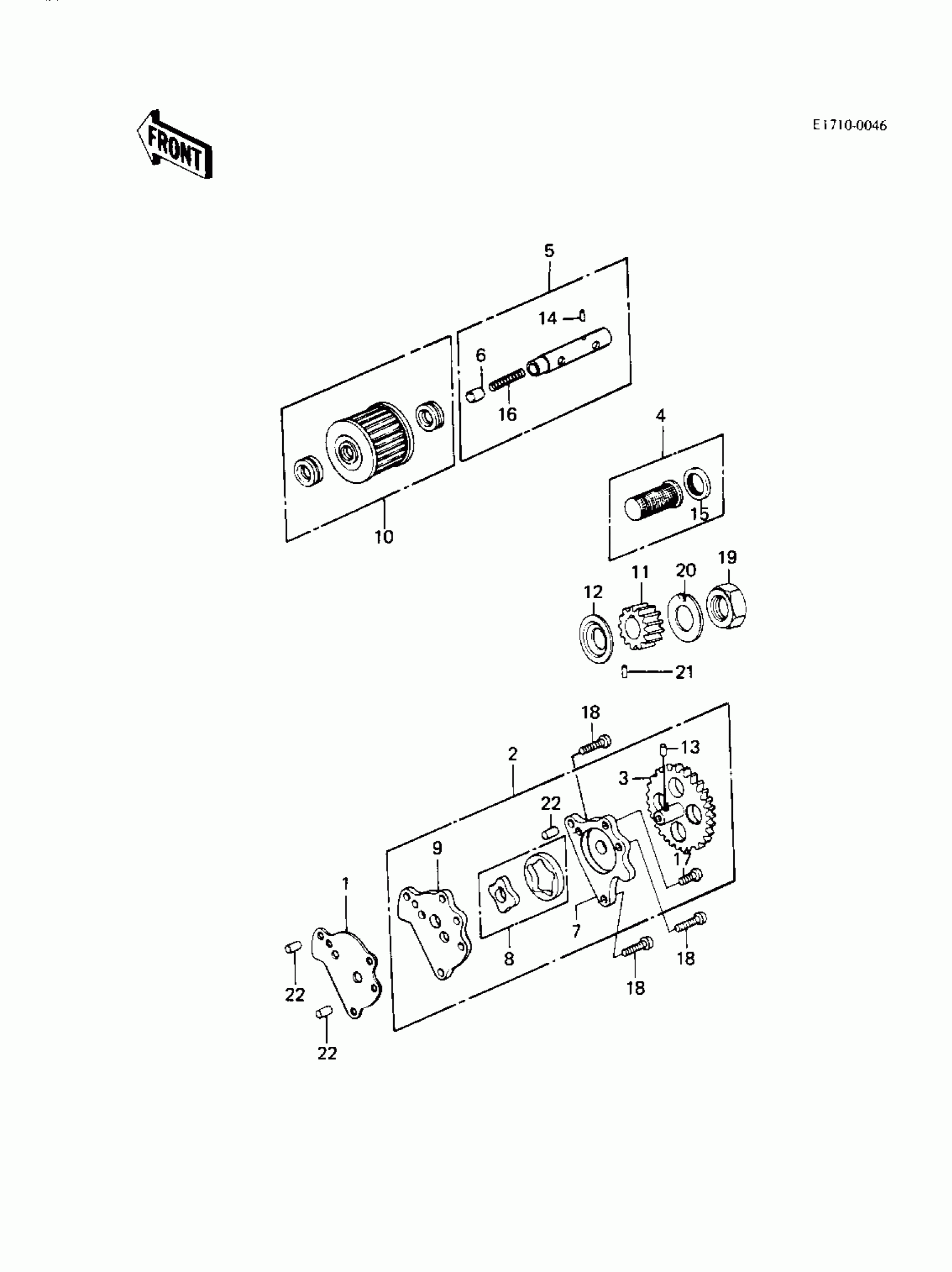

Kawasaki Police OIL PUMP/OIL FILTER Diagram

#

Description
Price

1

GASKET,OIL PUMP

11060-1115

$4.58

2

PUMP ASSY OIL

16082-1015

$185.45

3

GEAR,OIL PUMP

16085-026

Unavailable

4

FILTER-ASSY-OIL

16097-1001

$9.30

5

PISTON-ASSY,VALVE,BY-PASS

16156-002

$18.77

6

VALVE

92136-002

$4.14

7

COVER OIL PUMP

16142-1006

$20.93

8

ROTOR-PUMP

16154-1008

$35.48

9

BODY,OIL PUMP

16141-006

$23.03

10

ELEMENT-OIL FILTER

16099-004

$7.06

11

GEAR,OIL PUMP

16084-018

$10.93

12

WASHER,16X29X1

92022-1377

$4.76

13

PIN,DOWEL,4X12.8

92042-041

$5.71

14

PIN,SPRING,2.2X13.5

92043-123

$4.17

15

GROMMET,OIL STRAINER

92071-100

$4.14

16

SPRING,PISTON

92081-043

$4.14

17

SCREW-PAN-CROS,6X16

220B0616

Unavailable

18

SCREW PAN HEAD 6X25

220B0625

Unavailable

19

NUT 18M/M

315B1800A

Unavailable

20

WASHER-CLAW,16MM

420B1611

Unavailable

21

PIN DOWEL 3X12

551A0312

Unavailable

22

PIN-DOWEL,6X8

551A0608

$3.53
