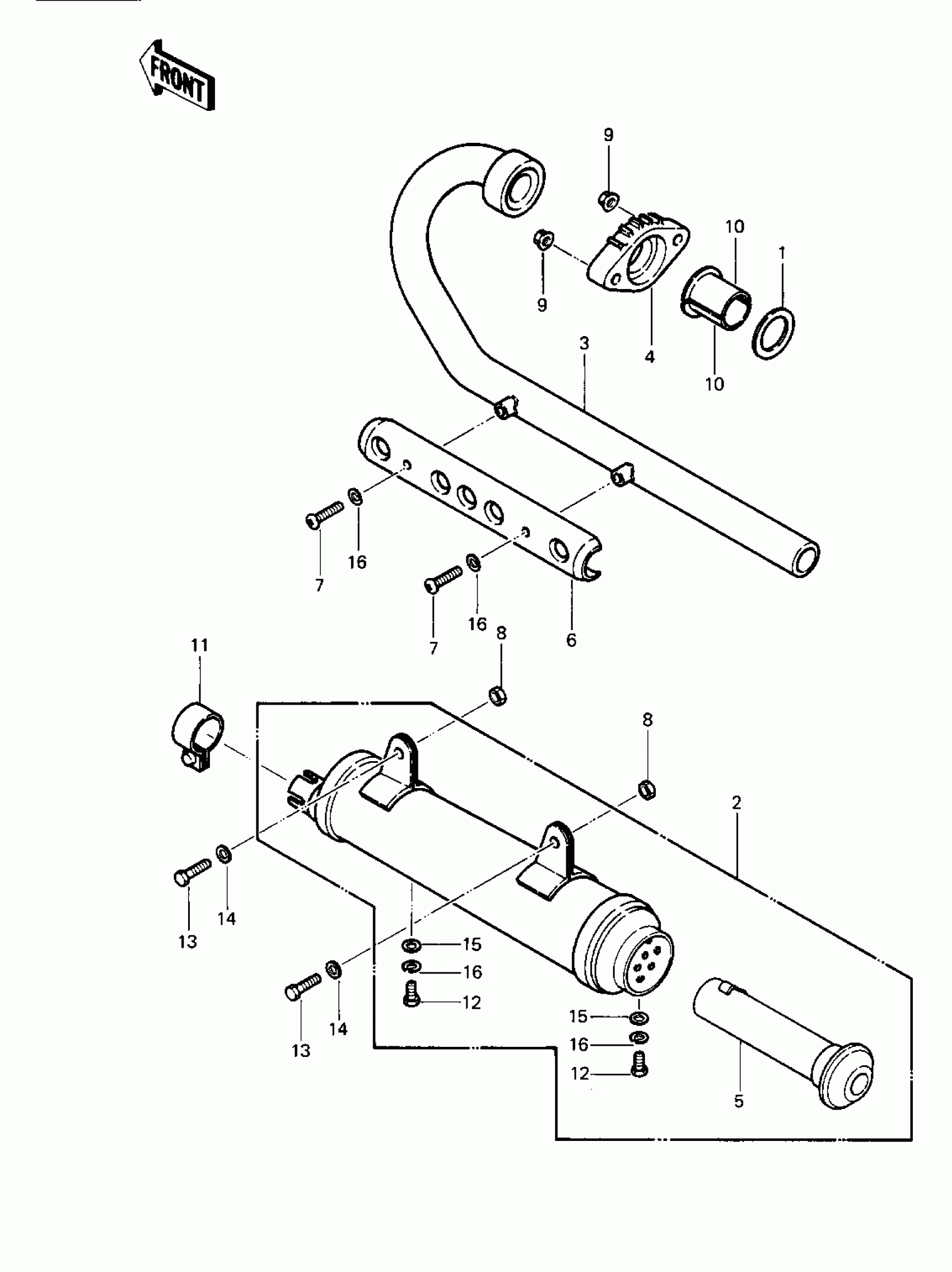

Kawasaki Police MUFFLER Diagram

#

Description
Price

1

GASKET,EXHAUST PIPE H

11009-1866

$6.29

2

MUFFLER

18001-1452

$416.61

3

PIPE-EXHAUST

18049-1153

$82.57

4

HOLDER-EXHAUST PIPE

18069-1014

$14.19

5

BAFFLE-PIPE MUFFLER

49099-1223

Unavailable

6

COVER-EXHAUST PIPE,BL

49107-1004

$14.75

7

SCREW,6X6.7

92009-1054

$2.56

8

NUT,LOCK,8MM

92015-1124

$4.10

9

NUT,8MM

92015-1143

$0.57

10

COLLAR,EXHAUST PIPE

92027-264

$3.60

11

CLAMP,MUFFLER CONNECT

92037-1115

Unavailable

12

BOLT-UPSET,6X12

112G0612

Unavailable

13

BOLT,8X20

115G0820

Unavailable

14

WASHER PLAIN 8MM

410B0800

Unavailable

15

WASHER PLAIN 6MM

411B0600

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable
