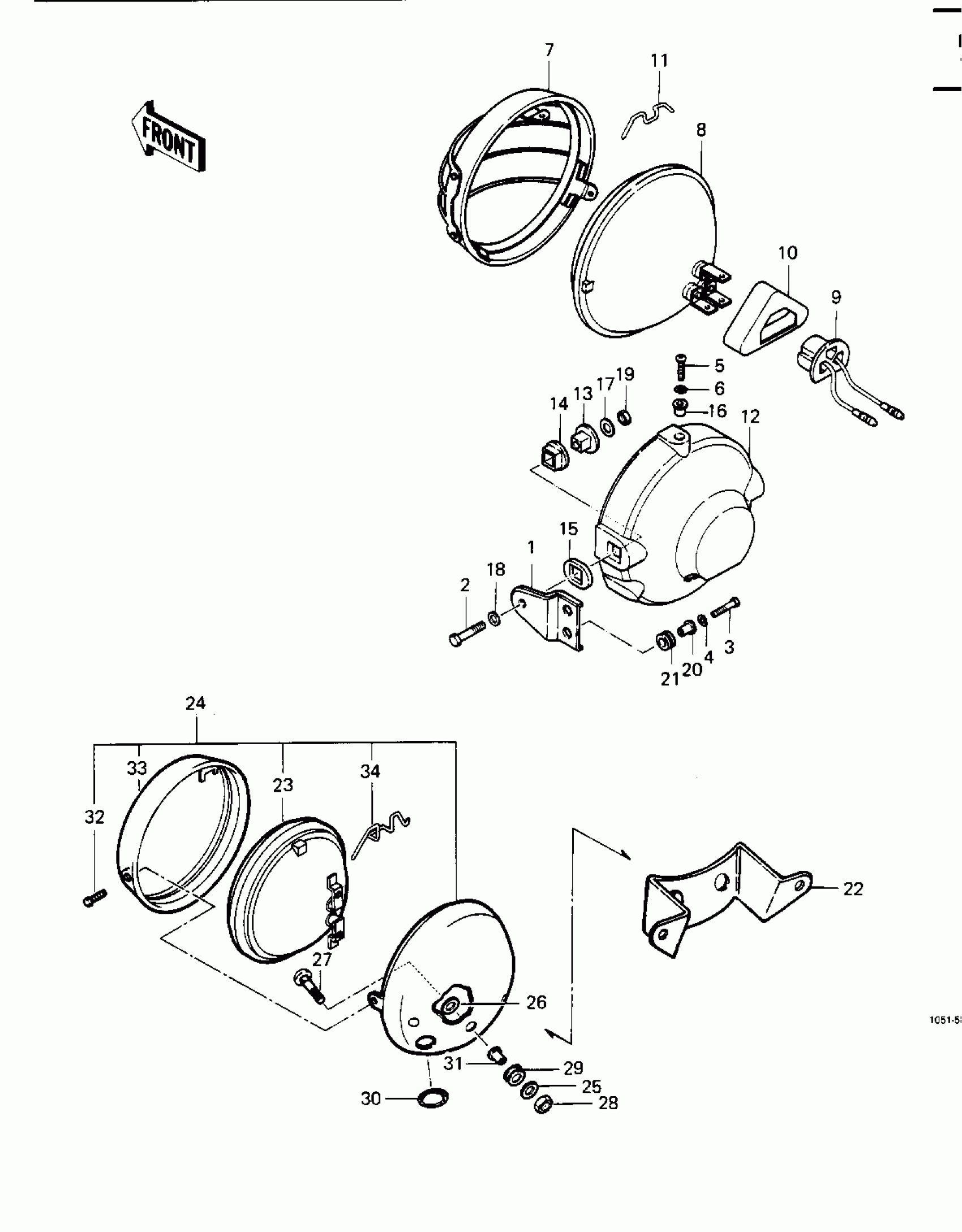

Kawasaki Police HEADLIGHT/PURSUIT LIGHT Diagram

#

Description
Price

1

BRACKET,HEADLAMP,EBNY

11034-4123-8G

Unavailable

2

BOLT-SMALL,8X32

114N0832

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

SCREW-PAN-CROS

220B0512

$0.47

6

WASHER SPRING 5MM

461F0500

Unavailable

7

RIM-LAMP

23006-4003

$112.03

8

LENS-COMP

23007-4002

$65.42

9

SOCKET-ASSY

23008-1125

$14.14

10

COVER,HEAD LAMP SOCKET

23081-001

$7.92

11

SPRING,HEAD LAMP LENS

92081-4025

Unavailable

12

BODY-HEADLAMP,EBONY

23005-4004-8G

$59.47

13

COLLAR,L=15.6

92027-1105

$7.49

14

DAMPER,HEAD LAMP

92075-1077

$7.14

15

DAMPER,HEAD LAMP

92075-1078

$4.92

16

WASHER

23021-010

$3.29

17

WASHER PLAIN 8MM

411B0800

Unavailable

18

WASHER-PLAIN,8MM

411D0800

$2.15

19

NUT,LOCK,8MM

92015-1124

$4.10

20

COLLAR

92027-1045

$4.18

21

DAMPER

92075-277

$1.90

22

BRACKET,HEAD LAMP

11034-4259

Unavailable

23

LENS-COMP,PURSUIT LAMP,RED

23007-1001

$52.64

23

LENS-COMP,PURSUIT LAMP,BLUE

23007-1002

Unavailable

23

LENS-COMP,PURSUIT LAMP,AMBER

23007-1003

Unavailable

24

LAMP-ASSY

23016-4005

$101.01

25

WASHER PLAIN 8MM

410B0800

Unavailable

26

WASHER PLAIN 8MM

411B0800

Unavailable

27

BOLT,CARRIAGE

92001-4015

$0.81

28

NUT,LOCK,6MM

92019-008

$3.12

29

GROMMET

92071-056

$3.25

30

GROMMET

92071-024

$4.14

31

COLLAR

92027-4020

$3.54

32

SCREW,4X8

92009-4011

Unavailable

33

RIM-LAMP,PURSUIT LAMP

23006-4004

$30.98

34

RETAINER,CLIP

14020-1096

$2.14
