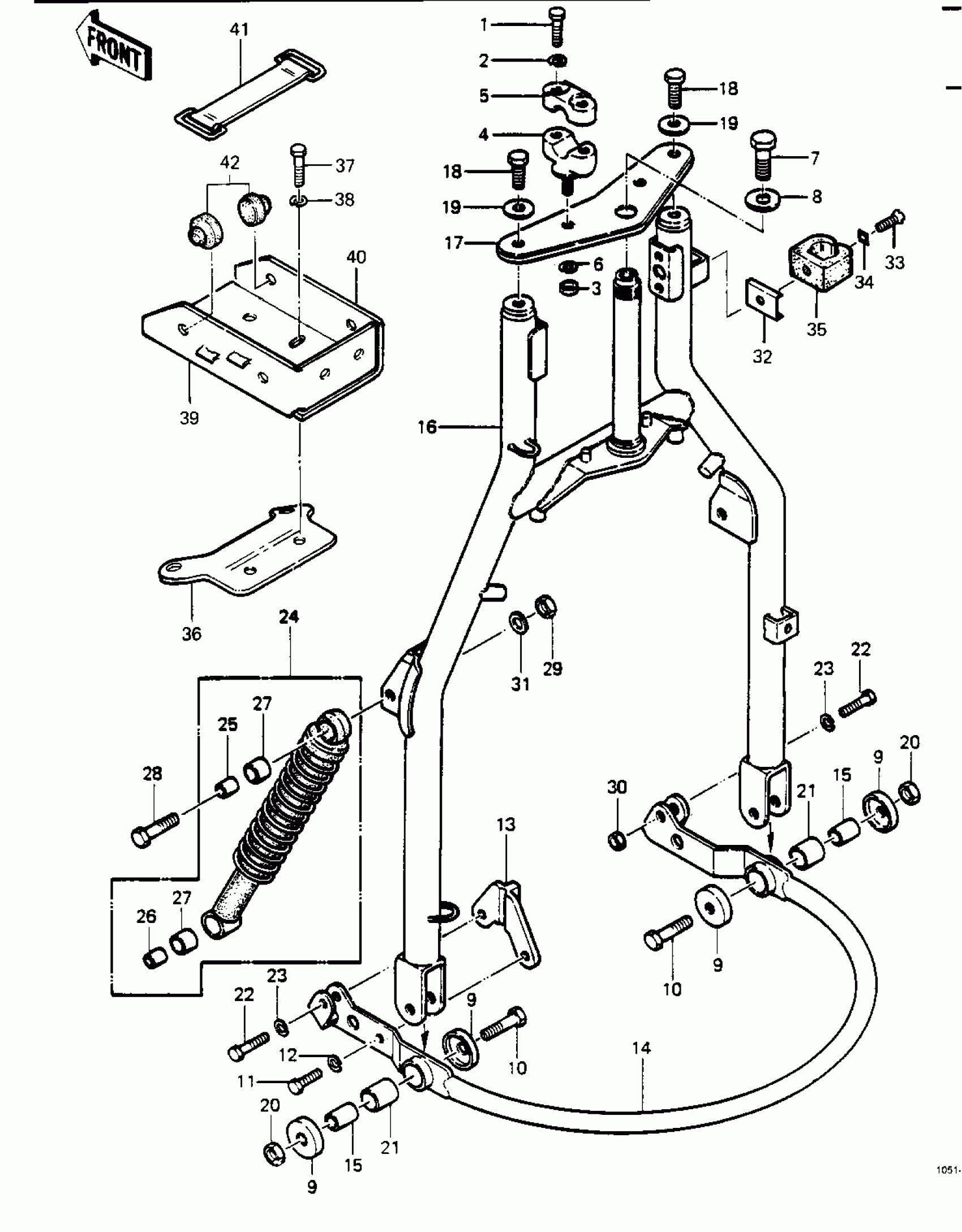

Kawasaki Police FRONT FORK Diagram

#

Description
Price

1

BOLT,8X40

115G0840

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

NUT-HEX-FINE,10MM

314B1000

Unavailable

4

HOLDER,HANDLEBAR,BUFF

46012-002-80

$30.44

5

HOLDER-HANDLE,UPP

46012-004

Unavailable

6

WASHER SPRING 10MM

461F1000

Unavailable

7

BOLT,STEERING STEM

44041-072

Unavailable

8

WASHER,STEERING STEM

44043-056

Unavailable

9

CAP

11012-4004

Unavailable

10

BOLT HEX HEAD 14X55

113B1455

Unavailable

11

BOLT-UPSET,10X20

112B1020

Unavailable

12

WASHER SPRING 10MM

461F1000

Unavailable

13

STOPPER

32085-4006

$17.07

14

ARM-SUSP

39007-4003

$83.98

15

SLEEVE,14X20X25.3

42036-4003

$19.59

16

FORK-FRONT,BLACK

44001-4013-8G

$224.42

17

HOLDER-FORK UPPER

44039-4003

Unavailable

18

BOLT

92001-1742

$18.37

19

WASHER

92022-1381

$9.15

20

NUT-LOCK,14MM

92019-011

Unavailable

21

BUSHING,SWING ARM

92028-4001

Unavailable

22

BOLT,HEX HEAD 10X40

92001-1253

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

SHOCKABSORBER,EBONY

45014-4010-8G

$124.33

25

COLLAR

92027-4023

$2.49

26

COLLAR,SHOCKABSORBER

92027-4024

$3.15

27

DAMPER,SHOCKABSORBER

92075-4030

$14.14

28

BOLT,12X45

92001-4018

$5.49

29

NUT-LOCK,12MM

92019-009

$7.20

30

NUT,LOCK,10MM

92019-021

$4.59

31

WASHER PLAIN 8MM

410B0800

Unavailable

32

BRACKET

11034-4254

Unavailable

33

SCREW-CSK-CROS,6X20

221B0620

$1.71

34

WASHER

92022-4035

$0.55

35

CLAMP

92037-4012

$3.24

36

BRACKET,RADIO CARRIER

11034-4252

Unavailable

37

BOLT-SMALL,8X14

114C0814

Unavailable

38

WASHER SPRING 8MM

461F0800

Unavailable

39

CASE,LH,RADIO

32099-4015

$9.49

40

CASE,RH,RADIO

32099-4016

$9.49

41

BAND,L=142.1

92072-006

$9.70

42

DAMPER,9X24X14

92075-281

$4.67
