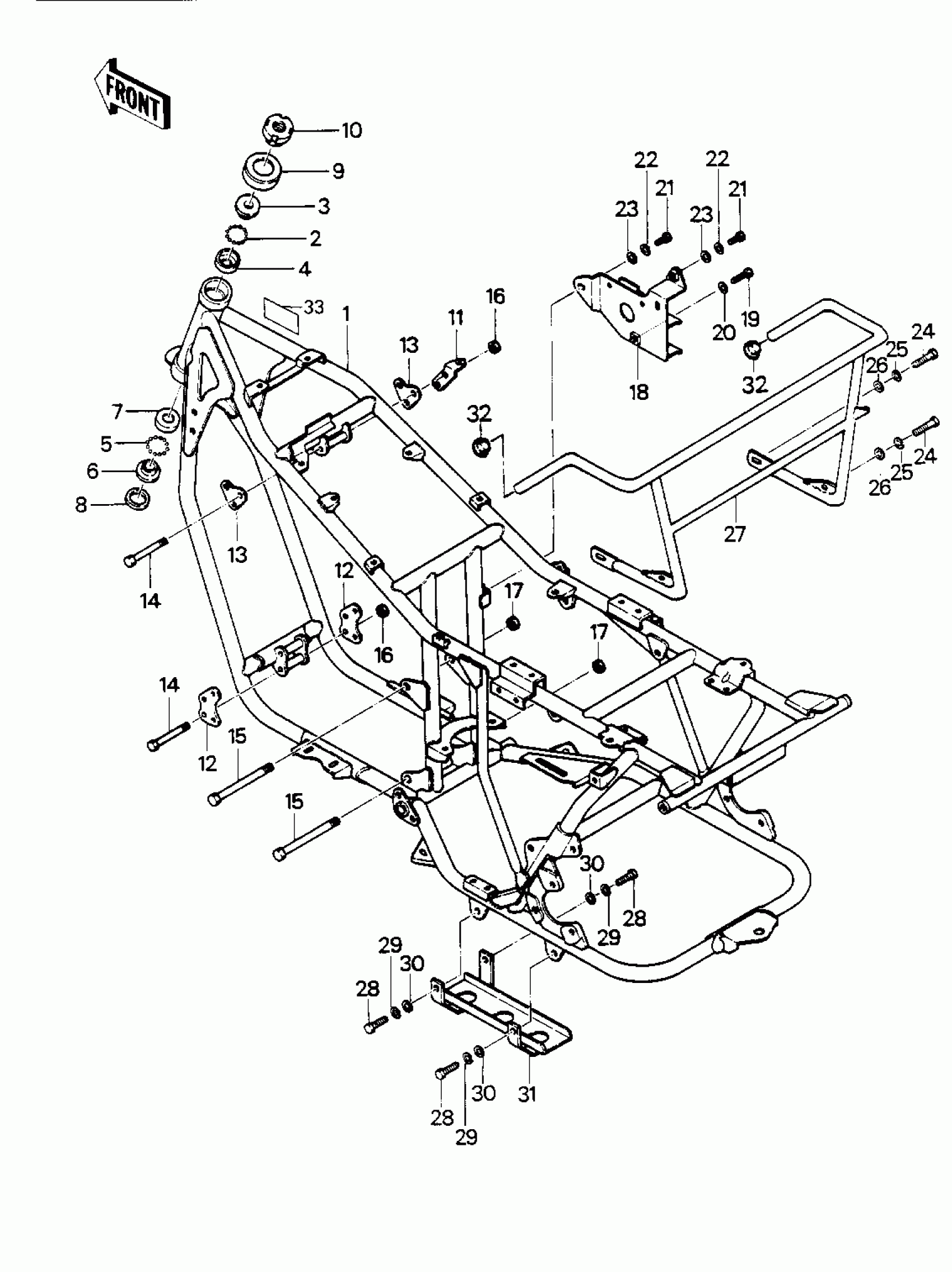

Kawasaki Police FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

FRAME

32002-4018

$677.16

2

BALL-STEEL,3/16

600A0600

$1.02

3

RACE,STEERING STEM BEARING

92047-014

$9.67

4

RACE,STEERING STEM BEARING

92048-009

$10.71

5

BALL-STEEL,1/4

600A0800

$0.59

6

RACE,STEERING STEM BEARING

92047-010

$10.12

7

RACE,STEERING STEM BEARING,LWR

92048-005

$11.83

8

SEAL,STEERING STEM

44010-027

Unavailable

9

CAP,STEERING STEM

46098-012

Unavailable

10

NUT,STEERING STEM

92015-4007

Unavailable

11

BRACKET,IGNITION COIL

11034-4196

Unavailable

12

BRACKET-ENGINE

32029-4022

$9.49

13

BRACKET-ENGINE

32029-4023

$13.42

14

BOLT-FLANGE

92001-1582

Unavailable

15

BOLT,FLANGED,10X110

92001-1602

$10.63

16

NUT,LOCK,8MM

92015-1124

$4.10

17

NUT,LOCK,10MM

92019-021

$4.59

18

BRACKET,ELECTRO BASE

11034-4216

Unavailable

19

BOLT-UPSET,6X16

112G0616

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

BOLT-UPSET 6X14

112B0614

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable

23

WASHER PLAIN 6MM

411B0600

Unavailable

24

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

25

WASHER SPRING 8MM

461F0800

Unavailable

26

WASHER PLAIN 8MM

410B0800

Unavailable

27

GUARD,REAR

55020-4037

$74.98

28

BOLT, HEX HEAD, 8 X 20

114B0820

Unavailable

29

WASHER SPRING 8MM

461F0800

Unavailable

30

WASHER PLAIN 8MM

410B0800

Unavailable

31

GUARD

55020-4016

$21.00

32

PLUG,RR-GUARD

92066-4006

$1.27

33

LABEL,SPECIFICATION

56037-4014

$1.02
