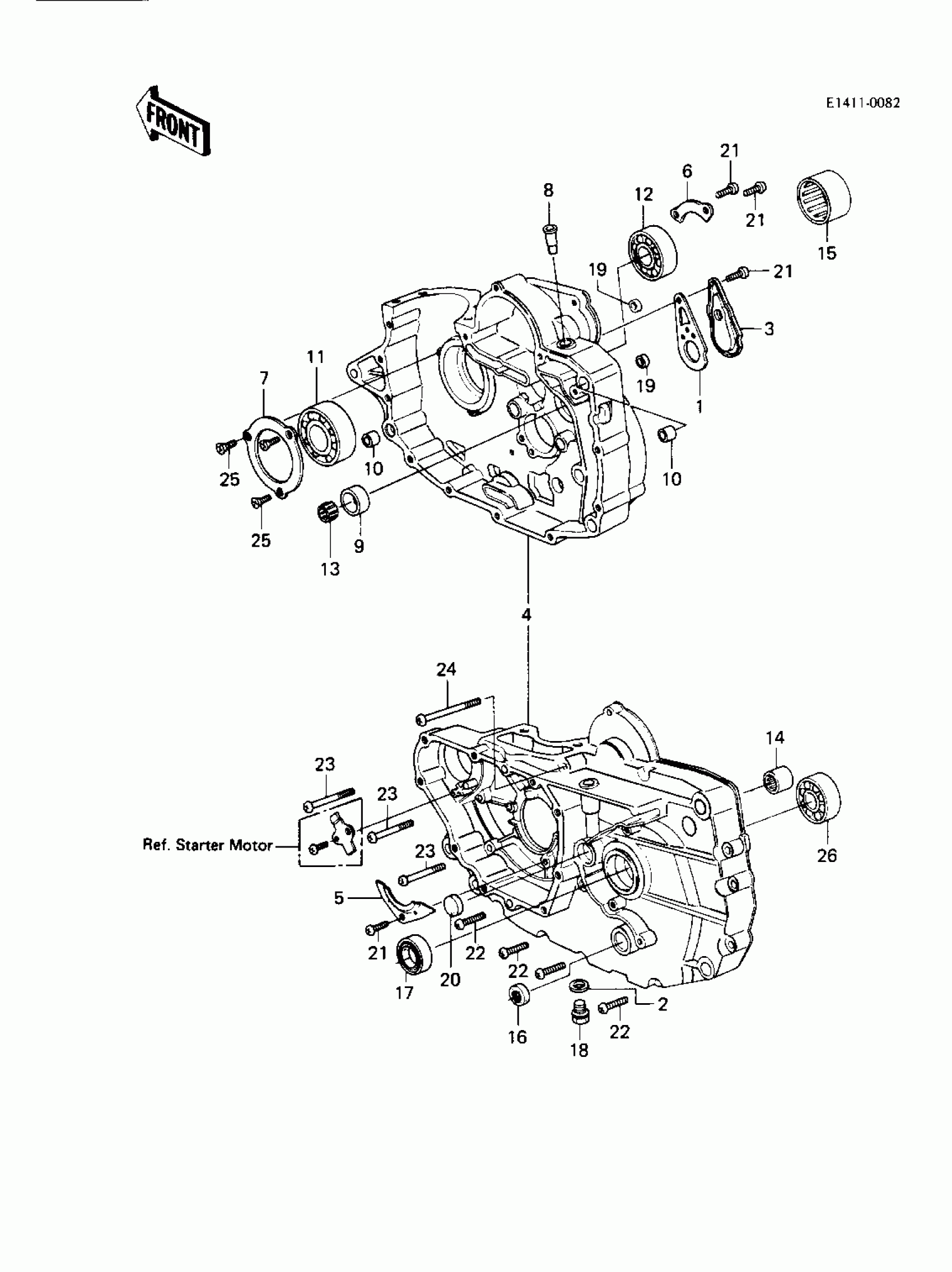

Kawasaki Police CRANKCASE Diagram

#

Description
Price

1

GASKET

16079-002

Unavailable

2

GASKET,12X22X2

92065-097

$0.66

3

CAP

16078-002

$7.47

4

SET-CRANKCASE

14001-5137

Unavailable

5

PLATE,POSITIONING

14014-035

$4.61

6

PLATE-POSITION

14014-037

$4.08

7

PLATE-POSITION,CRANK BEARING

14014-1004

$11.12

8

FITTING,BREATHER

14067-006

$19.78

9

BUSHING,23X30X13

92028-132

$38.79

10

PIN,DOWEL,14X14

92042-032

Unavailable

11

BEARING-BALL,#6306

92045-037

$43.48

12

BEARING,BALL#6006

92045-038

Unavailable

13

BEARING-NEEDLE

92046-1184

$17.18

14

BRG,NEEDLE,HMK1515B

92046-060

Unavailable

15

BEARING-NEEDLE,NK20/1

92046-1183

$42.04

16

SEAL-OIL

92050-082

$6.55

17

SEAL-OIL,TC32457

92049-1159

$6.56

18

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

18

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

19

PLUG

92066-1282

$5.66

20

PLUG

92066-1116

$9.59

21

SCREW-PAN-CROS,6X14

220B0614

$1.14

22

SCREW PAN HEAD 6X30

220B0630

Unavailable

23

SCREW PAN HEAD 6X55

220B0655

$3.14

24

SCREW-PAN-CROS,6X75

220B0675

Unavailable

25

SCREW-CSK-CROS,6X16

221B0616

$0.54

26

BEARING-BALL,#6205C3

601B6205

$14.76
