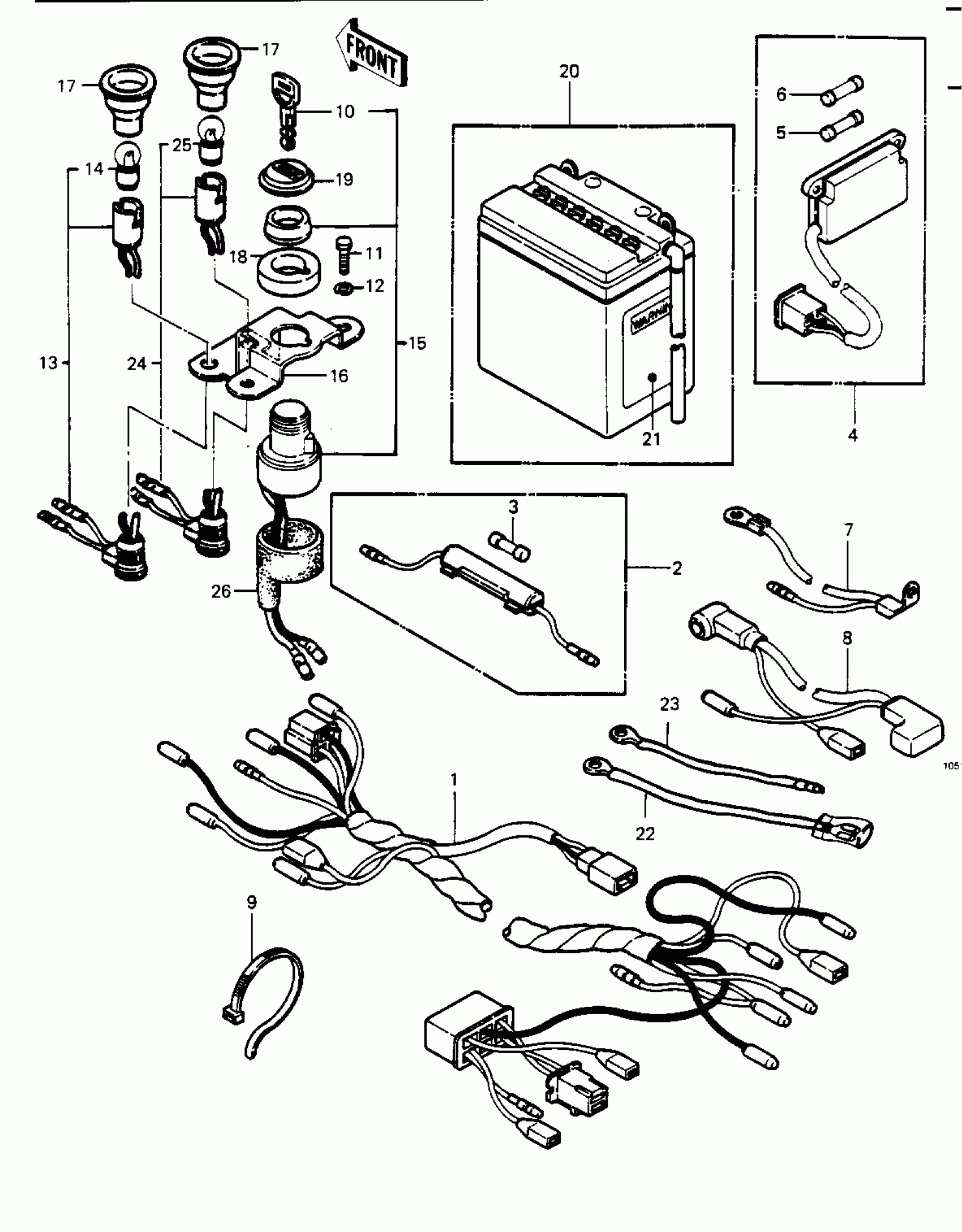

Kawasaki Police CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

HARNESS,MAIN

26001-4026

Unavailable

2

FUSE ASSY

26004-013

Unavailable

3

FUSE,20A,L=25

26006-005

$3.86

4

FUSE-ASSY,ACCESSORY

26004-1016

Unavailable

5

FUSE,10A,L=25

26006-003

$3.59

6

FUSE,30A,L=25

26006-1005

Unavailable

7

WIRE-LEAD,BATTERY GRO

26011-4008

$13.17

8

WIRE-LEAD,BATTERY(+)

26011-4007

Unavailable

9

BAND

92072-3505

Unavailable

10

KEY-LOCK,BLANK

27008-1103

$16.44

11

BOLT-UPSET 6X14

112B0614

Unavailable

12

WASHER SPRING 8MM

461F0800

Unavailable

13

LAMP-ASSY,IGNITION

23016-1025

Unavailable

14

BULB 12V 3W

92069-018

$3.71

15

SWITCH-ASSY-IGNITION

27005-4002

$101.60

16

BRACKET-SWITCH,BLACK

32059-4004

$3.95

17

TUBE,IGNITION SWITCH LAMP

92059-1559

Unavailable

18

DAMPER IGNITION SWITH

92075-4016

Unavailable

19

BOOT

49006-4004

Unavailable

20

FB BAT FB12A-A

26012-1004

$96.88

21

LABEL-WARNING,BATTERY

56040-1036

Unavailable

22

WIRE-LEAD

26011-4012

$4.76

23

WIRE-LEAD

26011-4013

$3.07

24

LAMP-ASSY

23016-4006

$13.42

25

BULB 12V 3W

92069-018

$3.71

26

BOOT,IGNITION SWITCH

49006-4006

$9.17
