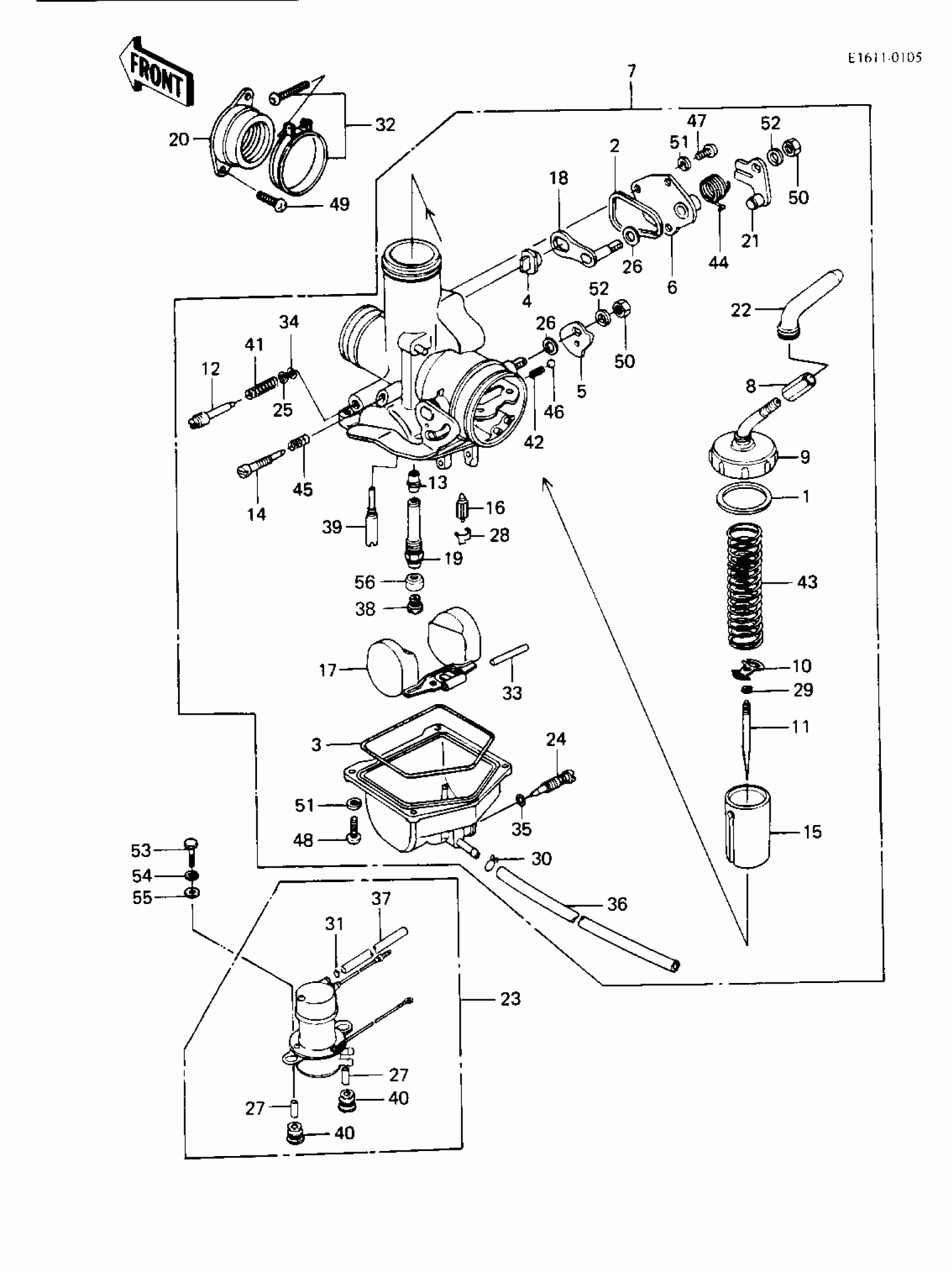

Kawasaki Police CARBURETOR/FUEL PUMP Diagram

#

Description
Price

1

GASKET-MIXING CHAMBER

11009-1278

Unavailable

2

GASKET-FAST IDLE

11009-1279

Unavailable

3

O RING,FLOAT CHAMBER

16019-024

Unavailable

4

GUIDE-THROTTLE

13070-1060

Unavailable

5

PLATE-CHOKE CAM

13169-1492

Unavailable

6

COVER-FAST IDLE

14025-1452

Unavailable

7

CARBURETOR

16001-1912

Unavailable

8

ADJUSTER,CABLE

16002-1002

Unavailable

9

CHAMBER-MIXING,TOP

16005-1014

Unavailable

10

SEAT-SPRING,THROTTLE

16007-1049

Unavailable

11

NEEDLE-JET

16009-1104

Unavailable

12

SCREW-PILOT AIR

16014-1029

$17.85

13

NEEDLE JET

16017-1001

Unavailable

14

SCREW-THROTTLE STOP

16021-1037

Unavailable

15

VALVE-THROTTLE,#2

16025-1064

$122.02

16

VALVE-FLOAT

16030-1007

$42.48

17

FLOAT

16031-1001

Unavailable

18

SHAFT-CARB,FAST IDLE

16041-1026

$15.29

19

HOLDER-NEEDLE JET

16065-1053

$29.87

20

HOLDER-CARBURETOR

16065-1064

Unavailable

21

ARM-IDLE PLATE

21083-1013

$11.75

22

CAP,CABLE ADJUSTER

49006-1007

Unavailable

23

PUMP-FUEL

49040-1006

Unavailable

24

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

25

WASHER,PLAIN

92022-1003

$3.29

26

WASHER-CHOKE CAM

92022-1308

$4.12

27

COLLAR,6X22

92027-1581

Unavailable

28

CLAMP,FLOAT VALVE

16044-007

$6.04

29

CIRCLIP,JET NEEDLE

92037-1039

Unavailable

30

CLAMP,TUBE

92037-1142

$3.29

31

CLAMP,FUEL TUBE

92037-1395

$2.71

32

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

33

PIN,FLOAT

92043-1002

Unavailable

34

RING-O,PILOT ADJUST

92055-1002

$3.29

35

RING-O

92055-1053

$3.24

36

HOSE,FUEL OVERFLOW

92059-1046

Unavailable

37

TUBE,4.5X8.5X700

92059-1283

$4.25

38

JET-MAIN,#105

92063-1009

Unavailable

38

JET-MAIN,#108

92063-1116

Unavailable

38

JET-MAIN,#112

92063-1117

Unavailable

38

JET-MAIN,#115

92063-1118

Unavailable

39

JET-PILOT #42

92064-1048

Unavailable

40

DAMPER,FUEL PUMP

92075-1481

Unavailable

41

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

42

SPRING

92081-1249

$7.44

43

SPRING-THROTTLE VALVE

92081-1435

$8.44

44

SPRING-FAST IDLE

92081-1436

$3.49

45

SPRING-THROTTLE STOP

92081-1437

$3.14

46

BALL-CHOKE CAM

92140-1007

$5.53

47

SCREW PAN HEAD 4X8

220B0408

Unavailable

48

SCREW-PAN-CROS

220B0414

Unavailable

49

SCREW-PAN-CROS,6X14

220B0614

$1.14

50

NUT-HEX

311B0500

$0.47

51

WASHER SPRING 4MM

461F0400

Unavailable

52

WASHER SPRING 5MM

461F0500

Unavailable

53

BOLT 6X35

110R0635

Unavailable

54

WASHER SPRING 8MM

461F0800

Unavailable

55

WASHER,6.5X16X2

92022-1565

$2.99

56

HOLDER-CARBURETOR

16065-1075

$9.49
