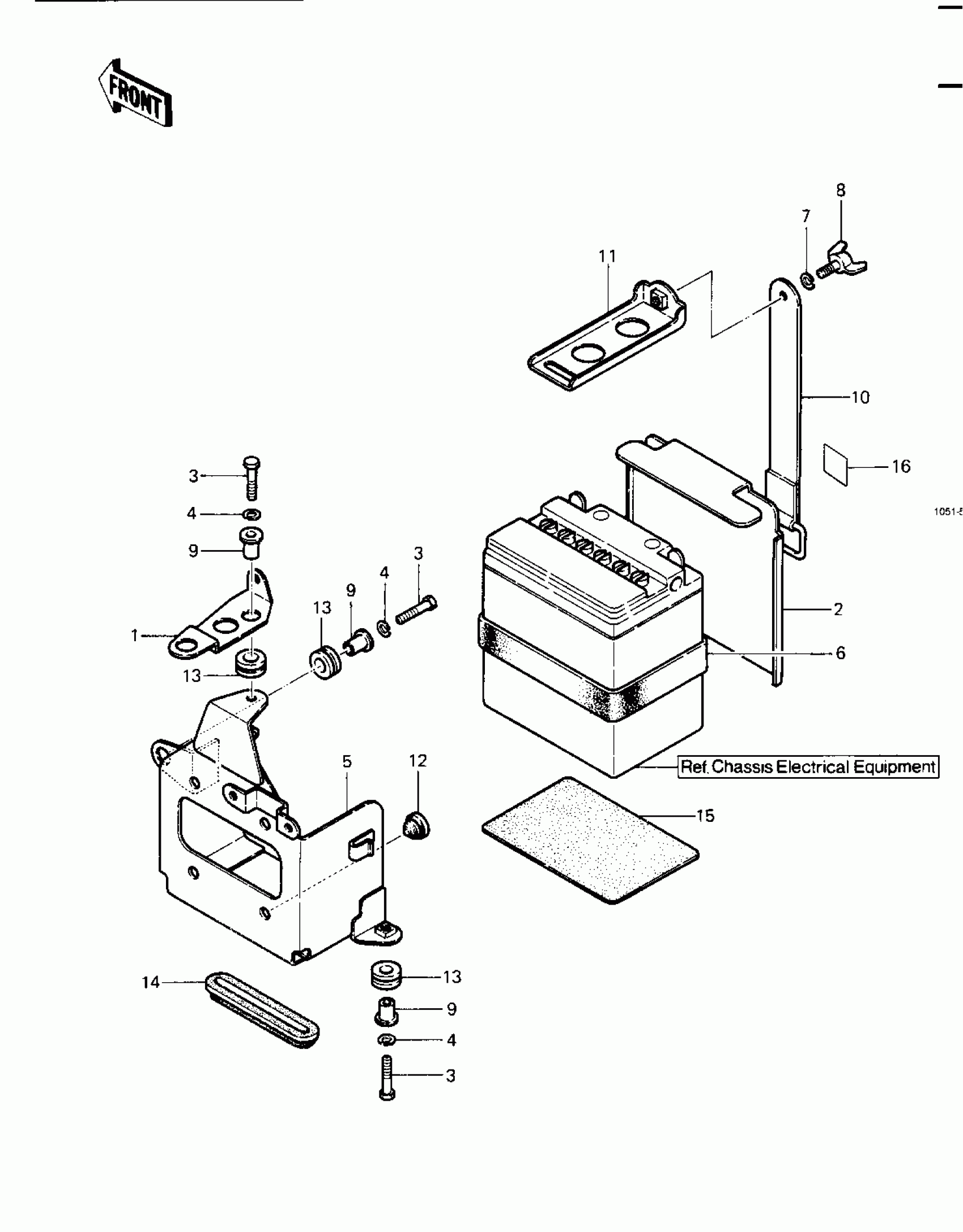

Kawasaki Police BATTERY CASE Diagram

#

Description
Price

1

BRACKET,BATTERY CASE

11034-4213

Unavailable

2

COVER

14025-4007

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

CASE-BATTERY

32097-4006

$42.51

6

DAMPER,BATTERY BOTTOM

32103-023

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

BOLT,CLNR ELEMENT

92003-199

$8.92

9

COLLAR

92027-1045

$4.18

10

BAND,BATTERY

92072-4005

$58.73

11

BAND,BATTERY

92072-4006

Unavailable

12

DAMPER,RUBBER

92075-078

$3.35

13

DAMPER

92075-277

$1.90

14

DAMPER

92075-280

Unavailable

15

DAMPER,BATTRY CASE

92075-4019

$1.41

16

LABEL-BATTERY VENT

56031-4009

$2.68
