Description

Price

1

VALVE-INTAKE

12004-1013

$47.68

2

VALVE-EXHAUST

12005-1011

$83.10

3

RETAINER-VALVE SPRING

12009-005

$10.37

4

COLLET,RETAINER

12011-004

$4.34

5

TAPPET

12032-1002

$64.28

6

SEAT-SPRING,VALVE

16007-1024

$5.15

7

SPRING-ENGINE VALVE,INNER

49078-1001

$15.64

8

SPRING-ENGINE VALVE,OUTER

49078-1002

$15.64

9

SHIM,T=2.00

12037-001

$18.02

9

SHIM,T=2.05

12037-002

$18.02

9

SHIM,T=2.10

12037-003

$18.02

9

SHIM,T=2.15

12037-004

$18.02

9

SHIM,T=2.20

12037-005

$18.02

9

SHIM,T=2.25

12037-006

$18.02

9

SHIM,T=2.25

12037-006

$18.02

9

SHIM,T=2.30

12037-007

Unavailable

9

SHIM,T=2.35

12037-008

$18.02

9

SHIM,T=2.40

12037-009

$18.02

9

SHIM,T=2.45

12037-010

$18.02

9

SHIM,T=2.50

12037-011

$18.02

9

SHIM,T=2.55

12037-012

$18.02

9

SHIM,T=2.60

12037-013

$18.02

9

SHIM,T=2.65

12037-014

$18.02

9

SHIM,T=2.70

12037-015

$18.02

9

SHIM,T=2.75

12037-016

$18.02

9

SHIM,T=2.80

12037-017

$15.15

9

SHIM,T=2.85

12037-018

$18.02

9

SHIM,T=2.90

12037-019

$18.02

9

SHIM,T=2.95

12037-020

$18.02

9

SHIM,T=3.00

12037-021

$15.15

9

SHIM,T=3.05

12037-022

$18.02

9

SHIM,T=3.10

12037-023

$18.02

9

SHIM,T=3.15

12037-024

$18.02

9

SHIM,T=3.20

12037-025

$18.02

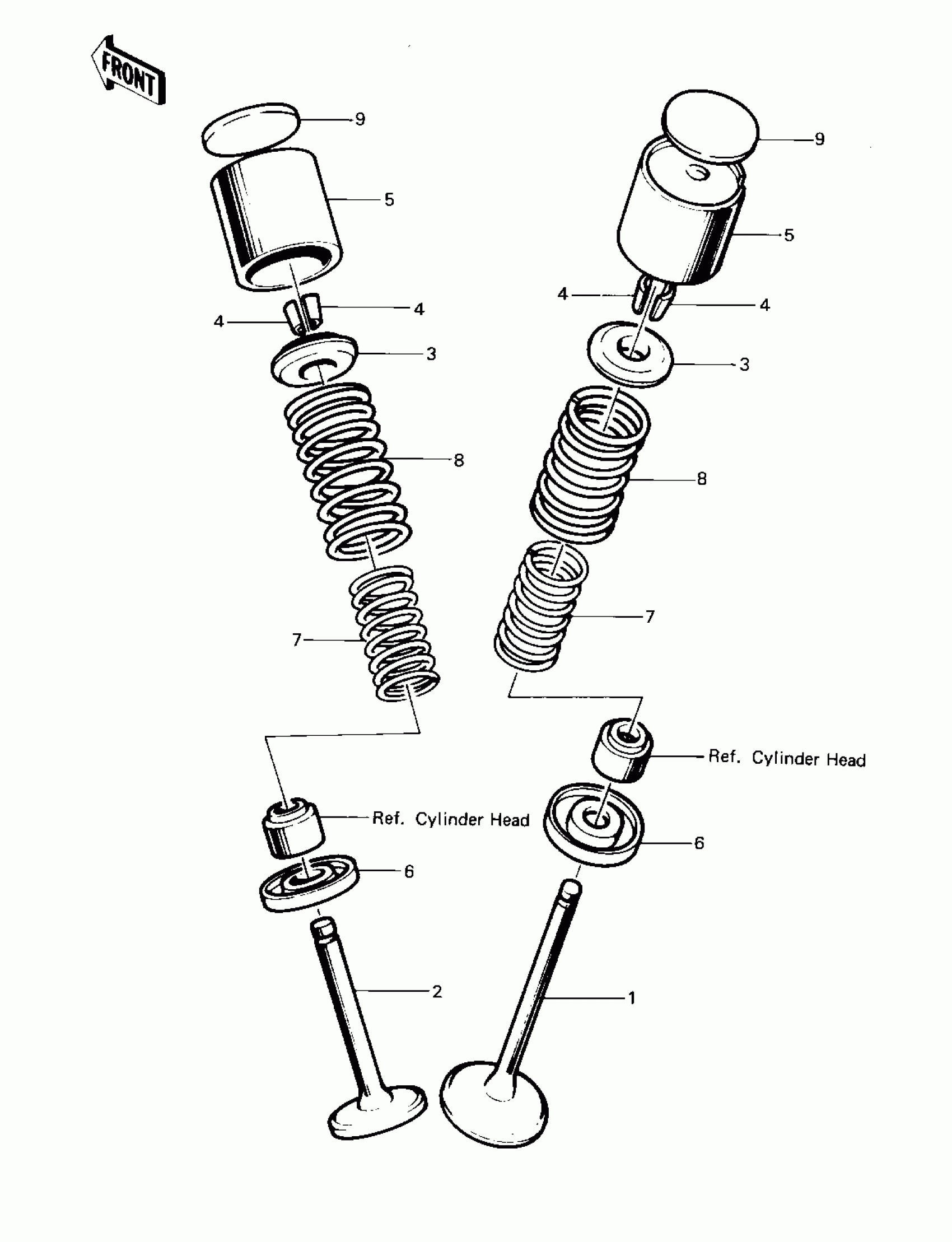

Kawasaki Police 1000 VALVES Diagram

SHIM,T=2.30
