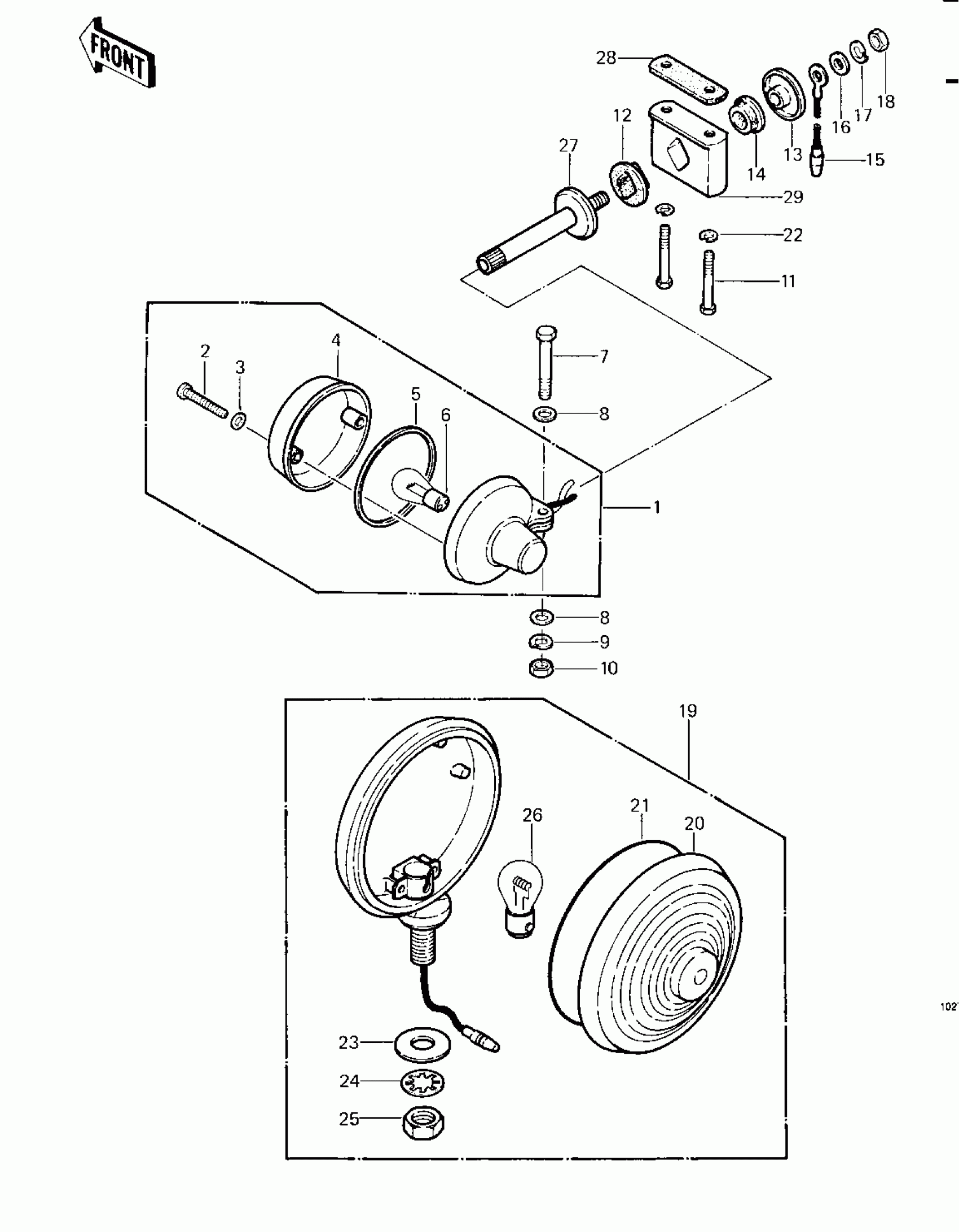

Kawasaki Police 1000 TURN SIGNALS ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

LAMP-SIGNAL,RH

23040-1005

$91.82

1

LAMP-SIGNAL,LH

23040-1006

$91.82

2

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

3

WASHER,PLAIN,4MM

23058-002

$2.05

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$8.69

5

GASKET,TURN SIGNAL LAMP

23050-002

$4.41

6

BULB,12V 32/3CP(23/8W)

92069-060

$7.70

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

BOLT-SMALL-UPSET

115G0855

$5.34

12

DAMPER,TURN SIGNAL FITTING

92075-1014

$9.71

13

COLLAR,SIGNAL LAMP

92027-1025

$7.98

14

DAMPER RUBBER,SIG LM

92075-158

$4.34

15

WIRE-LEAD,L=285

26011-095

$11.12

16

WASHER-PLAIN,10MM

411B1000

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable

18

NUT-HEX-FINE,10MM

315B1000

Unavailable

19

LAMP-SIGNAL,RR

23040-055

$57.49

20

LENS-SIGNAL LAMP,REAR,AMBER

23048-018

Unavailable

20

LENS-SIGNAL LAMP,REAR,RED

23048-019

$11.53

20

LENS-SIGNAL LAMP,REAR,BLUE

23048-020

Unavailable

21

RING-O

92055-103

$7.95

22

WASHER SPRING 8MM

461F0800

Unavailable

23

GASKET OIL PIPE BANJO

92065-037

$3.14

24

WASHER LOCK 12MM

464G1200

$0.45

25

NUT-UNF SC,16MM

340BA1600

$1.39

26

BULB,12V 32CP(23W)

92069-055

$4.12

27

BRACKET-SIGNAL LAMP

23051-1014

$39.78

28

DAMPER

92075-4022

Unavailable

29

BRACKET-SIGNAL LAMP,FR

23051-4002

$50.59
