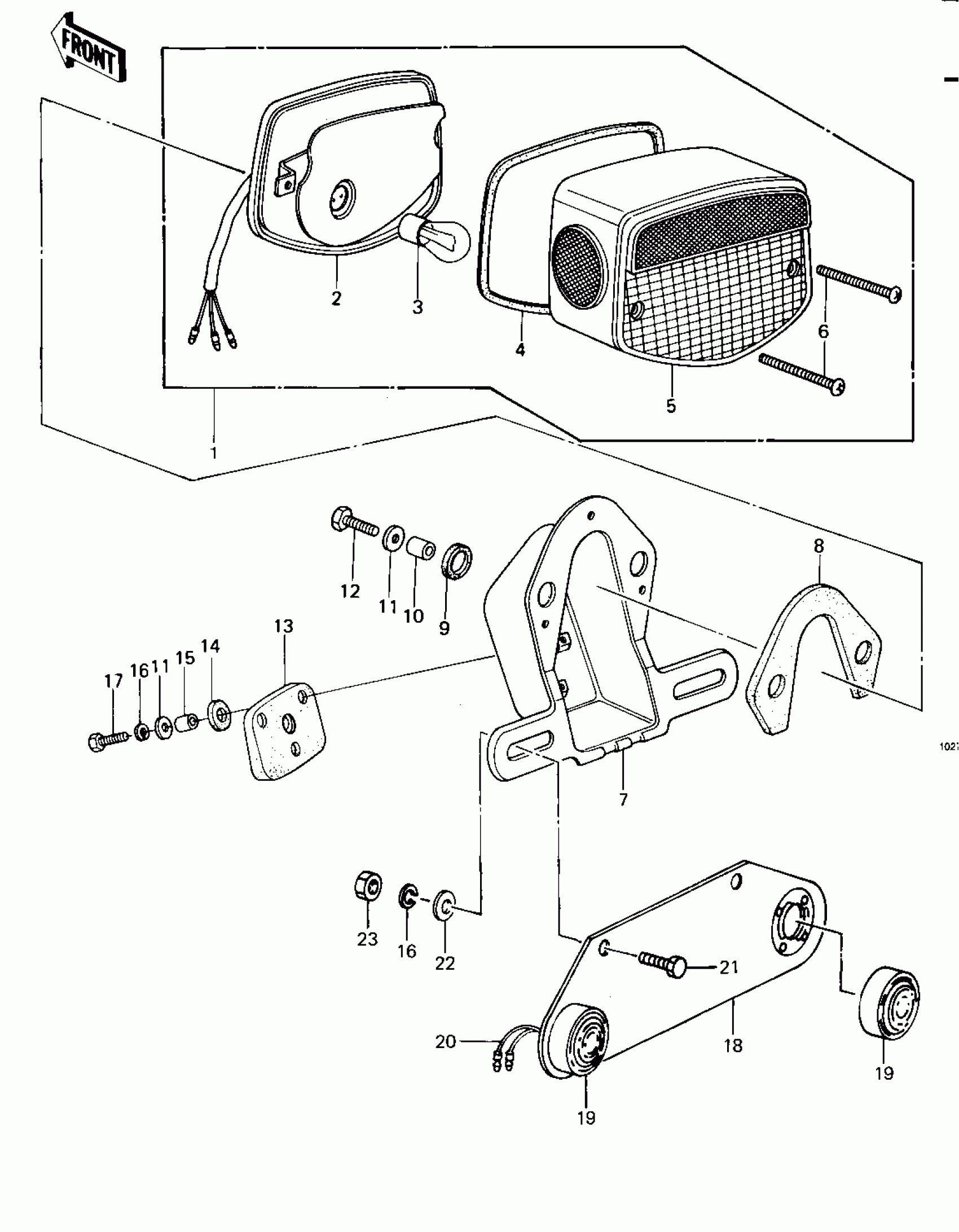

Kawasaki Police 1000 TAILIGHT ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

2

BODY-COMP-TAIL LAMP

23027-041

$130.76

3

BULB,12V 27/8W

92069-059

$6.45

4

GASKET,TAIL LAMP LENS

23028-021

$11.83

5

LENS,TAIL LAMP

23026-034

$78.61

6

SCREW-PAN-CROS

220R0460

Unavailable

7

UNAVAILABLE IN PRICE BOOK

26036-046

Unavailable

8

DAMPER

23066-023

$16.51

9

DAMPER

23066-020

Unavailable

10

COLLAR,6.8X10X8.5

92027-129

$3.97

11

WASHER,6.5X20X1.6

92022-125

$1.25

12

BOLT 6X22

112B0622

Unavailable

13

DAMPER,TAIL LAMP

35039-004

Unavailable

14

DAMPER,FENDER

92075-121

$3.63

15

COLLAR,6.8X10X14.5

92027-156

$3.97

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET

112G0625

Unavailable

18

BRACKET-COMP,LICENSE PLATE

23062-1002

Unavailable

19

LAMP-ASSY,ID,BLUE

23065-003

Unavailable

19

LAMP-ASSY,ID,RED

23065-004

$22.83

19

UNAVAILABLE IN PRICE BOOK

26065-005

Unavailable

20

HARNESS,ID LIGHT

26001-4001

$9.03

21

BOLT-UPSET,6X20

112G0620

Unavailable

22

WASHER PLAIN

92022-024

$2.92

23

NUT 6MM

311B0600

Unavailable
