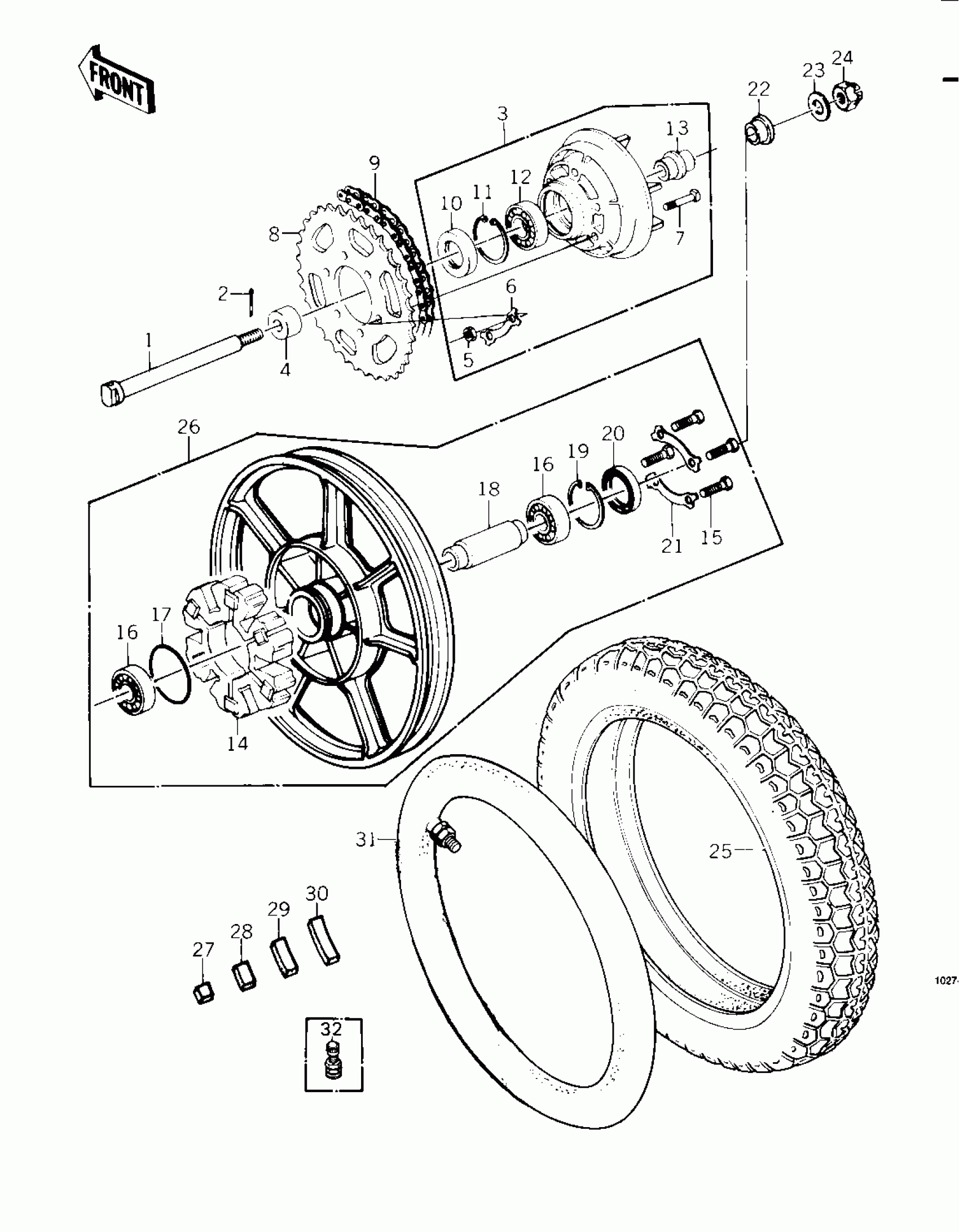

Kawasaki Police 1000 REAR WHEEL/TIRE/HUB/CHAIN ('79-'81 C2/C3 Diagram

#

Description
Price

1

AXLE,REAR

42031-034

$144.85

2

PIN-COTTER,4.0X35

550D4035

$1.81

3

COUPLING ASSY,RR HUB

42008-040

$232.28

4

COLLAR,REAR AXLE

42032-071

Unavailable

5

NUT,10MM

42045-005

$6.34

6

WASHER LOCK

92088-007

$12.61

7

BOLT-REAR SPROCKET

92003-087

Unavailable

8

REAR SPROCKET,35T

42041-1032

$129.83

9

DR CHAIN 630X92

92057-107

Unavailable

10

SEAL-OIL,AJN40627

92050-027

$19.42

11

RING-SNAP,62MM

92033-1044

$8.95

12

BALL BEARING,#6206

601B6206

$20.68

13

SLEEVE,RR HUB COUPLN

42036-033

Unavailable

14

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

15

BOLT

92001-158

Unavailable

16

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

17

O RING,65MM

671B2565

$7.04

18

SPACER,RR HUB BEARIN

42010-039

Unavailable

19

RING-SNAP,52MM

92033-1043

$6.41

20

SEAL-OIL,TWC35527

92052-006

Unavailable

21

WASHER,LOCK

92088-023

$11.33

22

COLLAR,REAR AXLE

42032-080

$100.63

23

WASHER,20.3X34X4.5

92022-248

Unavailable

24

NUT,CASTLE,18MM

42045-018

$7.31

25

TIRE MR90-18 K327M R

41002-4022

$410.18

26

SOLID WHEEL ASSY,REA

41073-1020

$514.78

27

BALANCER-WHEEL,5G

41075-005

$2.03

28

BALANCER-WHEEL,10G

41075-006

$3.68

29

BALANCER-WHEEL,20G

41075-007

$2.41

30

BALANCER-WHEEL,30G

41075-008

$2.86

32

VALVE,TIRE

16126-1136

$36.68
