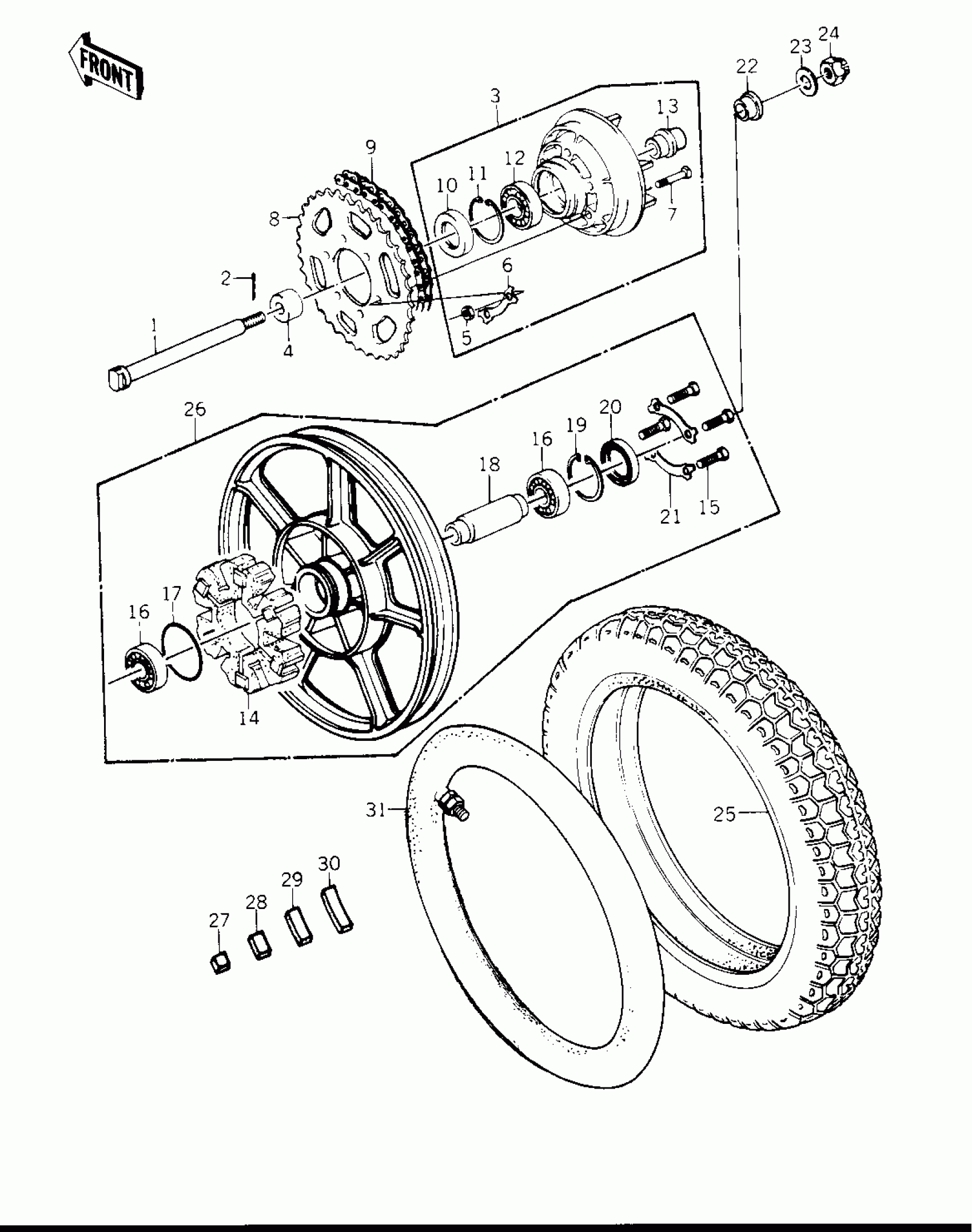

Kawasaki Police 1000 REAR WHEEL/TIRE/HUB/CHAIN ('78 C1/C1A) Diagram

#

Description
Price

1

AXLE,REAR

42031-034

$144.85

2

PIN-COTTER,4.0X35

550D4035

$1.81

3

COUPLING ASSY,RR HUB

42008-040

$232.28

4

COLLAR,REAR AXLE

42032-071

Unavailable

5

NUT,10MM

42045-005

$6.34

6

WASHER LOCK

92088-007

$12.61

7

BOLT-REAR SPROCKET

92003-087

Unavailable

8

REAR SPROCKET,37T

42041-1005

$110.80

9

DR CHAIN 630X94

92057-1003

$205.86

10

SEAL-OIL,AJN40627

92050-027

$19.42

11

RING-SNAP,62MM

92033-1044

$8.95

12

BALL BEARING,#6206

601B6206

$20.68

13

SLEEVE,RR HUB COUPLN

42036-033

Unavailable

14

DAMPER,RR HUB SHOCK,"1000"

42014-033

$114.22

15

BOLT

92001-158

Unavailable

16

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

17

O RING,65MM

671B2565

$7.04

18

SPACER,RR HUB BEARIN

42010-039

Unavailable

19

RING-SNAP,52MM

92033-1043

$6.41

20

UNAVAILABLE IN PRICE BOOK

92052-066

Unavailable

21

WASHER,LOCK

92088-023

$11.33

22

COLLAR,REAR AXLE

42032-080

$100.63

23

WASHER,20.3X34X4.5

92022-248

Unavailable

24

NUT,CASTLE,18MM

42045-018

$7.31

25

TIRE MR90-18 K327M R

41002-4022

$410.18

26

41073-1020 (Canada)

41073-1007

$514.78

26

SOLID WHEEL ASSY,REA

41073-1020

$514.78

27

BALANCER-WHEEL,5G

41075-005

$2.03

28

BALANCER-WHEEL,10G

41075-006

$3.68

29

BALANCER-WHEEL,20G

41075-007

$2.41

30

BALANCER-WHEEL,30G

41075-008

$2.86

31

TUBE,REAR W18-19

41022-4002

$20.12
