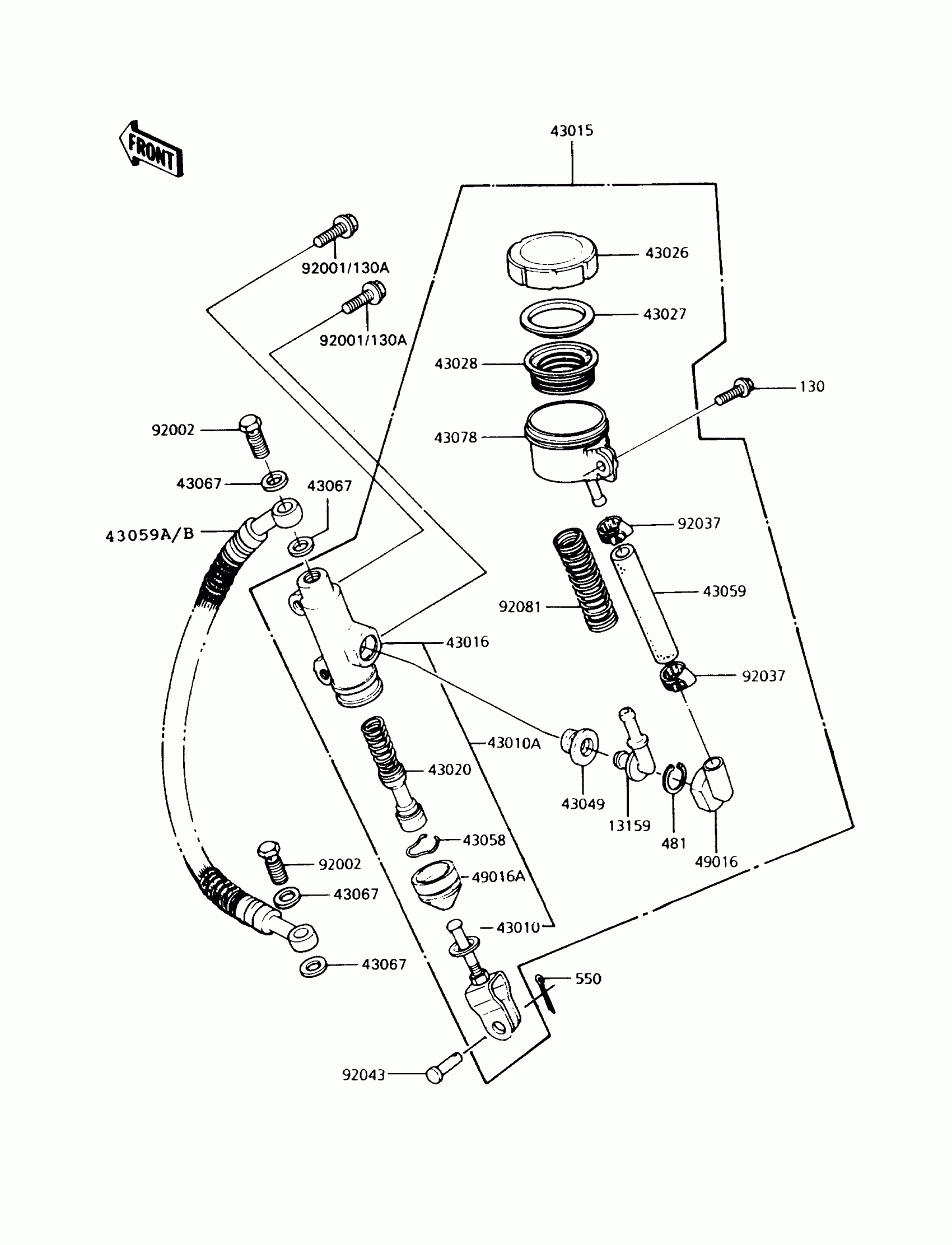

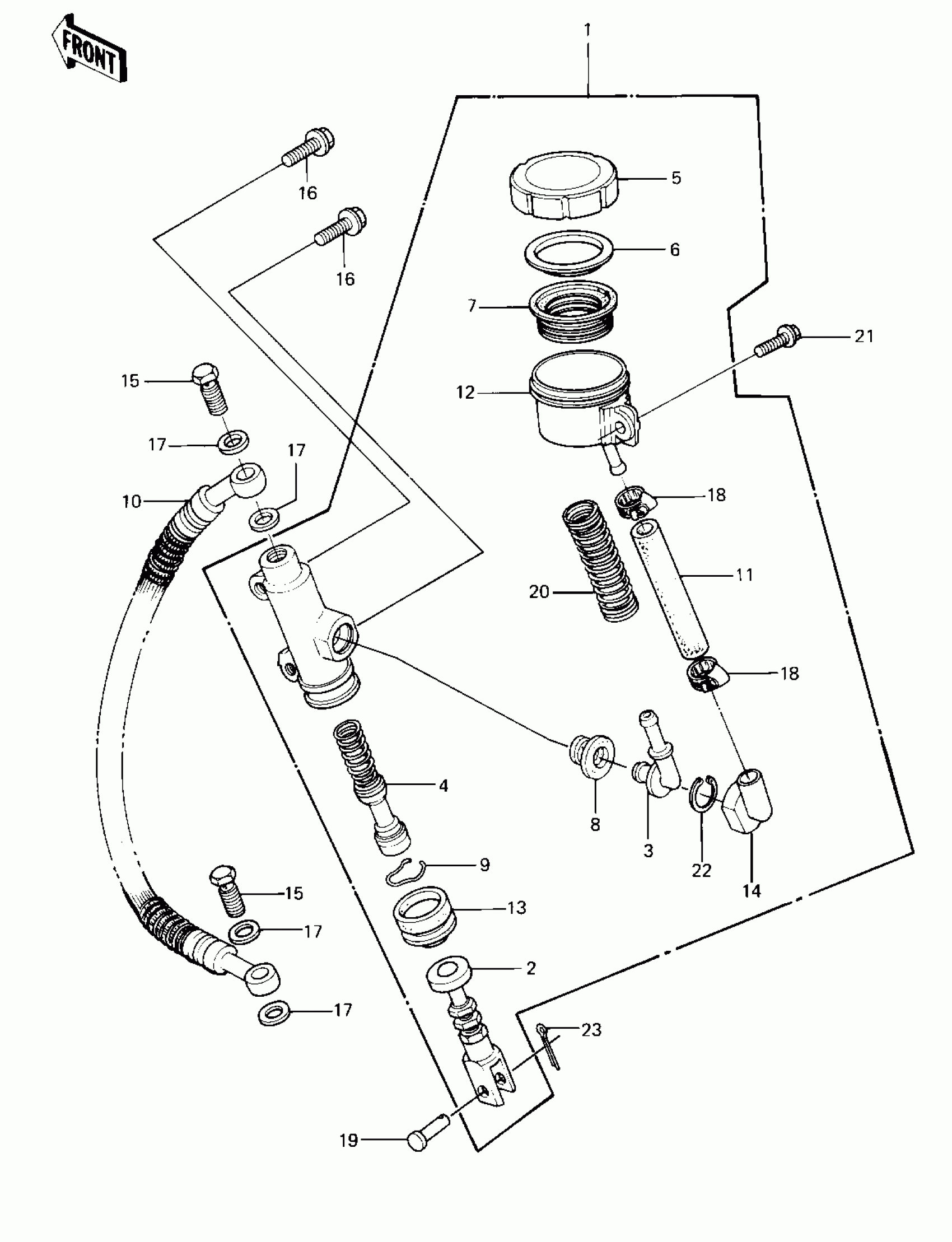

Kawasaki Police 1000 REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER-ASSY-MASTER,RR

43015-1134

Unavailable

2

ROD ASSY,BRAKE

43010-1004

$133.91

3

CONNECTOR

13159-1009

Unavailable

4

PISTON ASSY

43020-1019

$96.86

5

CAP-BRAKE

43026-1016

$37.12

6

PLATE-DIAPHRAGM

43027-1005

$5.66

7

DIAPHRAGM

43028-1016

$21.88

8

PACKING

43049-1008

$10.97

9

RING,ROD STOPPER

43058-004

$6.08

10

HOSE-BRAKE

43059-1180

Unavailable

10

HOSE-BRAKE

43059-1180

Unavailable

11

HOSE-BRAKE

43059-1096

Unavailable

12

RESERVOIR

43078-1009

Unavailable

13

DUST COVER

49016-1031

Unavailable

14

COVER-SEAL,MASTER CYLINDER

49016-1034

$15.07

15

BOLT,OIL,L=23

92002-1888

$4.35

16

BOLT,FLANGED,8X28

92001-1095

$5.71

17

WASHER,10.5X15X1.5

43067-001

$1.81

18

CLAMP,BRAKE HOSE

92037-1154

Unavailable

19

PIN,8X16

92043-1013

Unavailable

20

SPRING,HOSE PROTECTER

92081-1335

Unavailable

21

BOLT,FLANGED,6X20

130B0620

Unavailable

22

CIRCLIP-TYPE-C,25MM

481J2500

$2.47

23

PIN COTTER 2.0X15

550D2015

Unavailable
