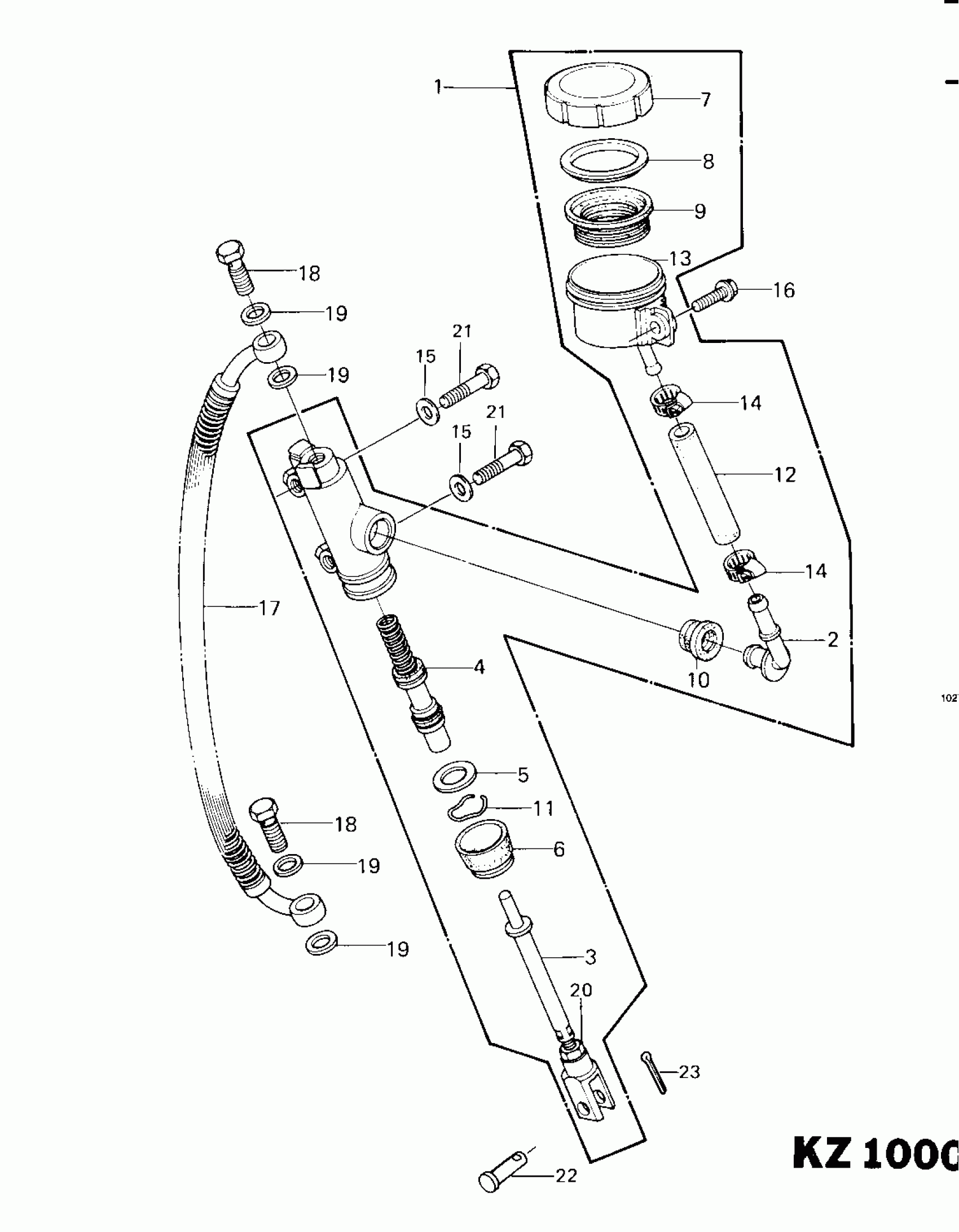

Kawasaki Police 1000 REAR MASTER CYLINDER ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

CYLINDER ASSY,RR MAS

43015-4001

$310.75

2

CONNECTOR

13159-1005

Unavailable

3

ROD ASSY,BRAKE

43010-4001

Unavailable

4

PISTON ASSY,RR BRAKE

43020-1015

Unavailable

5

STOPPER,PISTON

43022-1002

$4.56

6

DUST COVER

43024-003

$23.93

7

CAP,OIL CUP

43026-1010

$37.12

8

PLATE-DIAPHRAGM

43027-1005

$5.66

9

DIAPHRAGM

43028-1016

$21.88

10

PACKING

43049-1008

$10.97

11

RING,ROD STOPPER

43058-004

$6.08

12

HOSE,BRAKE

43059-4002

Unavailable

13

RESERVOIR

43078-1008

Unavailable

14

CLAMP,BRAKE HOSE

92037-1154

Unavailable

15

WASHER PLAIN 8MM

411B0800

Unavailable

16

BOLT,FLANGED,6X20

130B0620

Unavailable

17

HOSE,BRAKE

43059-4001

$102.83

18

BOLT,OIL,L=23

92002-1888

$4.35

19

WASHER,10.5X15X1.5

43067-001

$1.81

20

NUT,8MM

311B0800

Unavailable

21

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

22

PIN,8X16

92043-1013

Unavailable

23

PIN COTTER 2.0X15

550D2015

Unavailable
