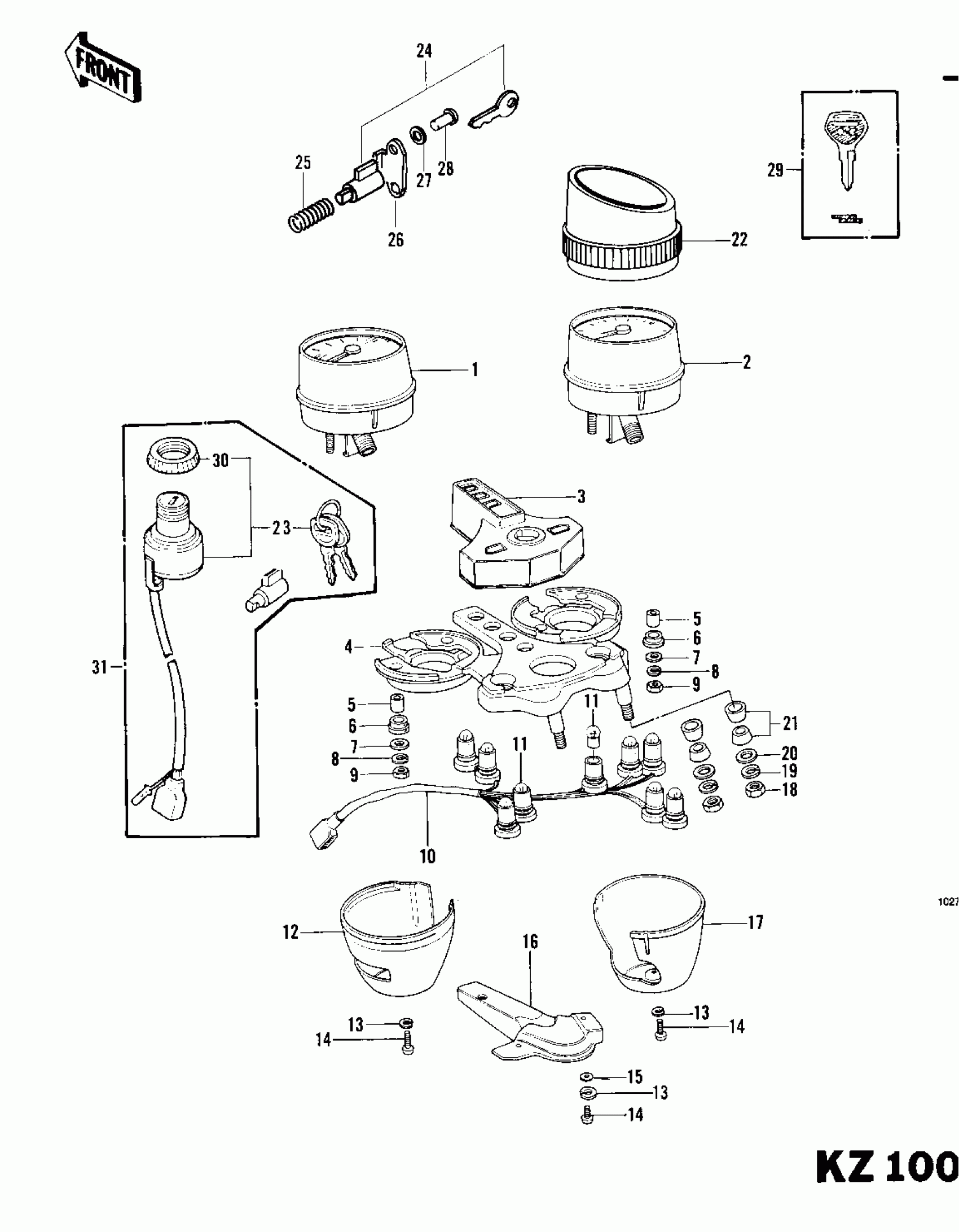

Kawasaki Police 1000 METERS/IGNITION SWITCH ('79-'81C4) Diagram

#

Description
Price

1

SPEEDOMETER

25005-4003

$584.98

2

TACHOMETER ASSY,PURS

25015-4002

$329.73

3

COVER-METER CASE

25023-4001

$94.95

4

BRACKET,METER

25008-1005

Unavailable

5

COLLAR,METER

92027-211

Unavailable

6

RUBBER,METER

92075-172

$12.35

7

WASHER,PLAIN,5MM

92022-241

Unavailable

8

WASHER SPRING 5MM

461F0500

Unavailable

9

NUT-HEX,5MM

312B0500

Unavailable

10

SOCKET-ASSY

23008-4005

Unavailable

11

BULB 12V 3W

92069-018

$3.87

12

COVER,SPEEDOMETER

14025-4011

Unavailable

13

WASHER SPRING 3MM

461F0300

Unavailable

14

SCREW-PAN-CROS,3X8

220B0308

$0.63

15

WASHER-PLAIN-SMALL,3MM

410B0300

Unavailable

16

COVER,METER BRACKET

25024-006

Unavailable

17

COVER,TACHOMETER

14025-4012

Unavailable

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$8.22

22

COVER,METER CASE

25023-4002

$11.98

23

SWITCH ASSY,IGNITION

27005-5008

Unavailable

24

LOCK,ASSY,STEERING

27016-5016

Unavailable

25

SPRING,STEERING LOCK

27032-001

Unavailable

26

CAP,STEERING LOCK

11012-1134

$5.95

27

WASHER,WAVE

92097-003

$3.57

28

SCREW,3.51MM

92008-007

$3.27

29

KEY-LOCK,BLANK

27008-1103

$18.83

30

NUT,IGNITION SW LOCK

27007-004

Unavailable

31

LOCK ASSY,KZ1000-C2

27004-5043

$164.39
