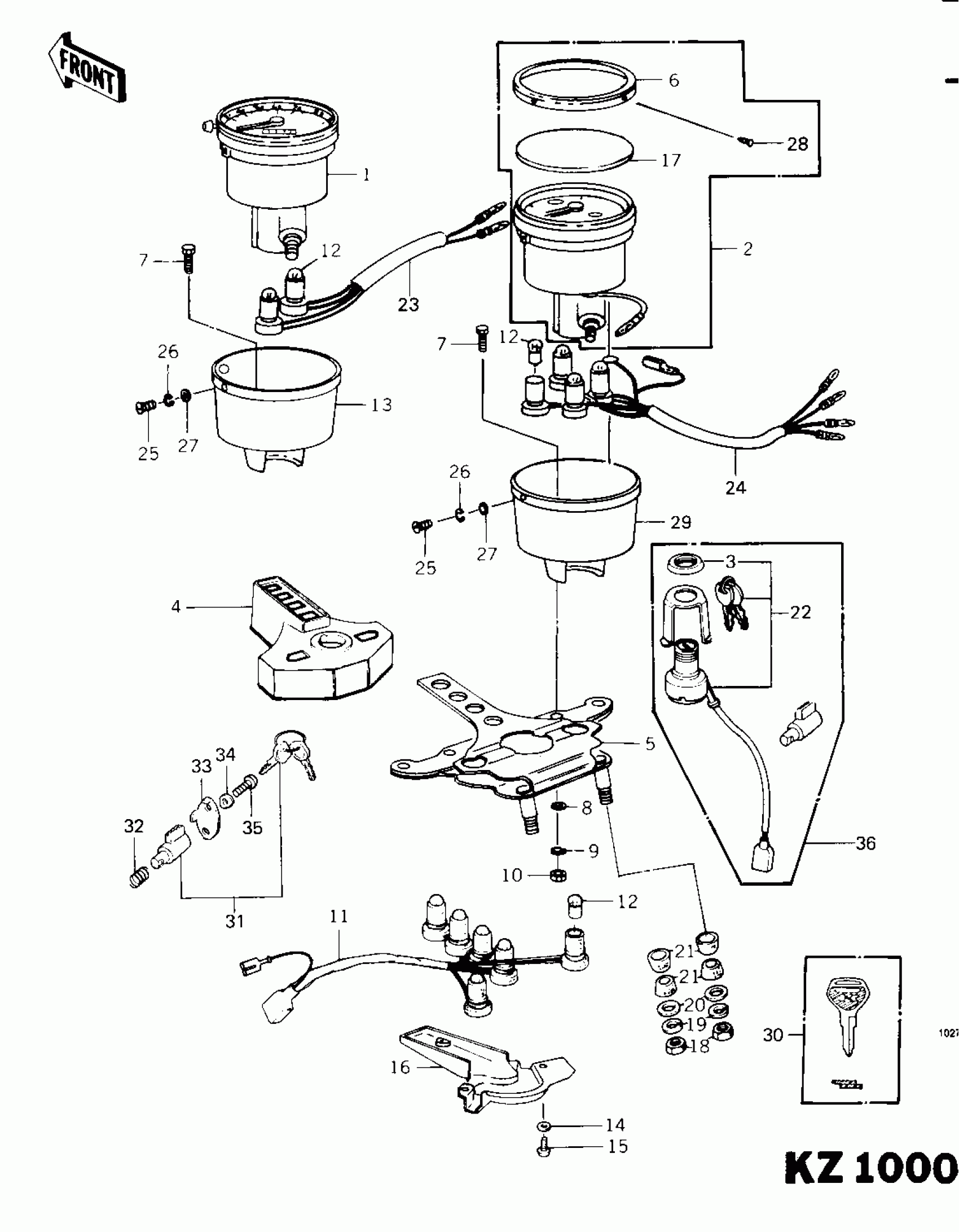

Kawasaki Police 1000 METERS/IGNITION SWITCH ('79-'81 C2/C3) Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25005-4001

$827.88

2

TACHOMETER ASSY,PURS

25015-4001

$405.01

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

COVER,METER,INDICATE

25023-015

$224.97

5

BRACKET,METER

25008-1002

$76.90

6

RETAINER,SPEEDOMETER

14020-4001

Unavailable

7

BOLT-UPSET,6X16

112G0616

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

SOCKET,INDICATOR LAM

23008-1010

Unavailable

12

BULB 12V 3W

92069-018

$3.87

13

COVER, SPEEDOMETER

14025-4003

Unavailable

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.63

16

COVER,METER BRACKET

25024-006

Unavailable

17

LENS,SPEEDOMETER

23026-4001

Unavailable

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$8.22

22

SWITCH ASSY,IGNITION

27005-5008

Unavailable

23

SOCKET,SPEEDOMETER

23008-4003

Unavailable

24

SOCKET,TACHOMETER

23008-4002

Unavailable

25

SCREW PAN HEAD 4X8

220B0408

Unavailable

26

WASHER SPRING 4MM

461F0400

Unavailable

27

WASHER PLAIN 4MM

410B0400

Unavailable

28

SCREW,PAN HEAD,2.3X3

92009-4001

$0.33

29

COVER,SPEEDOMETER

14025-1011

Unavailable

30

KEY-LOCK,BLANK

27008-1103

$18.83

31

LOCK,ASSY,STEERING

27016-5016

Unavailable

32

SPRING,STEERING LOCK

27032-001

Unavailable

33

CAP,STEERING LOCK

11012-1134

$5.95

34

WASHER,WAVE

92097-003

$3.57

35

SCREW,3.51MM

92008-007

$3.27

36

LOCK ASSY,KZ1000-C2

27004-5043

$164.39
