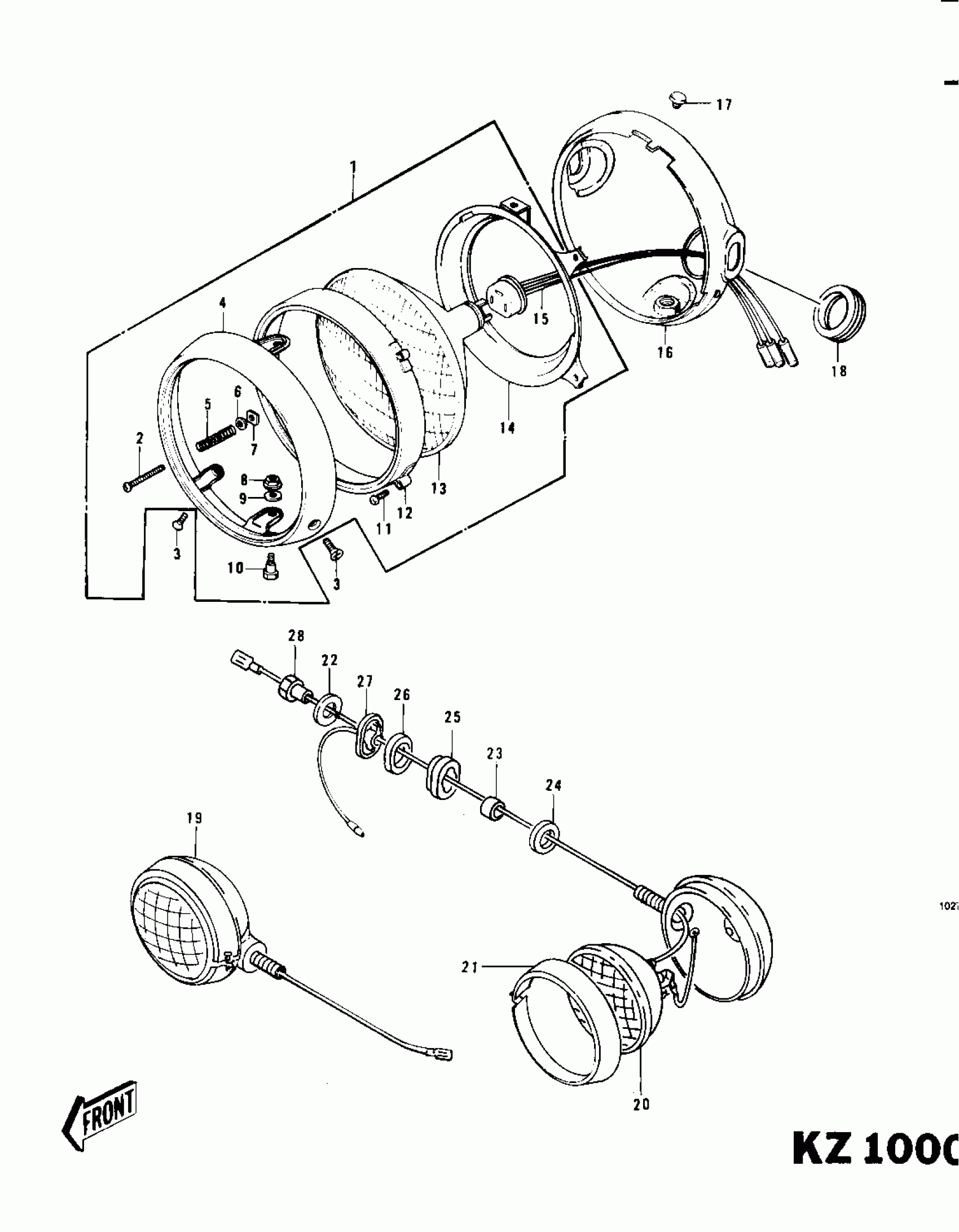

Kawasaki Police 1000 HEADLIGHT/PURSUIT LIGHTS (KZ1000-C2/C3) Diagram

#

Description
Price

1

LAMP UNIT,HEAD

23004-1009

Unavailable

2

SCREW,FOCUS ADJUSTING

23019-021

$4.17

3

SCREW,SPECIAL,5X14

23019-024

$1.78

4

RIM,HEAD LAMP

23006-038

Unavailable

5

SPRING,FOCUS ADJUSTING

23014-005

$3.19

6

WASHER,4.1X8X0.8

23021-004

Unavailable

7

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

8

NUT,HEAD LAMP RIM FIT

23020-020

Unavailable

9

WASHER,PLAIN,5MM

23021-012

Unavailable

10

SCREW,PAN HEAD,5X12

23019-023

$4.78

11

SCREW, PAN HEAD 3X12

220B0312A

Unavailable

12

RING,HEAD LAMP MOUNT

23072-001

$45.03

13

SEALED BEAM UNIT

23007-1006

Unavailable

14

RING,HEAD LAMP MOUNT

23074-001

$65.88

15

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

16

BODY,HEAD LAMP,BLACK

23005-1004-21

$235.99

17

PLUG REAR FENDER RUB

92074-006

$5.93

18

GROMMET

92071-1008

Unavailable

19

LAMP ASSY, PURSUIT

23016-4001

Unavailable

20

LENS-COMP,PURSUIT LAMP,RED

23007-1001

Unavailable

20

LENS-COMP,PURSUIT LAMP,BLUE

23007-1002

Unavailable

20

LENS-COMP,PURSUIT LAMP,AMBER

23007-1003

$49.01

21

RIM,PURSUIT LAMP

23006-4001

Unavailable

22

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

23

COLLAR,PURSUIT LAMP

92027-1026

$3.58

24

DAMPER,PURSUIT

92075-1016

$2.29

25

DAMPER RUBBER

23066-015

Unavailable

26

DAMPER RUBBER

23066-016

Unavailable

27

COLLAR,PURSUIT LAMP

92027-4001

$6.59

28

NUT,PURSUIT LAMP

92015-4001

$5.12
