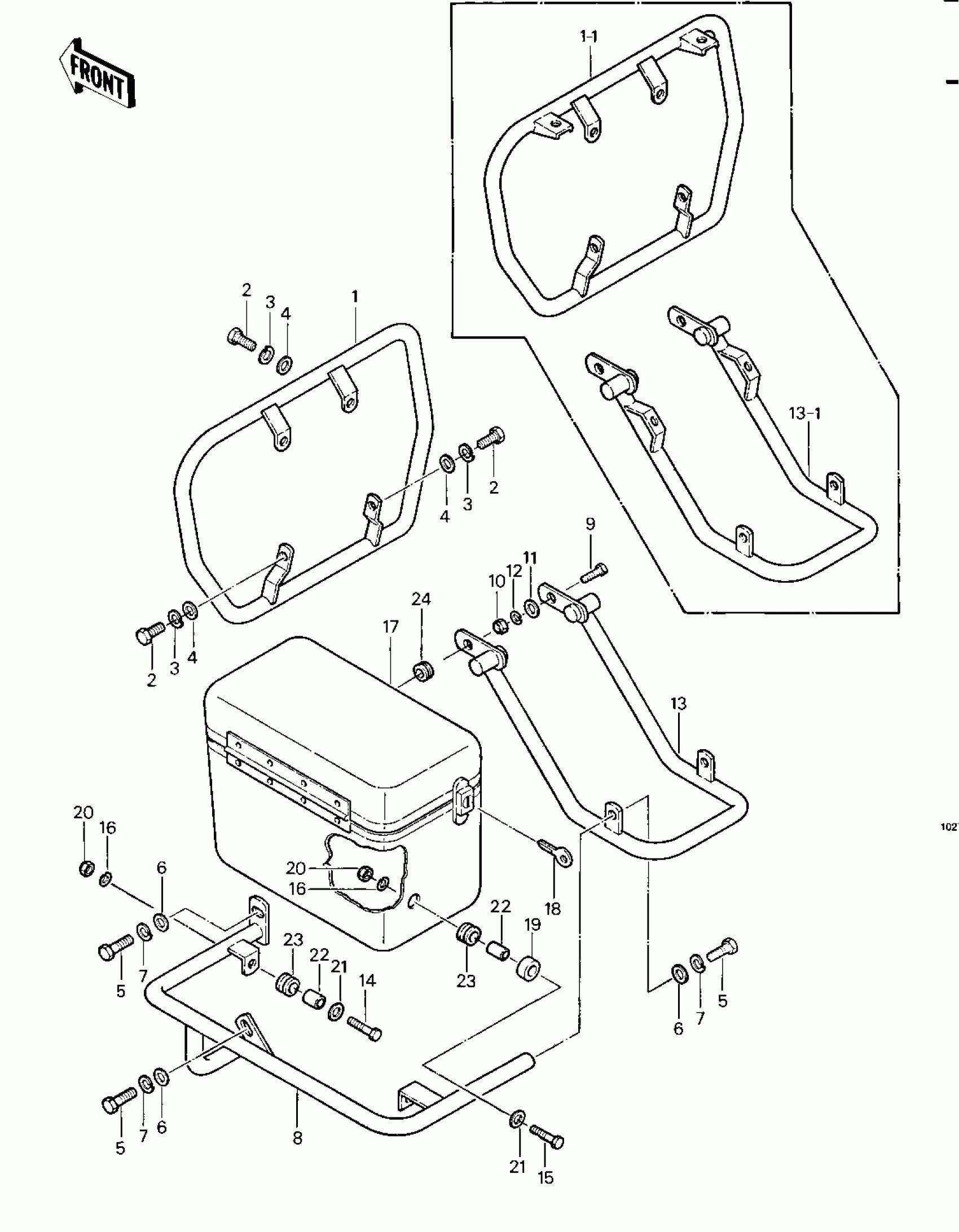

Kawasaki Police 1000 GUARDS/SADDLEBAGS ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1-1

SAFETY GUARD,FRONT

55020-4012

$79.63

2

BOLT,HEX HEAD,10X25

113G1025

Unavailable

3

WASHER SPRING 10MM

461F1000

Unavailable

4

WASHER PLAIN 10MM

410B1000

Unavailable

5

BOLT,10X28

113G1028

Unavailable

6

WASHER PLAIN 10MM

410B1000

Unavailable

7

WASHER SPRING 10MM

461F1000

Unavailable

8

GUARD, SADDLEBAG,RH

55020-1006

$128.97

8

GUARD, SADDLEBAG,LH

55020-1007

$122.13

9

BOLT HEX HEAD 10X25

110B1025

Unavailable

10

NUT (10MM)

311B1000

Unavailable

11

WASHER PLAIN 10MM

410B1000

Unavailable

12

WASHER SPRING 10MM

461F1000

Unavailable

13-1

GUARD,SADDLEBAG,REAR

55020-4006

$117.53

14

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

15

BOLT

114G0836

Unavailable

16

WASHER SPRING 8MM

461F0800

Unavailable

17

SADDLEBAG,RH

56008-1003

$290.83

17

SADDLEBAG,LH

56008-1004

$290.83

18

KEY

27008-4001

$7.56

19

SPACER

92026-4003

$0.85

20

NUT FUEL TANK FRONT

92020-007

Unavailable

21

WASHER,8.5X20X1.6

92022-1561

$3.43

22

COLLAR

92027-280

$1.34

23

DAMPER

92075-303

Unavailable

24

DAMPER RUBBER

92075-105

$3.48
