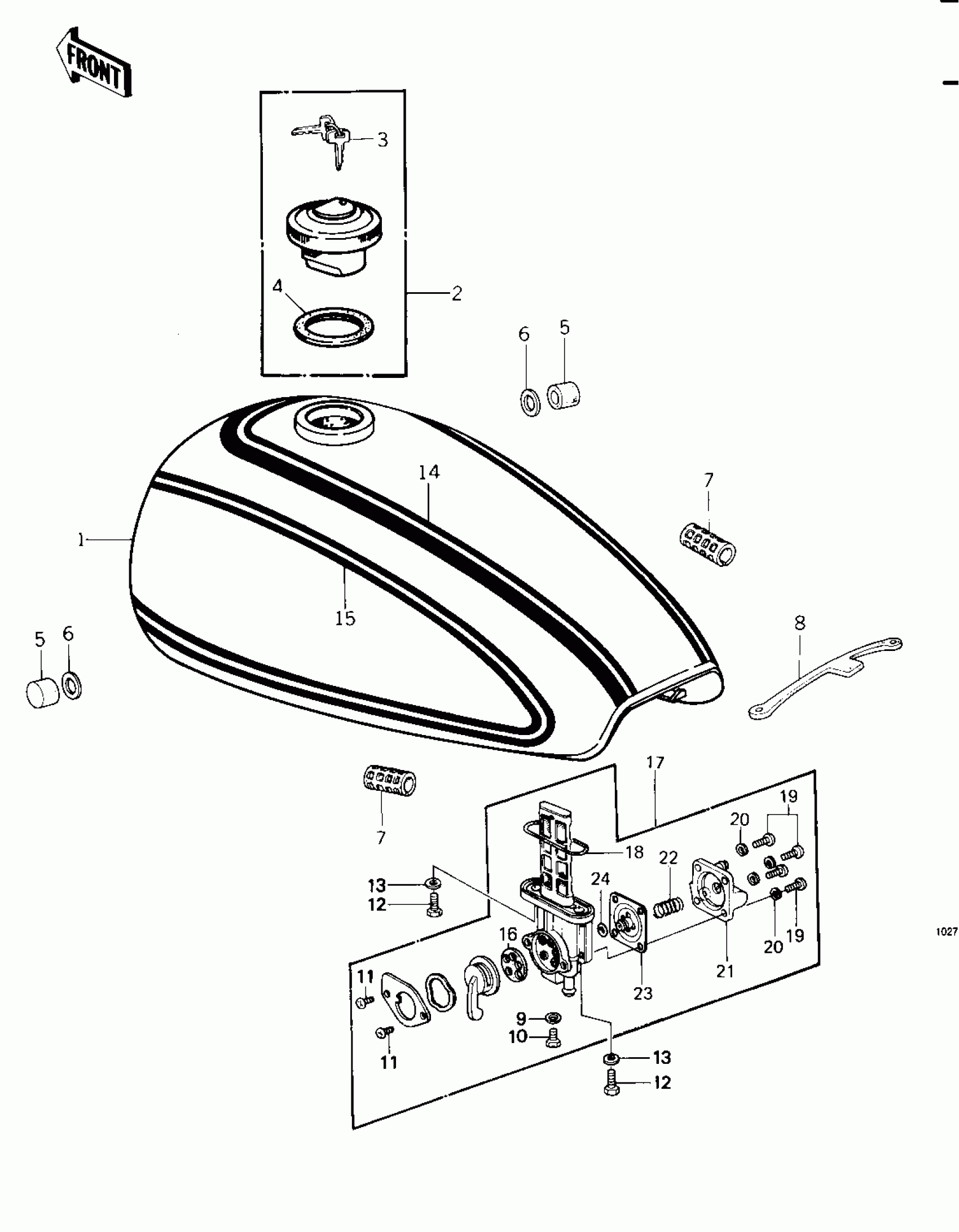

Kawasaki Police 1000 FUEL TANK ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

TANK-FUEL,

51001-4001-8C

$422.37

2

CAP ASSY, LOCKING

51048-006

Unavailable

3

KEY SET,TANK,#165

27008-053-65

$19.86

3

KEY SET,TANK,#166

27008-053-66

$10.86

3

KEY SET,TANK,#167

27008-053-67

Unavailable

3

KEY SET,TANK,#168

27008-053-68

$13.75

3

KEY SET TANK,#169

27008-053-69

$10.42

4

GASKET,FUEL TANK CAP

51059-009

Unavailable

5

DAMPER,FUEL TANK

92075-125

$4.93

6

WASHER,10.5X26X2.3

92022-044

$3.12

7

DAMPER,FUEL TANK

92075-084

$7.97

8

BAND,FUEL TANK

92072-042

$12.02

9

GASKET,DRAIN BOLT

11009-1045

Unavailable

10

BOLT,DRAIN

92001-1089

Unavailable

11

SCREW PAN HEAD 4X8

220B0408

Unavailable

12

BOLT,6X20

92001-1091

$3.12

13

WASHER-PLAIN

92022-183

$3.12

14

FUEL TANK DECAL TOP

56029-194

$25.31

15

FUEL TANK DECAL LEFT

56029-196

Unavailable

15

FUEL TANK DECAL RIGH

56029-195

Unavailable

16

GASKET,FUEL TAP

11009-1044

$15.18

17

TAP ASSY,FUEL

51023-1010

Unavailable

18

"0" RING

43058-1001

Unavailable

19

SCREW-PAN-CRSOSS,4X1

220B0412

$0.26

20

WASHER SPRING 4MM

461F0400

Unavailable

21

COVER ASSY,FUEL TAP

51036-1001

Unavailable

22

SPRING,DIAPHRAGM

92081-1054

Unavailable

23

DIAPHRAGM VALVE ASSY

16126-1011

Unavailable

24

"0" RING,DIAPHRAGM

92055-1068

Unavailable
