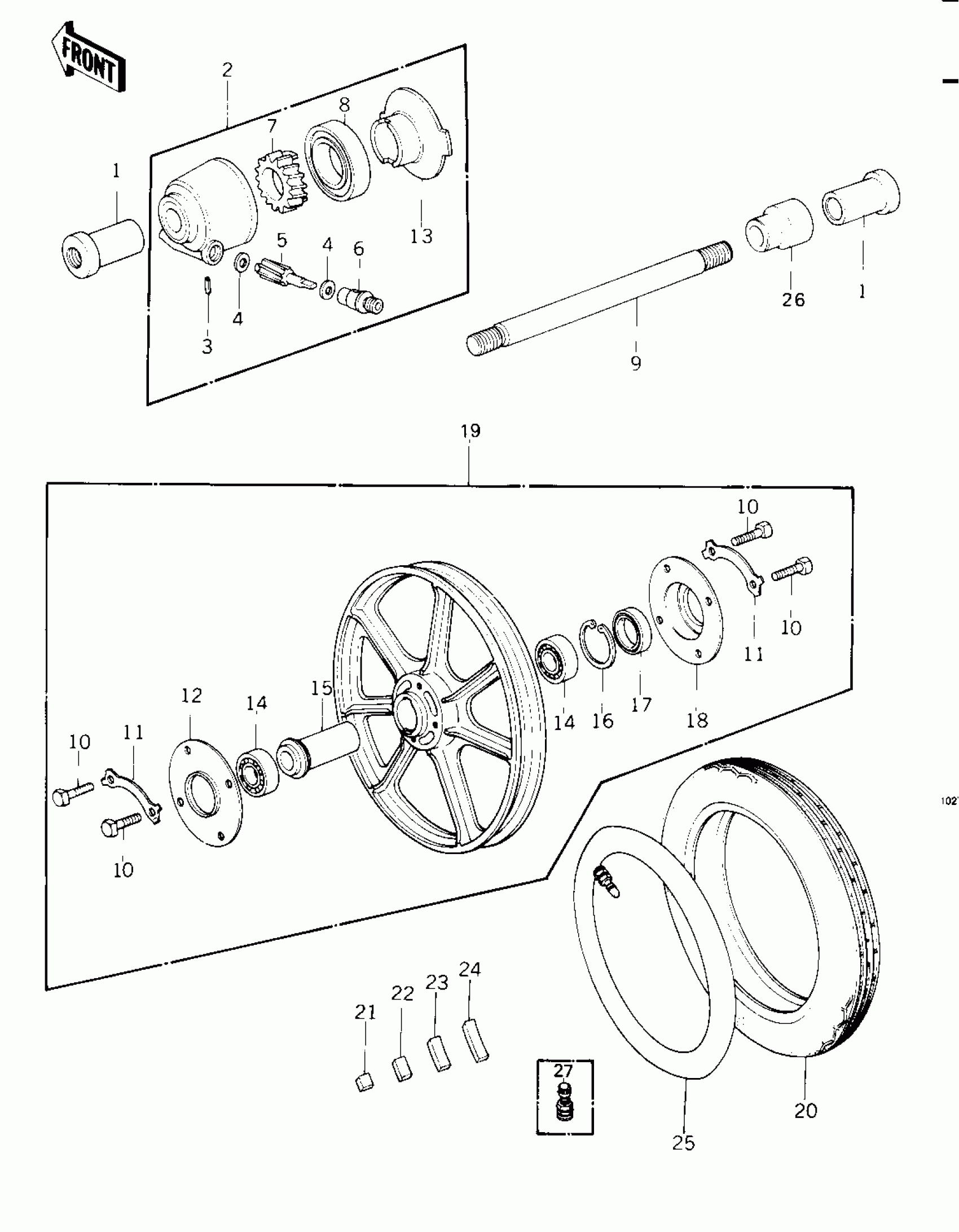

Kawasaki Police 1000 FRONT WHEEL/TIRE/HUB ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

GEAR BOX ASSY

41078-1002

$74.29

3

PIN,SPRING

41082-001

$3.53

4

WASHER,5.1X9X0.4

41063-001

$4.17

5

PINION,SPEEDOMETER

41060-017

Unavailable

6

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

7

GEAR-METER SCREW,26T

41059-026

$43.35

8

SEAL-OIL,BJN30427-C3

92049-1057

$7.38

9

AXLE,FRONT

41068-1005

$40.75

10

BOLT

92001-158

Unavailable

11

WASHER,LOCK

92088-023

$11.33

12

DUST COVER

41042-014

Unavailable

13

RECEIVER,SPEEDMT GEA

41064-1002

$14.75

14

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16

15

COLLAR,FR HUB BEARIN

92027-1028

$18.58

16

RING-SNAP,47MM

92033-1042

$3.36

17

OIL SEAL FRONT AXLE

654A254708

$29.84

18

DUST COVER

41042-015

Unavailable

19

SOLID WHEEL ASSY,FRN

41073-4003

$430.69

20

TIRE MN90-18 F16 F

41002-4021

$316.27

21

BALANCER-WHEEL,5G

41075-005

$2.03

22

BALANCER-WHEEL,10G

41075-006

$3.68

23

BALANCER-WHEEL,20G

41075-007

$2.41

24

BALANCER-WHEEL,30G

41075-008

$2.86

26

COLLAR,FRONT AXLE

41069-4001

$12.93

27

VALVE,TIRE

16126-1136

$36.68
