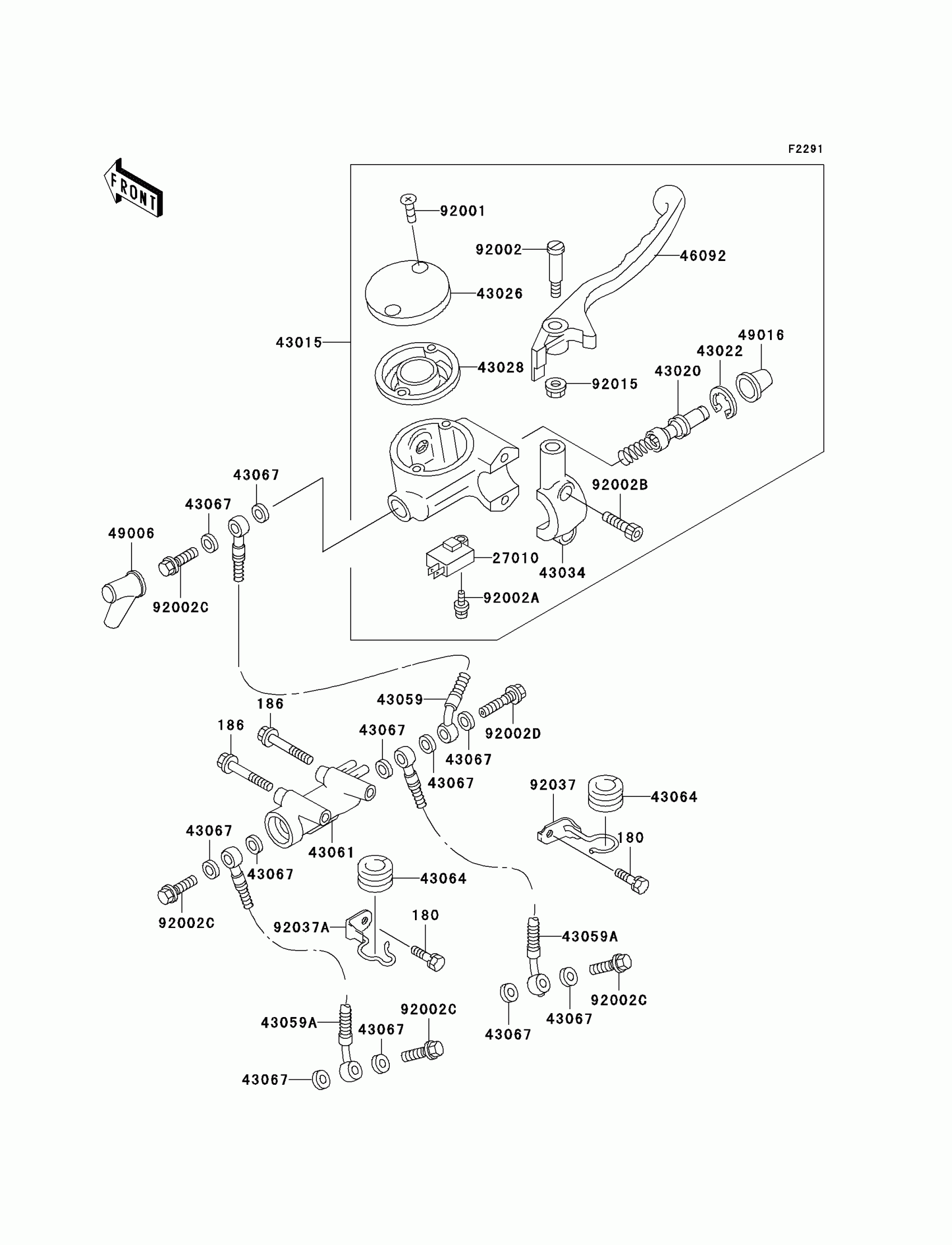

Kawasaki Police 1000 Front Master Cylinder(P20) Diagram

#

Description
Price

180

BOLT 6X12

180B0612

Unavailable

186

BOLT-UPSET-WP

186B0660

Unavailable

27010

SWITCH,BRAKE

27010-1170

$33.39

43015

CYLINDER-ASSY-MASTER,FR

43015-1449

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1054

$59.90

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1068

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$22.44

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1113

$42.85

43059

HOSE-BRAKE,FR

43059-1784

Unavailable

43059A

HOSE-BRAKE,FR

43059-1785

Unavailable

43061

JOINT-BRAKE

43061-1004

Unavailable

43064

GROMMET,HOSE CLAMP

43064-006

$3.43

43067

WASHER,10.5X15X1.5

43067-001

$1.81

46092

LEVER-GRIP,FRONT BRAKE

46092-1146

$32.95

49006

BOOT,DUST

49006-1041

$9.11

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92001

SCREW,5MM,BLACK

92001-1727

$3.27

92002

BOLT,LEVER SET,BLACK

92002-1322

$9.29

92002A

BOLT,SCREW,4X12

92002-1323

$3.12

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002C

BOLT,OIL,L=23

92002-1888

$4.35

92002D

BOLT,OIL,L=37

92002-1909

$9.38

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92037

CLAMP,BRAKE HOSE

92037-1218

$21.22

92037A

CLAMP,BRAKE HOSE,LH

92037-1367

Unavailable
