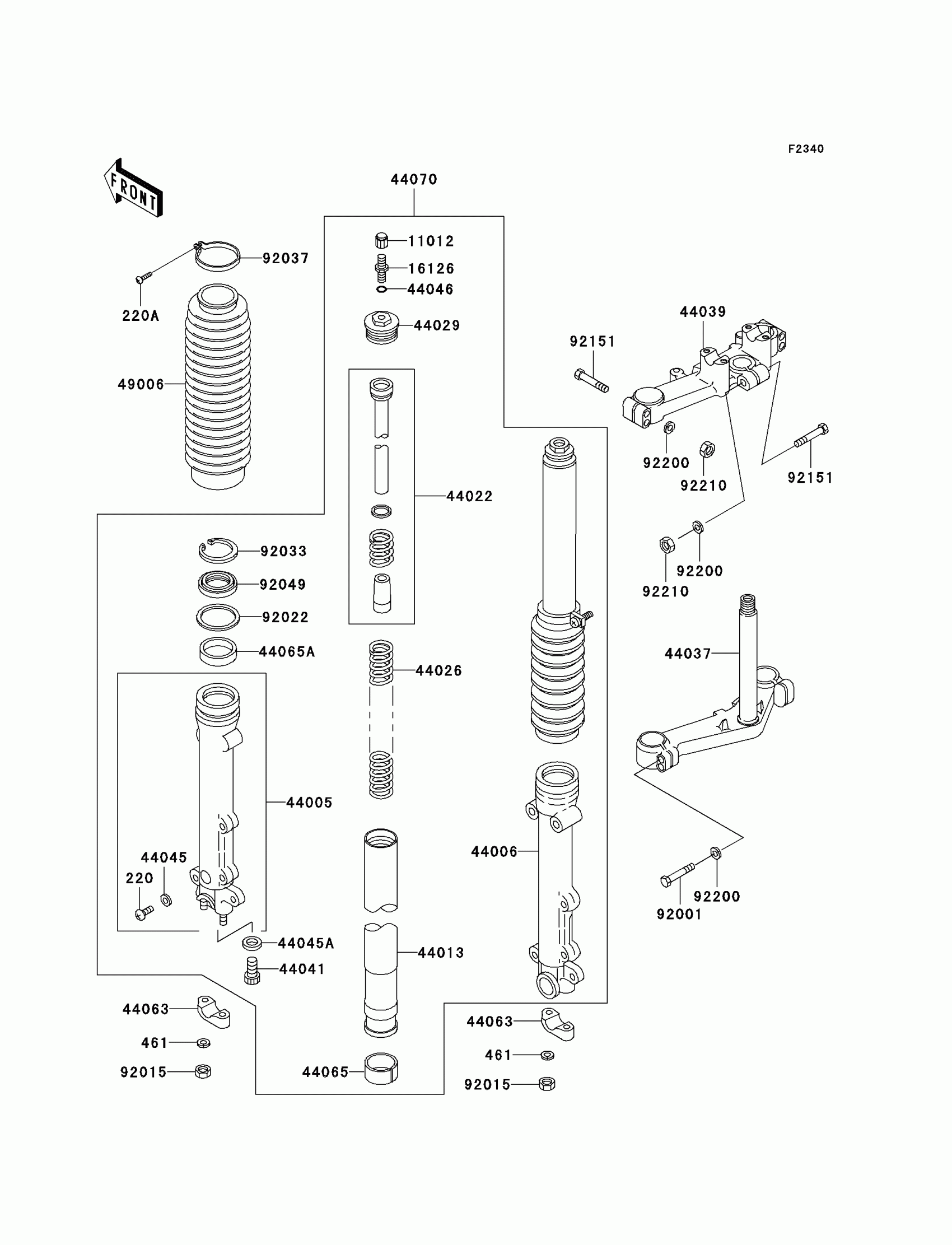

Kawasaki Police 1000 Front Fork(P20) Diagram

#

Description
Price

220

SCREW PAN HEAD 4X6

220B0406

$1.46

220A

SCREW-PAN-CROS

220B0420

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

11012

CAP,AIR VALVE

11012-1241

Unavailable

16126

VALVE,AIR

16126-1046

$32.11

44005

PIPE-LEFT FORK OUTER

44005-1332

Unavailable

44006

PIPE-RIGHT FORK OUTER

44006-1328

Unavailable

44013

PIPE-FORK INNER

44013-4002

Unavailable

44022

CYLINDER-FORK

44022-1083

Unavailable

44026

SPRING-FRONT FORK

44026-1312

Unavailable

44029

SEAT-FORK SPRING

44029-4001

Unavailable

44037

HOLDER-FORK UNDER

44037-4004

$627.00

44039

HOLDER-FORK UPPER

44039-4007

$382.76

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

44045

GASKET,FORK DRAIN PLUG

44045-002

$4.12

44045A

GASKET

44045-057

$3.86

44046

RING-O

44046-017

$6.75

44063

HOLDER-FRONT AXLE

44063-011

$37.23

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1057

$44.61

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

$23.54

44070

DAMPER-ASSY,FORK

44070-5139

$1,498.09

49006

BOOT,FORK,BLACK

49006-1079

$86.19

92001

BOLT,8X38

92001-1700

$9.61

92015

NUT,LOCK,8MM

92015-1390

$5.07

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92033

RING-SNAP,FORK

92033-1047

$5.11

92037

CLAMP,FORK BOOTS

92037-1024

$9.71

92049

SEAL-OIL,FORK

92049-1178

$30.09

92151

BOLT,8X55

92151-1978

Unavailable

92200

WASHER,SPRING,8MM

92200-1577

$1.34

92210

NUT,8MM

92210-1305

$1.81
