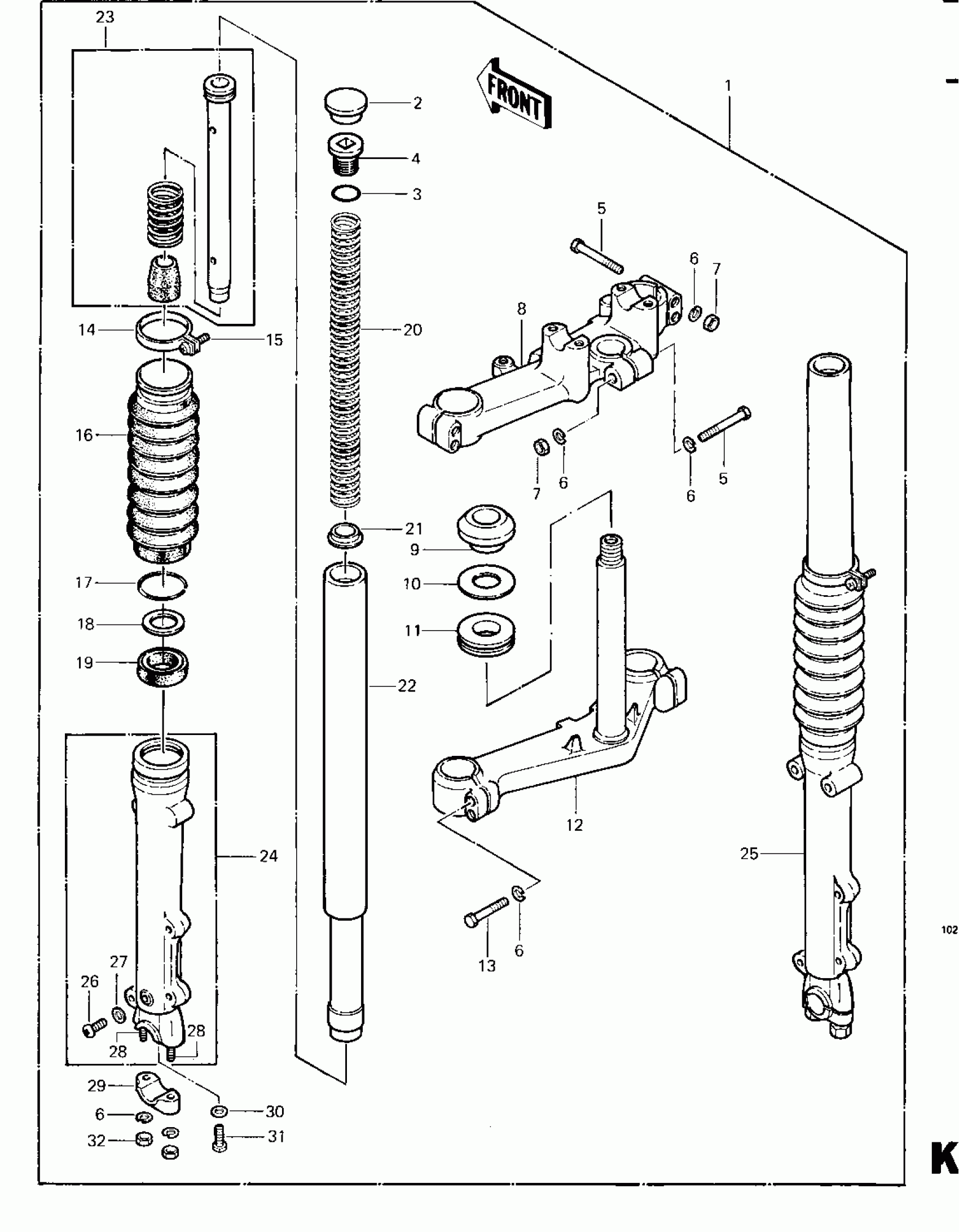

Kawasaki Police 1000 FRONT FORK (KZ1000-C4) Diagram

#

Description
Price

1

FORK-FRONT

44001-4005

$1,194.34

2

CAP,RUBBER

11012-1018

$14.97

3

RING-O,FORK TOP

92055-1012

$6.75

4

SEAT-FORK SPRING

44029-1046

$20.90

5

BOLT-HEX HEAD,8X55

44041-038

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

NUT-CAP-SMALL,8MM

323N0800

$4.08

8

HEAD,STEERING STEM

44039-1003

$363.77

9

RACE,STEERING STEM BEARING

92047-012

$14.20

10

WASHER,30.5X50X0.6

92022-231

$4.17

11

SEAL-OIL,STEERING STEM

92056-003

$7.04

12

STEM,STEERING

44037-1027

$478.46

13

BOLT,8X40

115G0840

Unavailable

14

BAND,BOOT

92072-1046

$9.71

15

SCREW-PAN-CROS

220B0420

Unavailable

16

BOOTS,FORK

49016-1006

Unavailable

17

CIRCLIP

92033-1002

Unavailable

18

WASHER

92022-1013

Unavailable

19

OIL SEAL

92049-1005

$20.52

20

SPRING,FORK

44026-1002

$62.37

21

GUIDE,FORK SPRING

44028-1001

Unavailable

22

TUBE,FORK INNER

44013-1002

$254.64

23

CYLINDER-FORK

44022-4002

$88.81

24

TUBE,LH,FORK OUTER

44005-1004

$395.78

25

TUBE,RH,FORK OUTER

44006-1004

$468.60

26

SCREW PAN HEAD 4X8

220B0408

Unavailable

27

GASKET,FORK DRAIN PLUG

44045-002

$4.12

28

STUD,8X35

92004-1009

$5.06

29

HOLDER,FRONT AXLE

44063-014

Unavailable

30

GASKET

44045-057

$3.86

31

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

32

NUT,LOCK,8MM

92015-1124

$4.30
