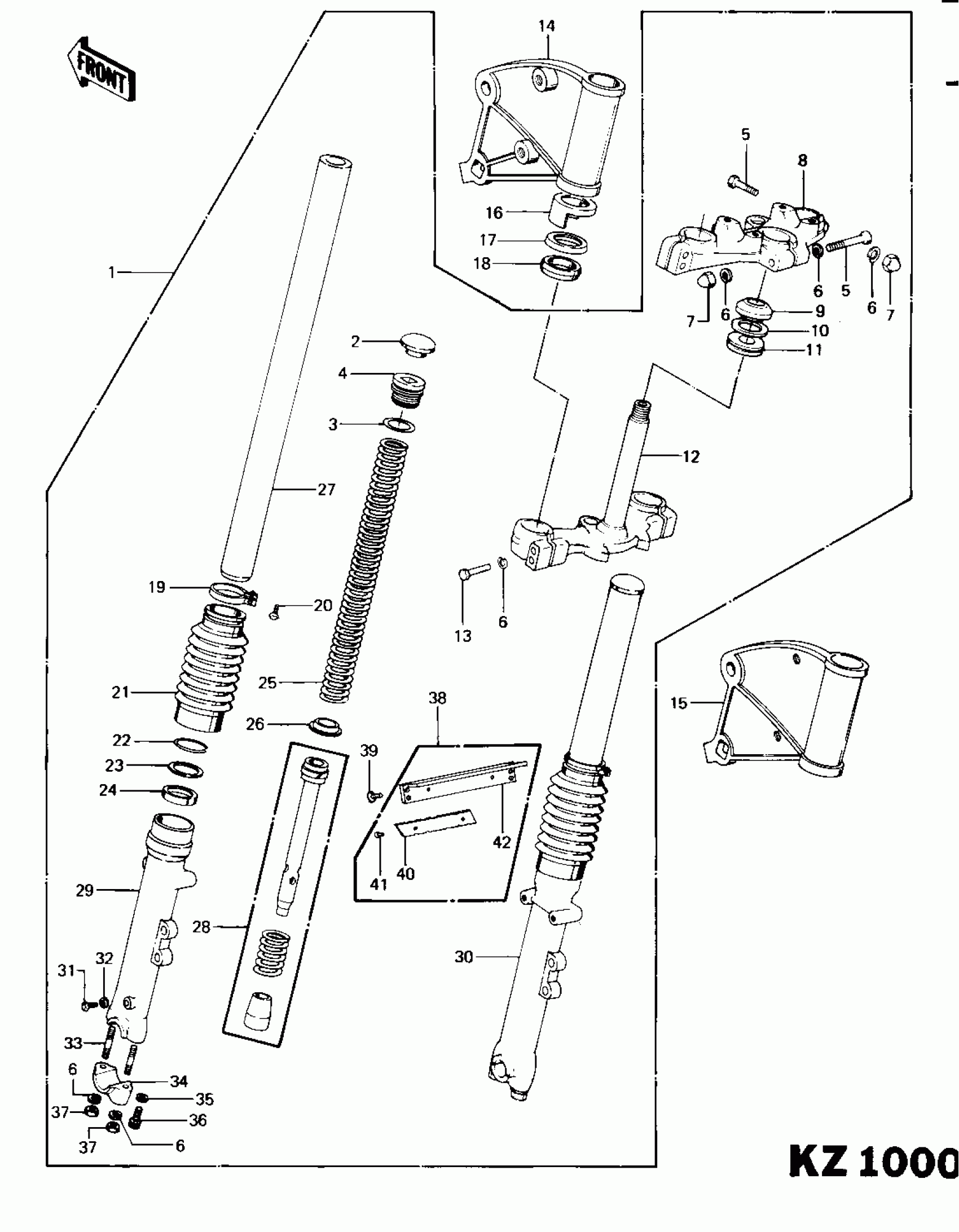

Kawasaki Police 1000 FRONT FORK (KZ1000-C2/C3) Diagram

#

Description
Price

1

FORK-FRONT

44001-4002

$1,281.78

2

CAP,RUBBER

11012-1018

$14.97

3

RING-O,FORK TOP

92055-1012

$6.48

4

SEAT-FORK SPRING

44029-1046

$20.90

5

BOLT-HEX HEAD,8X55

44041-038

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

NUT FUEL TANK FRONT

92020-007

Unavailable

7

NUT-CAP-SMALL,8MM

323N0800

$4.08

8

HEAD,STEERING STEM

44039-1003

$363.77

9

RACE,STEERING STEM BEARING

92047-012

$14.20

10

WASHER,30.5X50X0.6

92022-231

$4.17

11

SEAL-OIL,STEERING STEM

92056-003

$6.75

12

STEM,STEERING

44037-1027

$478.46

13

BOLT,8X40

115G0840

Unavailable

14

COVER,LH FORK

44033-1004

$95.24

15

COVER,RH FORK

44033-1003

$90.75

16

GUIDE,FORK COVER

13169-1019

Unavailable

17

UNAVAILABLE IN PRICE BOOK

13169-102

Unavailable

18

GASKET,FORK COVER

11009-1015

Unavailable

19

BAND,BOOT

92072-1046

$7.65

20

SCREW-PAN-CROS

220B0420

Unavailable

21

BOOTS,FORK

49016-1006

Unavailable

22

CIRCLIP

92033-1002

Unavailable

23

WASHER

92022-1013

Unavailable

24

OIL SEAL

92049-1005

$17.88

25

SPRING,FORK

44026-1002

$62.37

26

GUIDE,FORK SPRING

44028-1001

Unavailable

27

TUBE,FORK INNER

44013-1002

$254.64

28

CYLINDER-FORK

44022-1001

$80.46

29

TUBE,LH,FORK OUTER

44005-1004

$395.78

30

TUBE,RH,FORK OUTER

44006-1004

$468.60

31

SCREW PAN HEAD 4X8

220B0408

Unavailable

32

GASKET,FORK DRAIN PLUG

44045-002

$3.95

33

STUD,8X35

92004-1009

$4.80

34

HOLDER,FRONT AXLE

44063-014

Unavailable

35

GASKET

44045-057

$3.71

36

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

37

NUT,LOCK,8MM

92015-1124

$4.10

37

NUT,LOCK,8MM

92015-1124

$4.10

38

BRACKET ASSY,NAMEPLA

39184-4001

$36.46

39

SCREW OVL CNTSNK 6X1

222E0612

$2.73

40

EMBLEM,FUEL TANK

56014-1038

Unavailable

41

SCREW-CSK-CROS

221C0310

Unavailable

42

BRACKET, NAME PLATE

11034-4014

Unavailable
