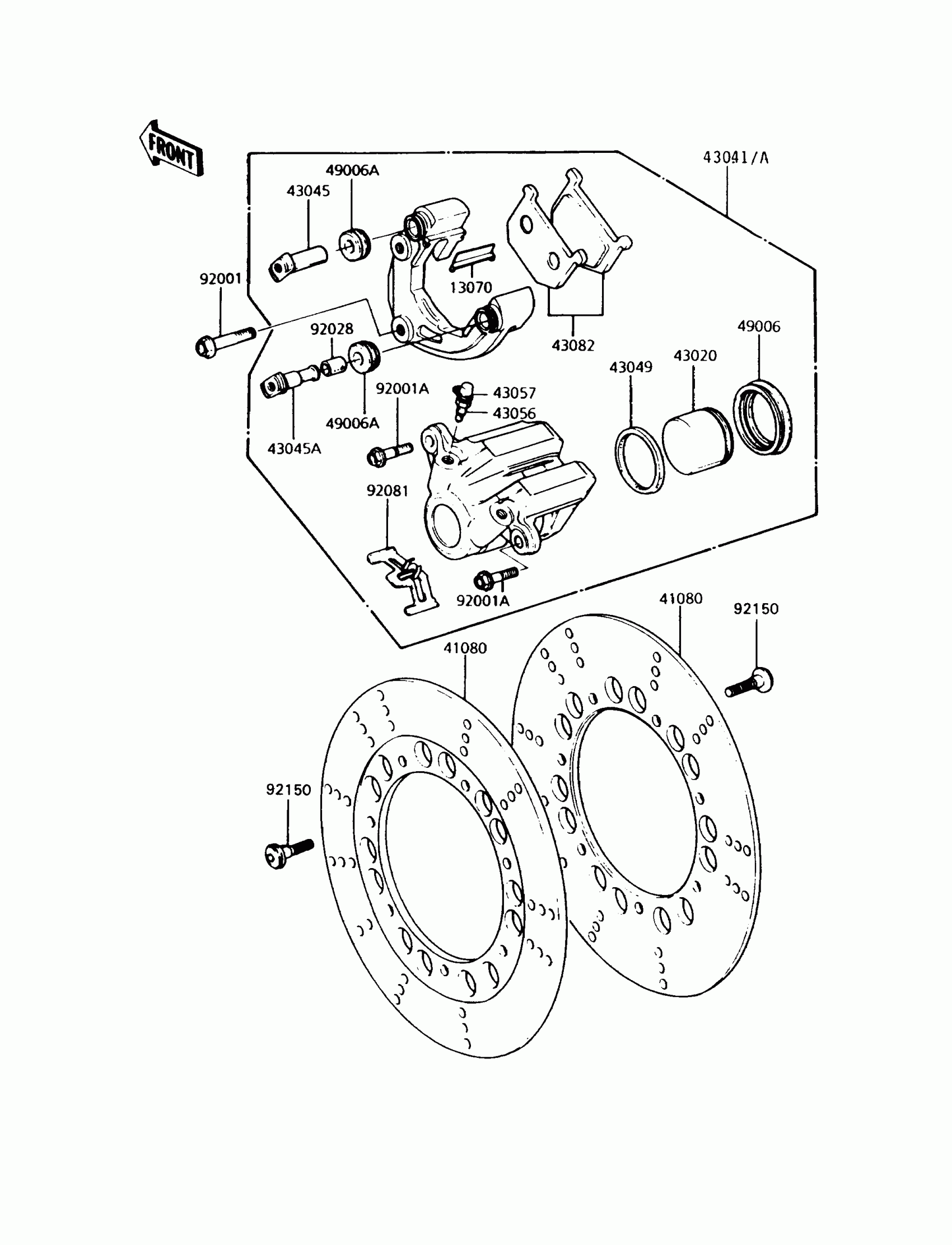

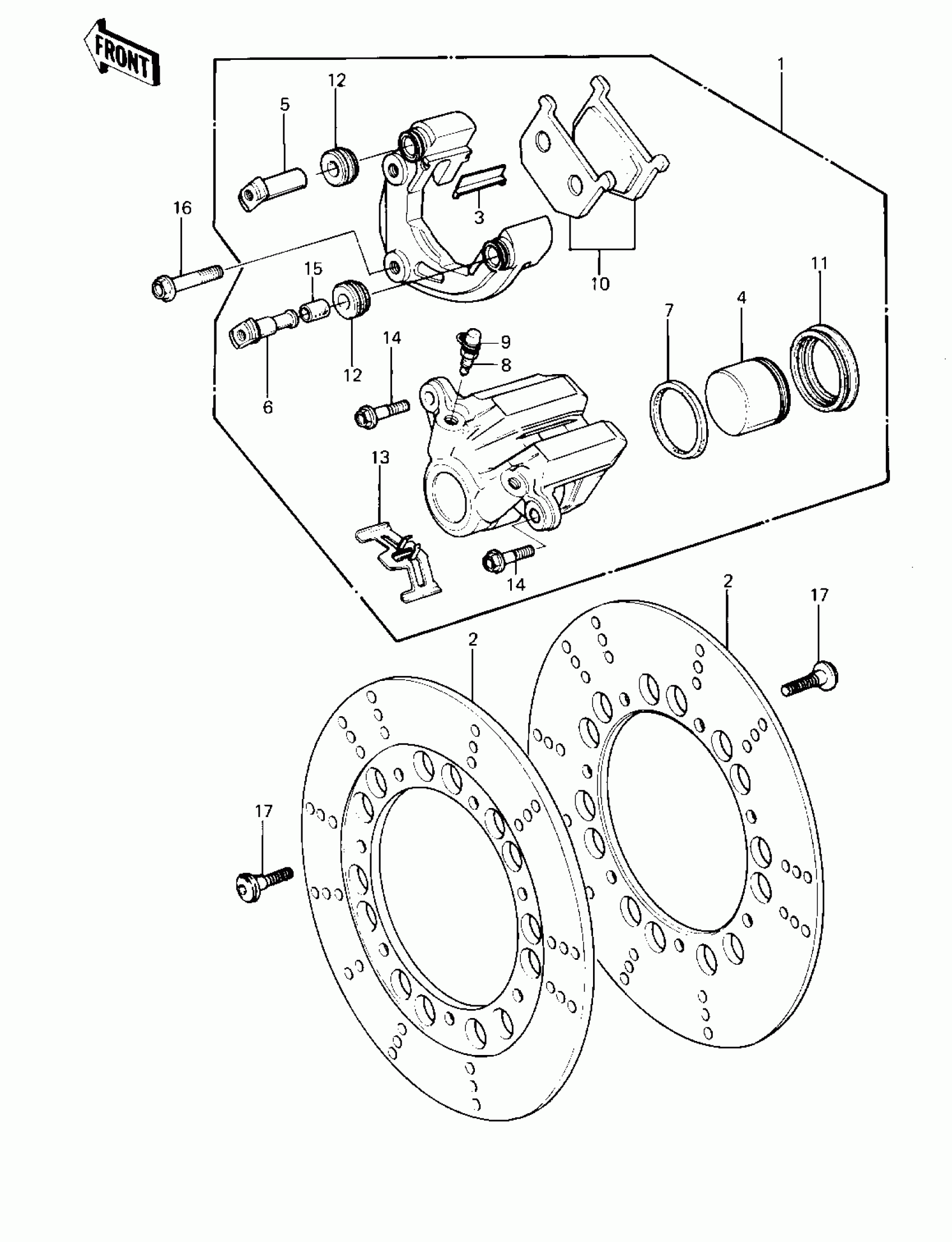

Kawasaki Police 1000 FRONT BRAKE Diagram

#

Description
Price

1

CALIPER-ASSY,FR,LH

43041-1045

$534.47

1

CALIPER-ASSY,FR,RH

43041-1046

$534.47

2

DISC,FR

41080-1047

$459.37

3

GUIDE,PAD

13070-1026

$8.02

4

PISTON-COMP-BRAKE

43020-1096

Unavailable

5

SHAFT-CALIPER

43045-1007

$21.69

6

SHAFT-CALIPER

43045-1008

$21.69

7

PACKING,PISTON SEAL

43049-002

$11.01

8

BREATHER

43056-003

$22.74

9

CAP-BREATHER

43057-003

$2.02

10

PAD-ASSY-BRAKE

43082-1021

$76.49

11

BOOT,PISTON

49006-1043

$10.97

12

BOOT,SHAFT

49006-1044

$6.90

13

SPRING,PAD

92081-1229

$19.43

14

BOLT,FLANGED,8X25,BLACK

92001-1510

$6.97

14

BOLT,FLANGED,8X25,BLACK

92001-1510

$6.97

15

BUSHING,7.8X11X15.7

92028-1090

$6.41

16

BOLT,FLANGED,10X41

92001-1355

Unavailable

17

BOLT,DISC PLATE,8X30

92001-1951

$3.72

17

BOLT,DISC PLATE,8X30

92001-1951

$3.72
