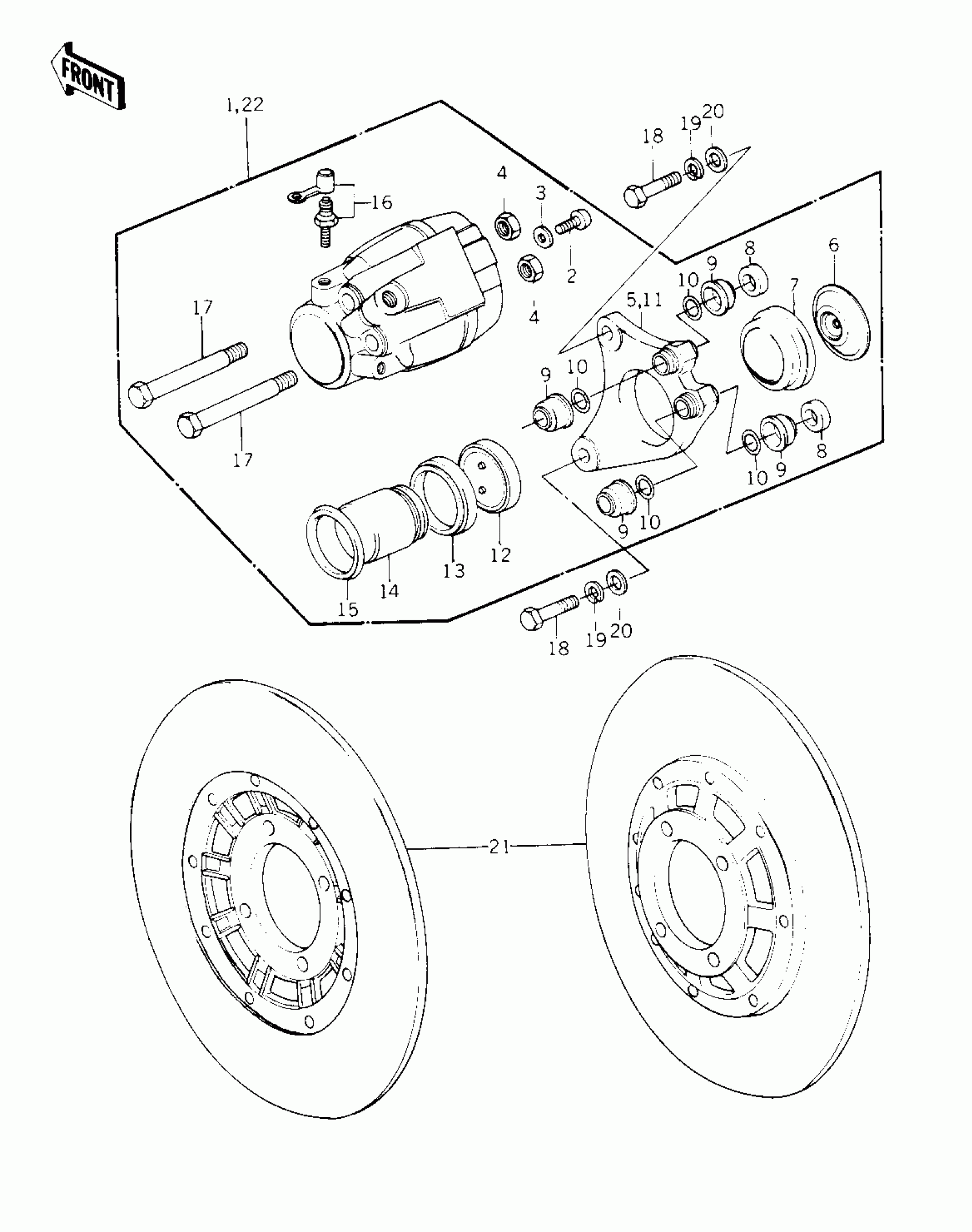

Kawasaki Police 1000 FRONT BRAKE ('78 C1/C1A) Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,2

43041-032

Unavailable

2

SCREW PAN HEAD 6X12

220B0612

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

NUT-HEX-FINE,10MM

315B1000

Unavailable

5

HOLDER,CALIPER

43044-009

$114.27

6

SPACER

43040-004

Unavailable

7-12

PAD SET,(FRONT)

43050-5001

$232.67

7

PAD B

43051-001

Unavailable

8

PLUG

43088-002

Unavailable

9

DUST SHILD,SHAFT

43052-005

Unavailable

10

"0" RING

43053-006

Unavailable

11

HOLDER,CALIPER

43044-008

$116.98

12

PAD A

43050-011

$20.08

13

DUST SEALD,RUBBER

43054-003

Unavailable

14

PISTON

43048-1002

Unavailable

15

PACKING,PISTON SEAL

43049-001

$8.76

16

BLEEDER SET

43085-001

$22.74

17

BOLT

43045-006

$42.74

18

BOLT

92007-032

$13.15

19

WASHER SPRING 10MM

461F1000

Unavailable

20

WASHER PLAIN 10MM

410B1000

Unavailable

21

DISC PLATE,FRONT BRK

41080-007

$573.86

22

CALIPER ASSY,FRONT,R

43041-033

Unavailable
