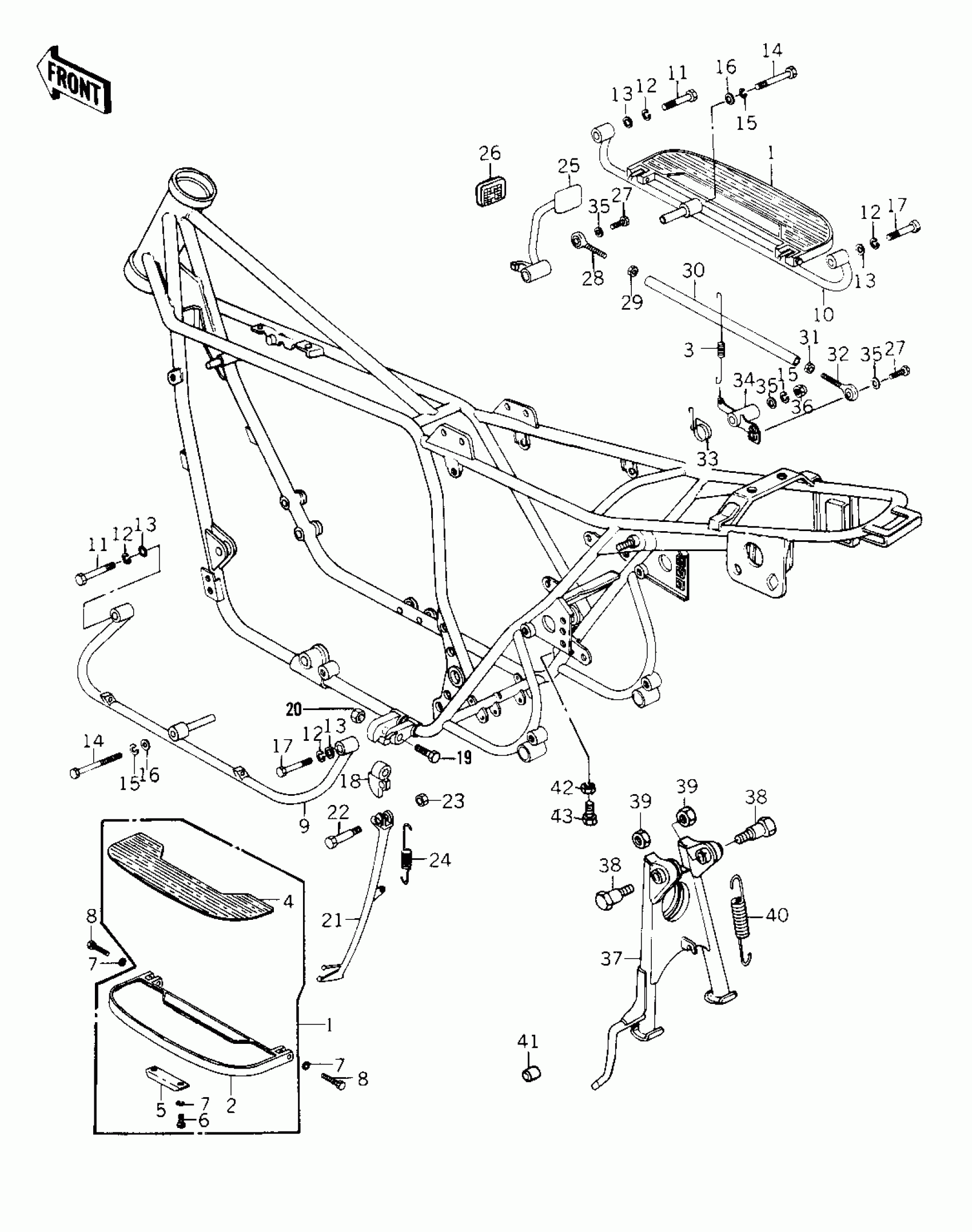

Kawasaki Police 1000 FOOTRESTS/STANDS/BRAKE PEDAL ('78 C1/C1A Diagram

#

Description
Price

1

FOOTBOARD ASSY.

34027-1002

$188.06

2

FOOTBOARD ASSY.

34027-1002

$188.06

3

SPRING,BRAKE LAMP SWITCH

27011-021

$23.12

4

DAMPER,FOOTBOAD

92075-4002

Unavailable

5

PLATE,FOOTBOAD

13169-1011

$16.32

6

BOLT,6X10

112G0610

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

BOLT-UPSET

112G0645

Unavailable

9

BRKT,FOOTBOARD, LH

34003-1005

$151.06

10

BRKT,FOOTBOARD, RH

34003-1006

$168.21

11

BOLT,HEX HEAD,10X50

92001-1254

Unavailable

12

WASHER SPRING 10MM

461F1000

Unavailable

13

WASHER-PLAIN,10MM

411B1000

Unavailable

14

BOLT-SMALL-UPSET,8X1

115B08105

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

WASHER PLAIN 8MM

410B0800

Unavailable

17

BOLT,HEX HEAD,10X60

113B1060

Unavailable

18

BRACKET-STAND,SIDE ST

32043-4004

Unavailable

19

BOLT,HEX HEAD,8M/M

92001-4004

Unavailable

20

NUT 8MM

312B0800

Unavailable

21

STAND-SIDE

34024-1216

$128.89

22

BOLT,SIDE STAND

92001-4028

Unavailable

23

NUT-HEX-FINE,10MM

315B1000

Unavailable

24

SPRING,STAND

34025-005

$6.03

25

PEDAL, BRAKE

43001-1006

$135.66

26

RUBBER,BRAKE PEDAL

43091-002

Unavailable

27

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

28

RODEND-TIE,LH THREAD

39112-1002

$47.74

29

NUT,LH THREAD

92015-1006

$1.19

30

CONTROL ROD,BRAKE PD

39111-1001

$27.83

31

NUT,RH THREAD

92015-1005

$0.98

32

RODEND-TIE,RH THREAD

39112-1001

$47.74

33

SPRING,BRAKE PEDAL

43005-037

$16.95

34

SHAFT,REAR BRAKE

43004-1004

$29.47

35

WASHER,8.5X20X1.6

92022-1561

$3.43

36

NUT,CAP AND LOCK,8MM

92019-013

$11.78

37

STAND-MAIN

34011-1015

Unavailable

38

SHAFT MAIN STAND

34019-014

$32.80

39

NUT,14MM

92016-044

Unavailable

40

SPRING,CNT STAND

34023-012

Unavailable

41

DAMPER,MAIN STAND

92075-318

$3.83

42

NUT 6MM

311B0600

Unavailable

43

BOLT-UPSET,6X20

112G0620

Unavailable
