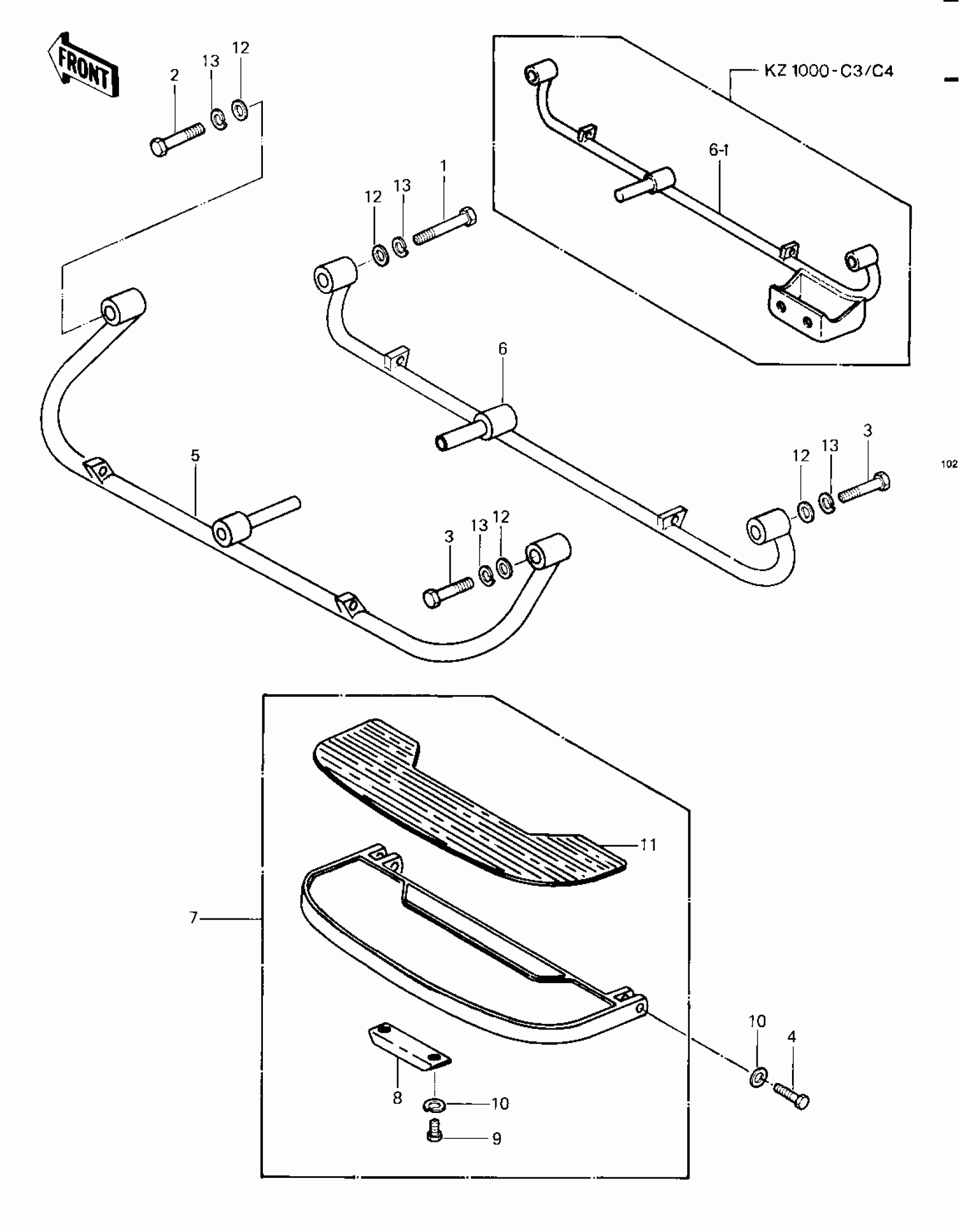

Kawasaki Police 1000 FOOTRESTS ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

BOLT,FLANGED,10X70

92001-1618

$8.23

2

BOLT,HEX HEAD,10X50

92001-1254

Unavailable

3

BOLT,HEX HEAD,10X60

113B1060

Unavailable

4

BOLT-UPSET

112G0645

Unavailable

5

BRKT,FOOTBOARD, LH

34003-1005

$151.06

6-1

BRACKET,FOOTBOARD,R.

34003-4003

$160.23

7

FOOTBOARD ASSY.

34027-1002

$188.06

8

PLATE,FOOTBOAD

13169-1011

$16.32

9

BOLT,6X10

112G0610

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

DAMPER,FOOTBOAD

92075-4002

Unavailable

12

WASHER-PLAIN,10MM

411B1000

Unavailable

13

WASHER SPRING 10MM

461F1000

Unavailable
