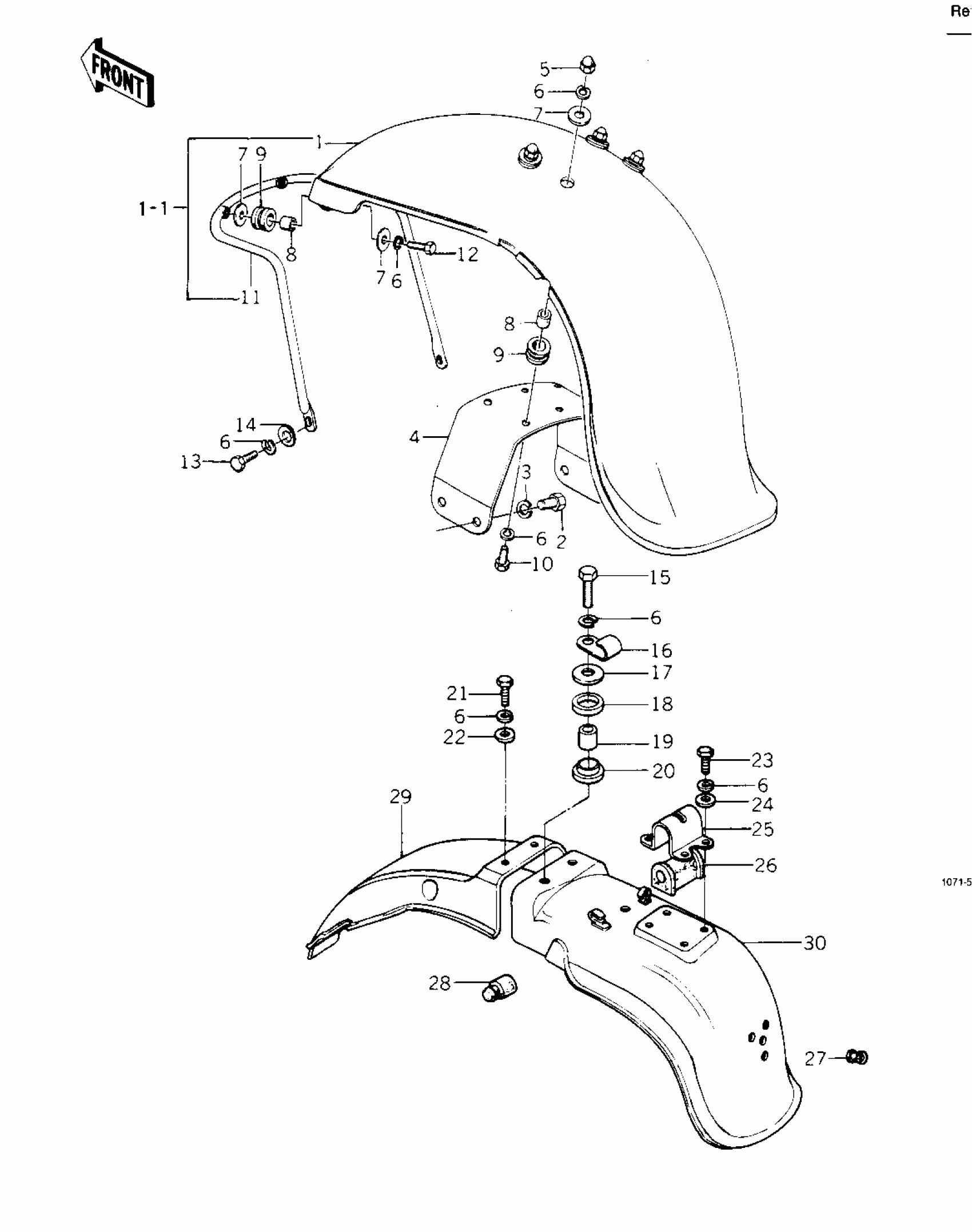

Kawasaki Police 1000 FENDERS ('78 C1/C1A) Diagram

#

Description
Price

1

FENDER-ASSY,FR.WHITE

35001-5501

$213.32

1

FENDER-FR,WHITE

35004-4004-8C

$144.79

1-1

FENDER-ASSY,FR.WHITE

35001-5501

$213.32

2

BOLT,8X20

115G0820

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

BRACE,FR FENDER

35009-1001

$54.99

5

NUT-6MM

322N0600

$1.00

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WASHER,6.5X20X1.6,WHITE

92022-193

$4.42

8

COLLAR 6.8X10X10.5

92027-120

$3.97

9

GROMMET

92071-046

Unavailable

10

BOLT-UPSET

112G0625

Unavailable

11

STAY,FRONT FENDER

35011-1003

$60.83

11

STAY,FR FENDER,FR

35011-4001

$149.46

12

BOLT 6X22

112B0622

Unavailable

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

15

BOLT-UPSET

112G0625

Unavailable

16

CLAMP,WIRING HARNESS

21126-008

$3.75

17

WASHER,7X24X1.6

92022-228

$3.12

18

DAMPER,FEMALE

92075-175

$3.49

19

COLLAR,6.8X10X12

92027-162

$5.21

20

RUBBER,FENDER COVER

92075-174

$3.80

21

BOLT-UPSET 6X14

112B0614

Unavailable

22

WASHER PLAIN

92022-024

$2.92

23

BOLT-UPSET,6X16

112G0616

Unavailable

24

WASHER PLAIN 6MM

411B0600

Unavailable

25

BRACKET,REAR FENDER

35026-006

Unavailable

26

DAMPER RUBBER,RR FEN

92075-132

Unavailable

27

GROMMET,10MM

92071-019

$3.10

28

DAMPER RUBBER,RR FEN

92075-135

$5.10

29

FENDER-RR

35022-154

Unavailable

30

FENDER-RR,WHITE

35022-136-8C

Unavailable
