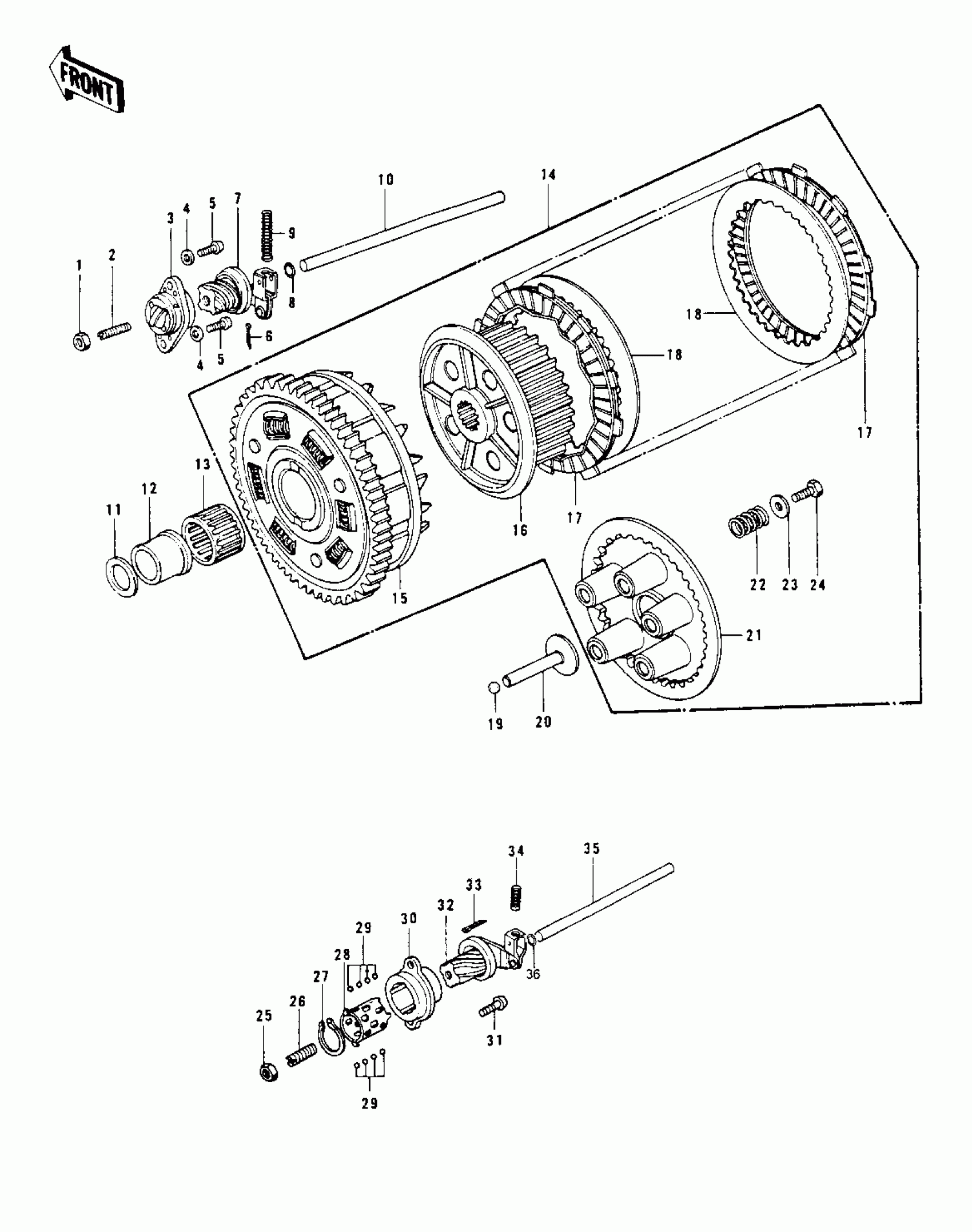

Kawasaki Police 1000 CLUTCH ('78 C1/C1A) Diagram

#

Description
Price

1

NUT 8MM

315B0800

$0.69

2

SCREW,SLOTTED,8X25

92014-014

Unavailable

3

OUTER,CLUTCH RELEASE

13118-007

Unavailable

4

WASHER PLAIN 6MM

411B0600

Unavailable

5

SCREW-PAN-CROS,6X16

220B0616

Unavailable

6

PIN-COTTER,1.6X15

550D1615

$2.08

7

INNER,CLUTCH RELEASE

13102-013

Unavailable

8

O RING,7MM

670B1507

$1.14

9

SPRING,CLUTCH RELEASE

92081-069

$5.98

10

PUSH ROD,CLUTCH

13116-021

Unavailable

11

SPACER,25.5X47X2.5

92026-022

$9.58

12

BUSHING,CLUTCH

92028-135

Unavailable

13

NUT,20MM

92016-028

$7.86

14

CLUTCH-ASSY

13081-1014

Unavailable

15

CLUTCH-ASSY

13081-1367

Unavailable

16

CLUTCH-ASSY

13081-1367

Unavailable

17

PLATE,CLUTCH FRICTION

13088-030

$24.04

18

PLATE,CLUTCH STEEL

13089-022

Unavailable

19

BALL-STEEL,3/8"

600A1200

$1.32

20

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

21

PLATE,CLUTCH SPRING

13187-006

Unavailable

22

SPRING,CLUTCH

92081-1033

$5.88

23

HOLDER,CLUTCH SPRING

13091-011

$5.27

24

BOLT-UPSET

112G0618

Unavailable

25

NUT-HEX-SMALL,8MM

318B0800

$0.63

26

SCREW,SLOTTED,8X25

92014-014

Unavailable

27

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

28

RETAINER

13197-004

Unavailable

29

BALL,STEEL,1/8"

600A0400

$1.66

30

OUTER CLUTCH RELEASE

13118-001

Unavailable

31

SCREW-PAN-CROS,6X16

220B0616

Unavailable

32

INNER,CLUTCH RELEASE

13102-019

Unavailable

33

PIN-COTTER,1.6X15

550D1615

$2.08

34

SPRING,CLUTCH RELEASE

92081-069

$5.98

35

PUSH ROD,CLUTCH

13116-021

Unavailable

36

O RING,7MM

670B1507

$1.14
