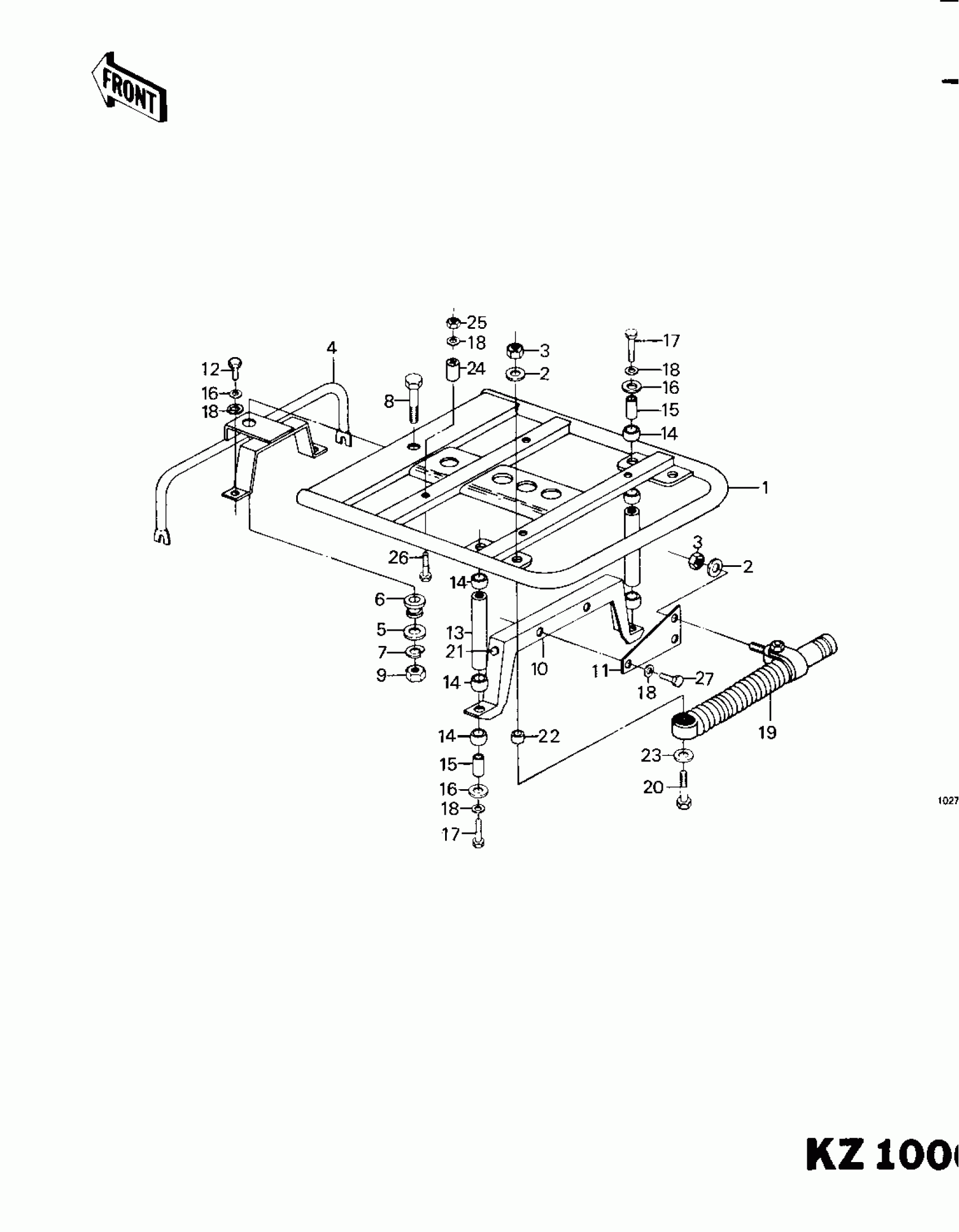

Kawasaki Police 1000 CARRIER (KZ1000-C2) Diagram

#

Description
Price

1

CARRIER

53029-4001

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

NUT,8MM

311B0800

Unavailable

4

BRACKET

23062-4001

Unavailable

5

WASHER

92022-4002

$13.03

6

DAMPER,CARRIER

92075-4006

$29.31

7

WASHER-SPRING,12MM

461F1200

Unavailable

8

BOLT,HEX HEAD,12X55

92001-1262

Unavailable

9

NUT-HEX-FINE

314B1200

Unavailable

10

BRACKET

11034-4016

Unavailable

11

BRACKET

32037-4004

$5.03

12

BOLT-UPSET,6X16

112G0616

Unavailable

13

ARM

21083-4001

$6.66

14

DAMPER RUBB SIDE STND

92075-031

$8.46

15

COLLAR-SILENCER

92027-149

Unavailable

16

WASHER,6.5X20X1.6

92022-125

$1.25

17

BOLT,HEX HEAD,6X50

110G0650

Unavailable

18

WASHER SPRING 6MM

461F0600

Unavailable

19

SHOCKABSORBER,RR

45014-4005

Unavailable

20

BOLT-SMALL-UPSET

115G0845

Unavailable

21

DAMPER RUBBER

92075-155

Unavailable

22

COLLAR FRONT HUB R.H

41069-002

Unavailable

23

WASHER PLAIN 8MM

410B0800

Unavailable

24

*** N.L.A.*** (Canada)

92027-1027

$2.73

25

NUT-HEX,6MM

311G0600

Unavailable

26

BOLT-UPSET,6X35

112G0635

Unavailable

27

BOLT-UPSET,6X20

112G0620

Unavailable
