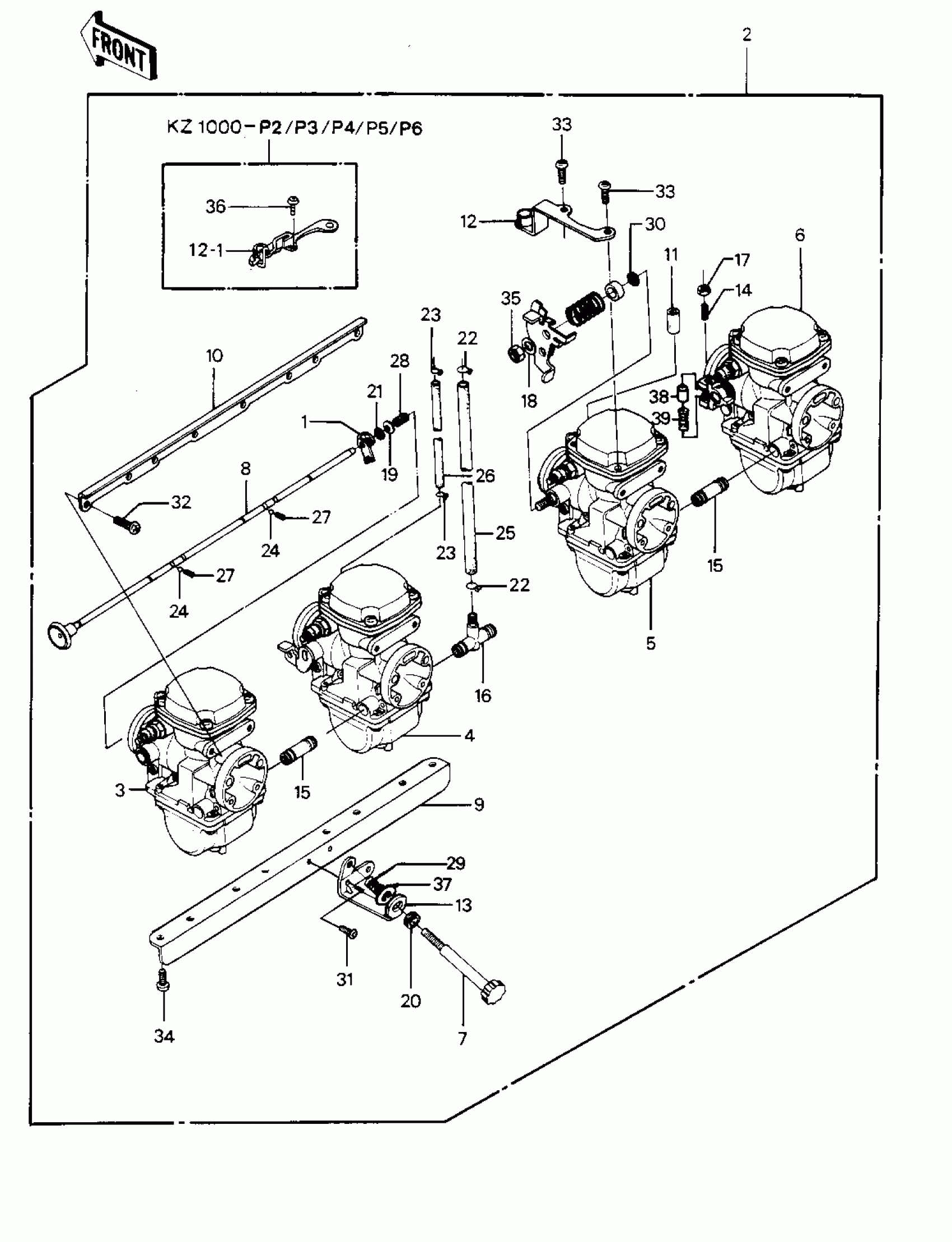

Kawasaki Police 1000 CARBURETOR ASSY Diagram

#

Description
Price

1

LEVER,CHOKE

13168-1091

Unavailable

2

CARBURETOR ASSY

16001-1358

$1,297.14

2

CARBURETOR

16001-1724

$2,812.83

2

CARBURETOR-ASSY

15001-1209

$3,263.75

3

CARBURETOR,LH,OUTSIDE

16001-1436

$521.25

3

CARBURETOR,LH,OUTSIDE

16001-1725

$505.96

3

CARBURETOR,LH,OUTSIDE

15002-1258

$972.79

4

CARBURETOR,LH,INSIDE

16001-1437

$438.41

4

CARBURETOR,LH,INSIDE

16001-1726

$505.96

4

CARBURETOR,LH,INSIDE

15002-1259

$880.83

5

CARBURETOR,RH,INSIDE

16001-1438

$438.41

5

CARBURETOR,RH,INSIDE

16001-1727

$505.96

5

CARBURETOR,RH,INSIDE

15002-1260

Unavailable

6

CARBURETOR,RH,OUTSIDE

16001-1439

$482.73

6

CARBURETOR,RH,OUTSIDE

16001-1728

$505.96

6

CARBURETOR,RH,OUTSIDE

15002-1261

$744.52

7

SCREW-THROTTLE STOP

16021-1035

$31.25

7

SCREW-THROTTLE STOP

16021-1103

$30.39

8

SHAFT-CARBURETOR,CHOKE

16041-1024

Unavailable

9

HOLDER-CARBURETOR,LWR

16065-1043

$87.88

10

HOLDER-CARBURETOR,UPP

16065-1044

$59.44

11

CAP-END

39031-1009

Unavailable

11

PLUG,12X25

92068-006

$3.39

12

BRACKET-ASSY,THROTTLE

39184-1006

Unavailable

12-1

BRACKET-ASSY,THROTTLE CABLE

39184-1013

$59.91

13

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

$37.90

14

BOLT,ADJUSTING

92001-1447

Unavailable

15

FITTING,FUEL,I-TYPE

92005-1035

Unavailable

16

FITTING,FUEL,T-TYPE

92005-1036

$68.40

17

NUT,THROTTLE VALVE ADJUSTING

92015-1119

Unavailable

18

WASHER,LOCK

92022-1191

$4.41

19

WASHER,SPRING

92022-1255

$5.12

20

BUSHING

92028-1071

Unavailable

20

BUSHING,IDLING ADJUSTER

92028-1266

$11.83

21

RING-SNAP,E-TYPE

92033-1066

Unavailable

22

CLAMP,TUBE

92037-1184

$1.27

22

CLAMP,TUBE

92037-1184

$1.27

23

CLAMP,BREATHER TUBE

92037-174

$1.64

24

BALL,STEEL,1/8"

600A0400

$1.66

25

TUBE,7.5X12.5X250

92059-1187

$45.42

26

TUBE,5X9X150

92059-1188

$19.00

27

SPRING,SHAFT STOP

92081-1260

Unavailable

28

SPRING,CHOKE SHAFT

92081-1364

$5.08

29

SPRING,THROTTLE STOP SCREW

92081-1377

$4.51

30

OIL SEAL

92093-1027

Unavailable

31

SCREW PAN HEAD 5X8

220B0508

Unavailable

32

SCREW PAN HEAD 5X10

220B0510

Unavailable

33

SCREW-PAN-CROS

220B0514

Unavailable

34

SCREW-PAN-CROS,6X14

220B0614

$1.32

35

NUT,8 M/M

315G0800

$2.56

36

SCREW-PAN-CROS

220B0512

$0.51

37

WASHER,THROTTLE STOP SCREW

92022-1491

$4.08

38

PIN,THROTTLE VALVE ADJUST

92043-1079

$5.58

39

SPRING,THROTTLE VALVE ADJUST

92081-1259

$4.68
