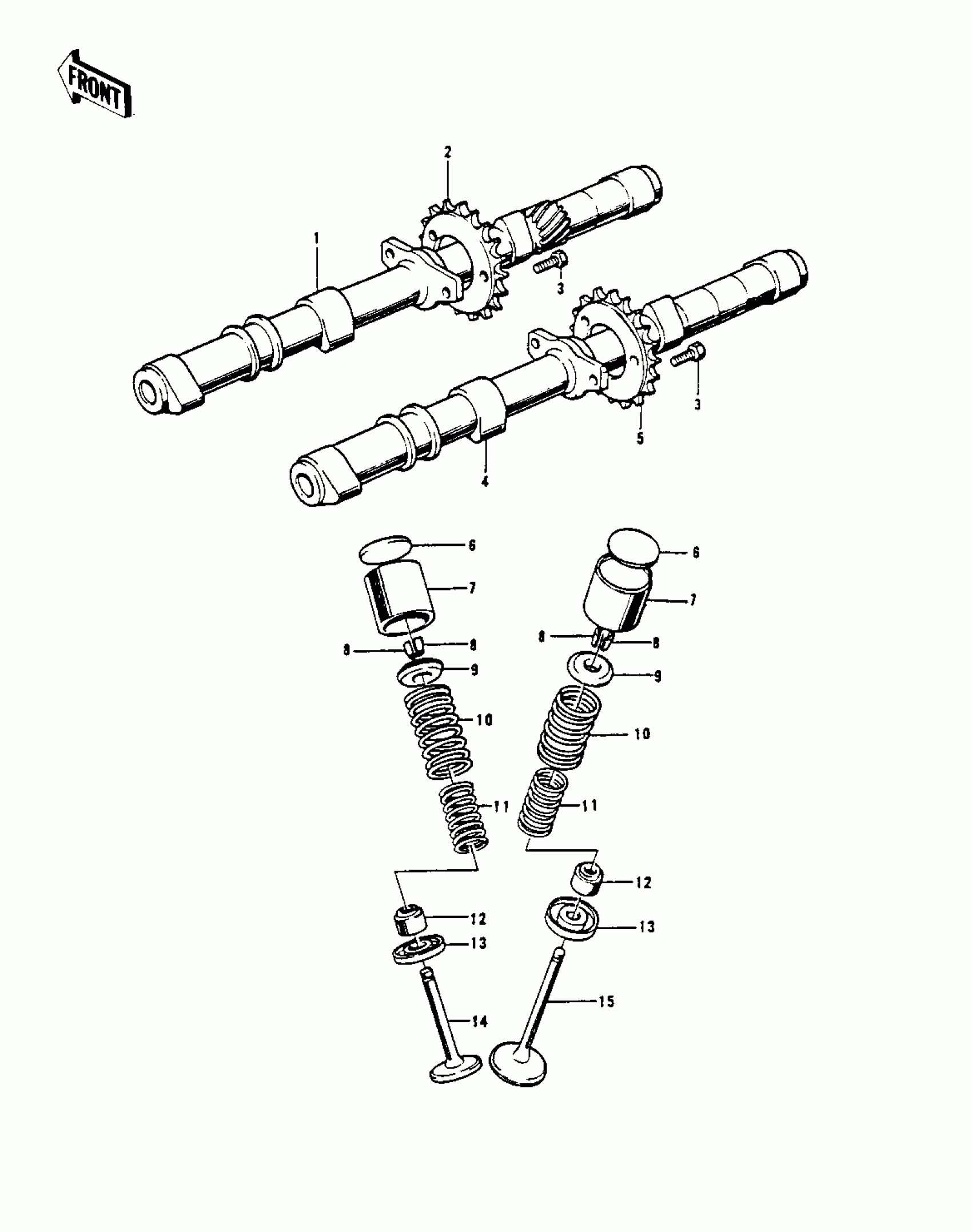

Kawasaki Police 1000 CAMSHAFTS/VALVES ('78 C1/C1A) Diagram

#

Description
Price

1

CAMSHAFT,EXHAUST

12044-015

Unavailable

2

SPROCKET,CAM SHAFT EX

12046-002

Unavailable

3

BOLT,FLANGED,6X11

92003-208

$3.43

4

CAMSHAFT,INLET

12044-014

Unavailable

5

SPROCKET,CAM SHAFT IN

12046-001

Unavailable

6

SHIM,T=2.00

12037-001

$18.02

6

SHIM,T=2.05

12037-002

$18.02

6

SHIM,T=2.10

12037-003

$18.02

6

SHIM,T=2.15

12037-004

$18.02

6

SHIM,T=2.20

12037-005

$18.02

6

SHIM,T=2.25

12037-006

$18.02

6

SHIM,T=2.30

12037-007

Unavailable

6

SHIM,T=2.35

12037-008

$18.02

6

SHIM,T=2.40

12037-009

$18.02

6

SHIM,T=2.45

12037-010

$18.02

6

SHIM,T=2.50

12037-011

$18.02

6

SHIM,T=2.55

12037-012

$18.02

6

SHIM,T=2.60

12037-013

$18.02

6

SHIM,T=2.65

12037-014

$18.02

6

SHIM,T=2.70

12037-015

$18.02

6

SHIM,T=2.75

12037-016

$18.02

6

SHIM,T=2.80

12037-017

$15.15

6

SHIM,T=2.85

12037-018

$18.02

6

SHIM,T=2.90

12037-019

$18.02

6

SHIM,T=2.95

12037-020

$18.02

6

SHIM,T=3.00

12037-021

$15.15

6

SHIM,T=3.05

12037-022

$18.02

6

SHIM,T=3.10

12037-023

$18.02

6

SHIM,T=3.15

12037-024

$18.02

6

SHIM,T=3.20

12037-025

$18.02

7

TAPPET

12032-005

Unavailable

8

COLLET,RETAINER

12011-004

$4.34

9

RETAINER-VALVE SPRING

12009-005

$10.37

10

SPRING-ENGINE VALVE,OUTER

12007-012

$23.51

11

SPRING-ENGINE VALVE,INNER

12007-011

Unavailable

12

SEAL-OIL,RV37129.5

92049-016

$14.42

13

SEAT-SPRING,VALVE

16007-1024

$5.15

14

VALVE,EXHAUST

12005-1009

$163.67

15

VALVE,INTAKE

12004-1010

$112.73
